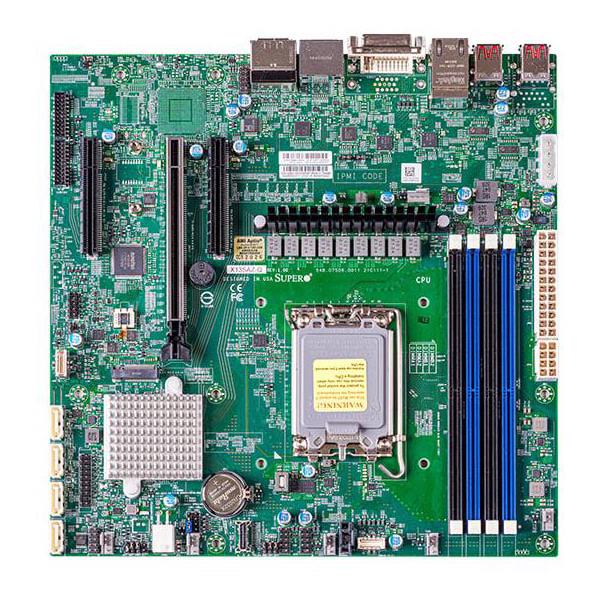

| Main Specifications |
| Device Type | Motherboard |
| Form Factor | Micro-ATX |
| Dimensions (WxDxH) | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| Compatible Processors | Intel Core 3/5/7 (Series 2) and 14th/13th/12th Gen Core i3/i5/i7/i9 Processors |
| Compatible Socket | Single L0 (LGA-1700) |
| Core Count | Up to 24C |
| System Memory |
| Memory Capacity | Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots |
| DIMM Sizes | UDIMM:4GB, 8GB, 16GB, 32GB |
| On-Board Devices |
| Chipset | Intel Q670E |
| SATA/SAS | 4 SATA (6Gbps) via Intel Q670E; RAID 0/1/5/10 support |
| Network Controllers | Dual LAN with Intel Ethernet i225LM |
| Audio | Rear Audio, ALC 888S HD Audio |
| TPM | 1 TPM 2.0 onboard |
| Input / Output |
| USB(s) | 4 USB 2.0 port(s) (header), 4 USB 3.2 Gen2 Type-A port(s) (Rear), 2 USB 3.2 Gen2 port(s) (Header), 2 USB 3.2 Gen1 port(s) (Header) |
| Video Output | 1 VGA port(s), 1 HDMI 2.0b port(s), 1 DVI - D port(s), 2 Display Port port(s) |
| Serial Port / Headers | 2 COM port(s) (header) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 slot, 2 PCIe 4.0 x4 (in x8) slots |
| M.2 | 1 M.2 PCIe 4.0 x4 slot (M-key 2280/22110) |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | SMBIOS 3.0 or later, UEFI 2.7, PCI FW 3.0, ACPI 6.1, RTC (Real Time Clock) Wakeup |
| Management |
| Software | Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New |
| System Management Software | Wake-on-LAN, Watchdog |
| Power Configurations | ACPI Power Management, ATX Power connector, +12V DC Power Input |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +1.35V,+1.5V,+1.8V,+12V,+3.3V,+5V,+5V standby,1.05 (PCH),5 fans with tachometer status monitoring,VBAT |
| LED | Power LED |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment |
| FAN | 6x 4-pin fan headers (up to 6 fans) |
| Other Features | 12V DC or ATX Power Source, ACPI power management, ATX power connector, Chassis intrusion detection, M.2 NGFF connector, RoHS |
| Environmental |
| Operating Environment | Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Relative Humidity: 10% to 85% (non-condensing) |
| Operating Temperature: 0°C to 60°C (32°F to 140°F ) |
| Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) |
| Parts List |
| I/O Cables | 2x CBL-0044L |
| I/O Shield | 1x MCP-260-00177-0N |
