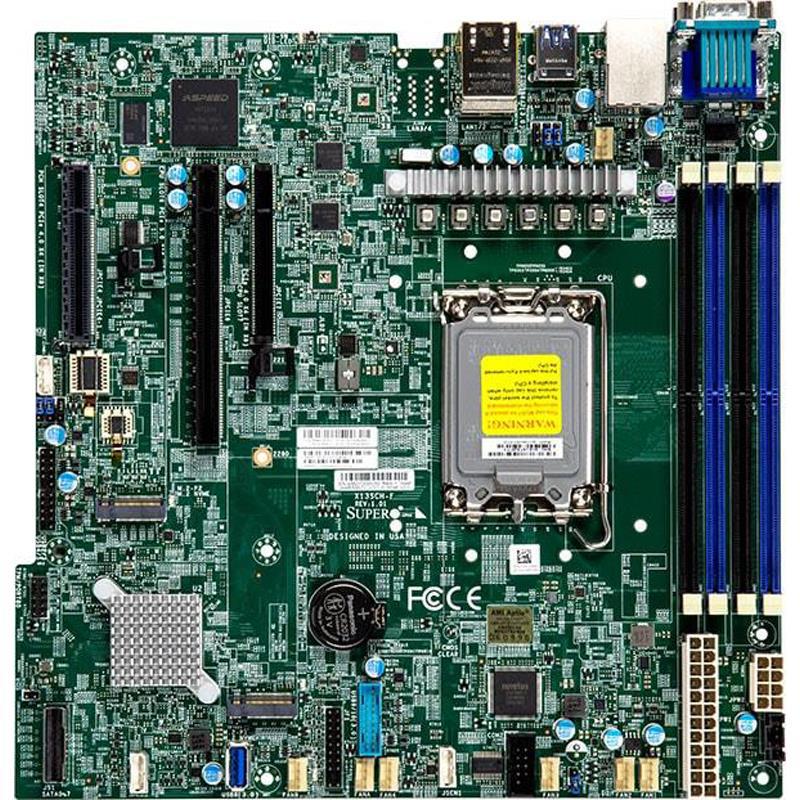

| Main Specifications |
| Device Type | Mainstream motherboard |
| Form Factor | Micro-ATX |
| Dimensions (WxDxH) | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| Compatible Processors | Intel Xeon 6300-series/ E-2400/Pentium Processor |
| BIOS 2.4 or above is required to support Intel Xeon 6377P |
| Compatible Socket | Single Socket V0 (LGA-1700) |
| Core Count | Up to 12C |
| Note | Supports up to 95W TDP CPUs |
| System Memory |
| Memory Capacity | Slot Count: 4 DIMM Slots |
| Max Memory (2DPC): Up to 128GB 4000MT/s ECC DDR5 UDIMM |
| DIMM Sizes | UDIMM:8GB, 16GB, 32GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel C266 |
| SATA/SAS | 8 SATA (6Gbps) via Intel C266, RAID 0/1/5/10 support, via SlimSAS |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with 1GbE with Intel I210 |
| TPM | 1 TPM 2.0 header |
| Input / Output |
| LAN | 2 RJ45 1 GbE LAN port(s), 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1) |
| USB(s) | 2 USB 2.0 port(s) (rear), 4 USB 2.0 port(s) (header), 2 USB 3.2 Gen1 port(s) (Header), 2 USB 3.2 Gen1 port(s) (Rear), 1 USB 3.2 Gen1 Type-A port(s) |
| Video Output | 1 Aspeed AST2600 BMC port(s), 1 VGA D-Sub Connector port(s) |
| Serial Port / Headers | 1 COM port(s) (header), 1 COM port(s) (rear) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 slot(s) |
| 2 PCIe 4.0 x4 (in x8) slots |
| M.2 | 2 M.2 PCIe 4.0 x4 slots (M-key 2280/22110) |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | Plug and Play (PnP), ACPI 6.4, PCI FW 3.3, SMBIOS 3.5, UEFI 2.8 |
| Management |
| Software | SuperCloud Composer (SCC), Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software, IPMI Utilities |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +12V,+3.3V,+3.3V standby,+5V,+5V standby,7-fan status,Chassis intrusion header,Chipset voltage,Memory Voltages,Monitors CPU voltages,Supports system management utility,System level control,VBAT |
| LED | CPU/system overheat LED, UID/remote UID LED |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI |
| FAN | 7x 4-pin fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Fan speed control, Overheat LED indication |
| Other Features | ACPI power management, Chassis intrusion header, Control of power-on for recovery from AC power loss, M.2 NGFF connector, UID, WOL |
| Environmental |
| Operating Environment | Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) |
| Operating Temperature: -5°C to 55°C (23°F to 131°F ) |
| Operating Relative Humidity: 8% to 80% |
| Non-operating Relative Humidity: 8% to 90% |
| Parts List |
| I/O Shield | 1x MCP-260-00164-0N |
| I/O Cables | 1x CBL-SAST-1275A-100 |
