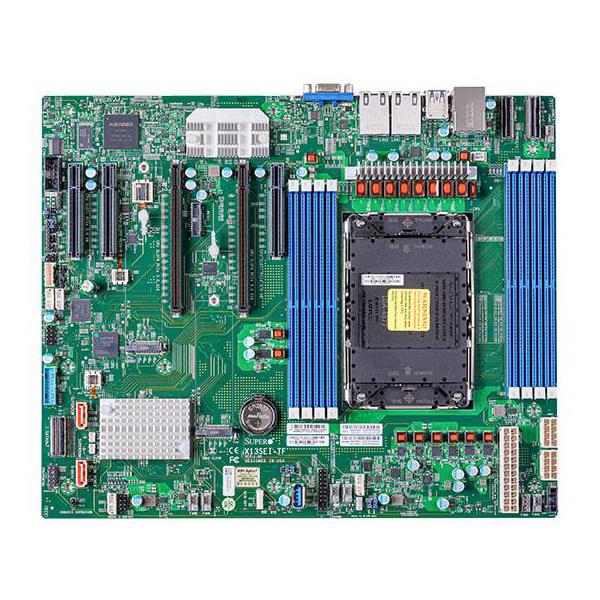

| Main Specifications |
| Device Type | Mainstream motherboard |
| Form Factor | E-ATX |
| Dimensions (WxDxH) | 12.3" x 10.1" (31.24cm x 25.65cm) |
| Processor |
| Compatible Processors | 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors |
| BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors |
| Compatible Socket | Single Socket E (LGA-4677) |
| Core Count | Up to 64C |
| Note | Supports up to 350W TDP CPUs |
| System Memory |
| Memory Capacity | Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots |
| DIMM Sizes | RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB |
| 3DS RDIMM:128GB, 256GB |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel C741 |
| SATA/SAS | 10 SATA (6Gbps) via Intel C741, RAID 0/1/5/10 support |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with 10GBase-T with Intel X550 |
| TPM | 1 TPM 2.0 header |
| Input / Output |
| LAN | 2 RJ45 10 GbE LAN port(s), 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB(s) | 2 USB 2.0 port(s) (rear), 2 USB 3.2 Gen1 port(s) (Rear), 1 USB 3.2 Gen1 Type-A port(s), 1 USB 3.2 Gen1 port(s) (Header) |
| Video Output | 1 Aspeed AST2600 BMC port(s), 1 VGA D-Sub Connector port(s) |
| Serial Port / Headers | 1 COM port(s) (header) |
| DOM | 2 SATA DOM (Disk on Module) port(s) with power connector support |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x8 via MCIO Connector slots |
| 2 PCIe 5.0 x16 slots |
| 3 PCIe 5.0 x8 slots |
| M.2 | 2 M.2 PCIe 5.0 x4 slots (M-key 2280/22110) |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | ACPI 6.4, SMBIOS 3.5, UEFI 2.8 or above |
| Software |
| Software | SuperCloud Composer (SCC), Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software, IPMI Utilities |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +12V,+3.3V,+5V,+5V standby,7-fan status,Chassis intrusion header,Chipset voltage,Memory Voltages,Monitors CPU voltages,Supports system management utility,System level control,VBAT |
| LED | CPU/system overheat LED, UID/remote UID LED |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI, Thermal monitor 2 (TM2) support |
| FAN | 7x 4-pin fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Fan speed control, Overheat LED indication |
| Other Features | ACPI power management, Chassis intrusion detection, Control of power-on for recovery from AC power loss, M.2 NGFF connector, Node manager support, UID, WOL |
| Environmental |
| Operating Environment | Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) |
| Operating Temperature: -5°C to 55°C (23°F to 131°F ) |
| Operating Relative Humidity: 8% to 80% |
| Non-operating Relative Humidity: 8% to 90% |
| Parts List |
| CPU carrier | 1x SKT-1333L-0000-FXC, 1x SKT-1424L-001B-FXC |
| I/O Shield | 1x MCP-260-00042-1N |
| I/O Cables | 2x CBL-0044L |
| Optional Parts List |
| Optional Heat Sink | 1x SNK-P0088AP4, 1x SNK-P0090AP4, 1x SNK-P0087P, 1x SNK-P0088P |
| Optional TPM | AOM-TPM-9670V |
