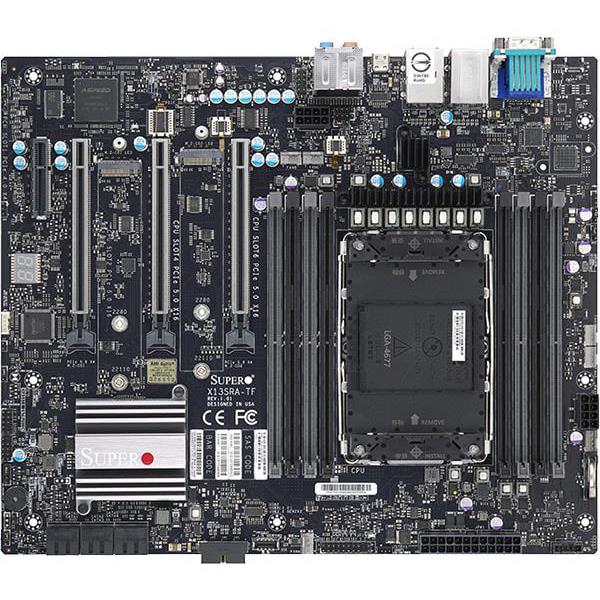

Supermicro X13SRA-TF-B Motherboard CEB Single Socket LGA-4677 (Socket E) Intel Xeon W-3400 Series and Xeon W-2400 Series Processors - Bulk

Supermicro X13SRA-TF-B Motherboard CEB Single Socket LGA-4677 (Socket E) Intel Xeon W-3400 Series and Xeon W-2400 Series Processors - Bulk

  • Up to 2TB DDR5-4800MHz RDIMM in 8 DIMM slots

  • On-Board: Intel W790 Controller for 6 SATA3 (6 Gbps) Ports with RAID

  • Supports Intel Xeon W-3400 Series and Xeon W-2400 Series Processors

  • LAN ports: 1x 1GbE LAN port (shared IPMI port), 1x 10GbE RJ45 LAN Port

Motherboard CEB, Single Socket LGA-4677 (Socket E) Intel Xeon W-3400 Series and Xeon W-2400 Series Processors (Up to 56-Core). Up to 2TB DDR5-4800MHz RDIMM in 8 DIMM slots - On-Board: Intel W790 Controller for 6 SATA3 (6 Gbps) Ports, RAID 0, 1, 5, 10, LAN ports: 1x 1GbE LAN port (shared IPMI port), 1x 10GbE RJ45 LAN Port, Includes 1 PCIe 4.0 x4, 3 PCIe 5.0 x16, Two M.2 Form Factor: 22110, 2280 Key: M-Key - (MBD-X13SRA-TF-B)

$ 879.50$ 879.50879.5USD

$ 879.50

Option not available

OutOfStock
3 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. Intel Xeon W-3400 series, W-2400 series, W-3500 series, W-2500 series processors; single-socket Socket E (LGA-4677) supported, Up to 60 CPU cores and a thermal design power (TDP) of up to 385W.
    2. Intel W790
    3. Up to 2TB RDIMM 3DS, 512GB ECC RDIMM; DDR5-4800MT/s (1DPC)/4400MT/s (2DPC), in 8 DIMM slots
    4. 3 PCIe 5.0 x16 Slots, support up to 3 Single-Width, 2 Double-Width, or 2 Triple-Width GPU cards; 1 PCIe 4.0 x4 Slots
    5. M.2 Interface: 2 PCIe 5.0 x4 (Software RAID 0,1); M.2 Form Factor:  2280/22110; M.2 Key: M-Socket (w/o heat sink)
    6. 1GbE LAN port with Intel Ethernet Controller I210-AT10GbE LAN with Marvell AQC113
    7. 6 SATA 3 (6Gb, RAID 0, 1, 5, 10)
    8. IPMI Supported
    9. Overclocking Supported (optional)

    Extra Specifications for Supermicro X13SRA-TF-B Motherboard CEB Single Socket LGA-4677 (Socket E) Intel Xeon W-3400 Series and Xeon W-2400 Series Processors - Bulk

    Main Specifications
    Device TypeMotherboard
    Form FactorCEB
    Dimensions (WxDxH)12" x 10" (30.48cm x 25.4cm)
    Processor
    Compatible ProcessorsIntel Xeon W-3400, W-2400, W-3500 and W-2500 Series Processors
    Compatible SocketSingle Socket E (LGA-4677)
    Core CountUp to 60C
    NoteSupports up to 385W TDP CPUs
    System Memory
    Memory CapacitySlot Count: 8 DIMM Slots, Max Memory (2DPC): Up to 1TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
    Memory Voltage1.1V
    On-Board Devices
    ChipsetIntel W790
    SATA/SAS6 SATA (6Gbps) via Intel W790, RAID 0/ 1/ 5/ 10 support
    Network ControllersSingle LAN with Intel Ethernet Controller I210-AT, 1x 1GbE LAN Port with Intel i210AT, share with IPMI
    Single LAN with Marvell AQC113, 1x 10GbE RJ45 LAN port with AQC113C
    AudioALC 888S HD Audio
    Input / Output
    USB(s)2 USB 2.0 port(s) (header), 1 USB 3.2 Gen2x2 Type-C port(s) (Rear), 1 USB 3.2 Gen2x2 port(s) (Header), 4 USB 3.2 Gen2x1 Type-A port(s) (Rear), 2 USB 3.2 Gen1x1 port(s) (Header)
    Video Output1 VGA port(s)
    Serial Port / Headers1 COM port(s) (rear)
    Expansion / Connectivity
    Expansion Slots Total (Free)3 PCIe 5.0 x16 slots
    1 PCIe 4.0 x4 Slot
    M.22 M.2 PCIe 5.0 x4 slots (M-key 2280/22110; RAID 0/1)
    System BIOS
    BIOS TypeAMI 32MB SPI Flash
    BIOS FeaturesACPI 6.0, Plug and Play (PnP), SMBIOS 3.0 or later, BIOS rescue hot keys, Riser card auto-detection support
    Software
    SoftwareSuperCloud Composer (SCC), Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), Plug-ins for 3rd Party Software, IPMI Utilities, SAA (limited support)
    Management
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management, Power button override mechanism
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    FAN5x 4-pin fan headers (up to 5 fans)
    Parts List
    I/O Cables1x CBL-PWEX-0663, 2x CBL-0044L
    I/O Shield1x MCP-260-00183-0B
    CPU carrier1x SKT-1333L-0001-LTS, 1x SKT-1424L-001B-LTS
    Optional Parts List
    Optional Heat Sink1x SNK-C0156L
    Optional TPM1x AOM-TPM-9670V, 1x AOM-TPM-9672V

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
