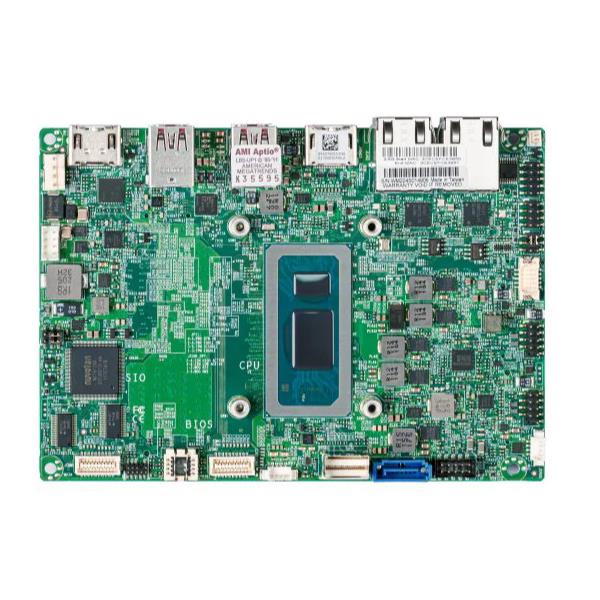

| Main Specifications |
| Device Type | Motherboard |
| Form Factor | 3.5" SBC |
| Dimensions (WxDxH) | 5.7" x 4" (14.6cm x 10.16cm) |
| Processor |
| Embedded Processor | 13th Generation Intel Core i7-1370PE Processor |
| Core Count | Up to 14C/20T, Up to 24MB Cache |
| Note | Supports up to 28W TDP CPUs |
| System Memory |
| Memory Capacity | Slot Count: 2 DIMM Slots |
| Max Memory (2DPC): Up to 64GB 4800MT/s non-ECC DDR5 SO-DIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | System on Chip |
| SATA/SAS | 1 SATA (6Gbps) via Intel Mobile Chipset |
| Graphics | 1 Intel Iris Xe Graphics port |
| Network Controllers | Dual LAN with Intel Ethernet Controller I226-IT, 2.5G, TSN, industrial grade |
| Audio | Line Out, Mic in, ALC 888S HD Audio |
| TPM | 1 TPM Chip |
| Others | 1 8-bit GPIO header port(s), 1 SMBus header port(s), 1 Speaker w/ 3W amp. port(s) |
| Input / Output |
| LAN | 2 RJ45 2.5 GbE LAN port(s) (Intel Ethernet Controller I226-IT) |
| USB(s) | 4 USB 2.0 port(s) (header), 2 USB 3.2 Gen2x1 Type-C port(s) (Rear), 1 USB 3.2 Gen1x1 port(s) (Header), 2 USB 3.2 Gen2x1 Type-A port(s) (Rear) |
| Video Output | 2 DisplayPort 1.4a port(s) (Rear), 1 HDMI 1.4 port(s) (Rear), 1 HDMI 2.0b port(s) (Rear) |
| Serial Port / Headers | 4 COM port(s) (header) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 4.0 x4 (in x4) SlimSAS slot |
| M.2 | 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2242/2280) |
| 1 M.2 PCIe 3.0 x1 CNVi slot (E-key 2230; USB 2.0) |
| 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280; USB 3.0; nano SIM holder) |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | ACPI 6.4, SMBIOS 3.5 or later, RTC (Real Time Clock) Wakeup, PCI FW 3.3, UEFI 2.9 |
| Management |
| Software | Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New |
| System Management Software | Watchdog, SuperDoctor 5, vPro, AMT |
| Power Configurations | ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +1.05V,+12V,+3.3V,+3.3V standby,+5V,1.8V standby,VBAT,Vcore,VDD2 (VDIMM) |
| LED | HDD activity LED, LAN activity LED, Power LED |
| Temperature | CPU temperature, CPU thermal trip support, PCH temperature, peripheral temperature, System temperature |
| FAN | 4x 4-pin fan headers (up to 4 fans) |
| Miscellaneous |
| Environmental Compliance | RoHS Compliant |
| Parts List |
| I/O Cables | 1x CBL-PWEX-1029 |
| Optional Parts List |
| Optional Cable | 1x CBL-PWEX-1110-15, 1x CBL-CUSB-0826, 1x CBL-SAST-1240A-85 |
| Optional Heatspreader | 1x MCP-350-00008-0N |
| Optional Power Adapter | 1x MCP-250-10137-0N |
