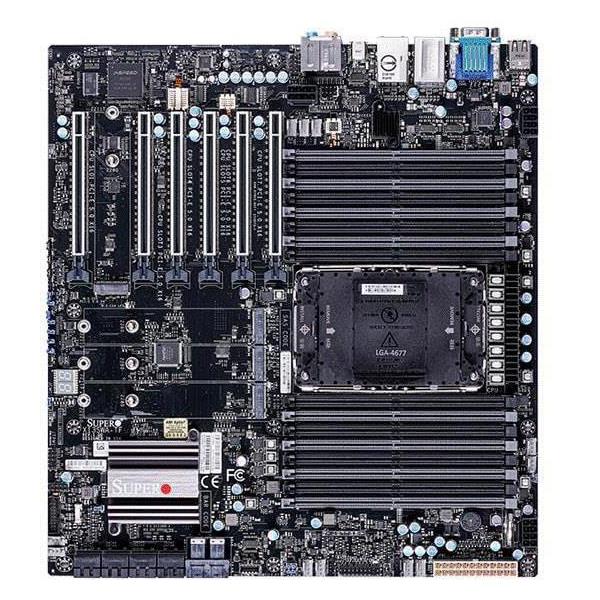

Supermicro X13SWA-TF-B Motherboard E-ATX Single Socket LGA-4677 (Socket E) Intel Xeon W-3400 and Xeon W-2400 Series Processors - Bulk

LAN port: 1GbE LAN Port, 10GbE LAN Port
On-Board: Intel W790 Controller For 8 SATA3 Ports With RAID
Includes 6 PCIe 5.0 x16, M.2 Form Factor: 22110, 2280 (Key: M-Key)
Support Single Intel Xeon W-3400 and Xeon W-2400 Series Processors

Motherboard E-ATX, Support Single Socket LGA-4677 (Socket E), Supporting Intel Xeon W-3400 and Xeon W-2400 Series Processors (Up to 56-Core). Up to 4TB DDR4-4800MHz RDIMM With Intel Xeon W-3400 Processor OR Up to 2TB, 512GB ECC RDIMM DDR5-4800MHz RDIMM With Intel Xeon W-2400 Processor in 16 DIMM slots, On-Board: Intel W790 Controller For 8 SATA3 Ports With RAID, LAN ports: 1GbE LAN Port, 10GbE LAN Port, Includes 6 PCIe 5.0 x16, M.2 Form Factor: 22110, 2280 (Key: M-Key), (MBD-X13SWA-TF-B)

1. Intel Xeon W-3400 series, W-2400 series, W-3500 series, W-2500 series processors, Up to 60 CPU cores and a thermal design power (TDP) of up to 385W.
2. Intel W790
3. Up to 4TB(W-3400/ W-3500)/2TB(W-2400/ W-2500) 3DS ECC RDIMM, 1TB(W-3400)/512GB(W-2400) ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), in 16 DIMM slots
4. M.2 Interface: 4 PCIe 5.0 x4 (Software RAID 0,1,5,10); M.2 Form Factor: 2280/22110; M.2 Key: M-Socket (w/o heat sink)
5. 2 U.2 PCIe 3.0 for NVMe 2.5" SSD drives (U.2-1, U.2-2; Software RAID 0,1)
6. Xeon W-3400/ W-3500 Series Processors: 6 PCIe 5.0 x16 Slots, support up to 6 Single Width/4 Double Width/2 Triple Width GPU cardsXeon W-2400/ W-2500 Series Processors:3 PCIe 5.0 x16 Slots, support up to 3 Single Width/3 Double Width/2 Triple Width GPU cards (slot 3/5/7)
7. 1GbE LAN port with Intel Ethernet Controller I210-AT10GbE LAN with Marvell AQC113C
8. 8 SATA 3 (6Gb, RAID 0, 1, 5, 10)
9. IPMI Supported
10. Overclocking Supported (optional)

Extra Specifications for Supermicro X13SWA-TF-B Motherboard E-ATX Single Socket LGA-4677 (Socket E) Intel Xeon W-3400 and Xeon W-2400 Series Processors - Bulk

Main Specifications
Device Type	Workstation motherboard
Form Factor	E-ATX
Dimensions (WxDxH)	13" x 12" (33.02cm x 30.48cm)
Processor
Compatible Processors	Intel Xeon W-3400, W-2400, W-3500 and W-2500 Series Processors
Compatible Socket	Single Socket E (LGA-4677)
Core Count	Up to 60C
Note	Supports up to 385W TDP CPUs
System Memory
Memory Capacity	Slot Count: 16 DIMM slots
	Max Memory (2DPC): Up to 2TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage	1.1V
On-Board Devices
SATA/SAS	8 SATA (6Gbps) via Intel W790, RAID 0/ 1/ 5/ 10 support
Network Controllers	Single LAN with Intel Ethernet Controller I210-AT
	Single LAN with Marvell AQC113C
	1x 10GbE RJ45 LAN port with AQC113C
	1x 1GbE LAN Port with Intel i210AT, share with IPMI
Audio	Realtek ALC888S 7.1 HD Audio
TPM	1 TPM 2.0 header
Input / Output
USB(s)	2 USB 2 port(s) (Header), 2 USB 3.2 Gen1 port(s) (Header), 1 USB 3.2 Gen2x2 Type-C port(s) (Rear), 1 USB 3.2 Gen2x2 port(s) (Header), 2 USB 2 Type-A port(s) (Rear), 4 USB 3.2 Gen2x1 Type-A port(s) (Rear)
Video Output	1 VGA port
Serial Port / Headers	1 COM port(s) (rear)
Expansion / Connectivity
Expansion Slots Total (Free)	6 PCIe 5.0 x16 slots
M.2	4 M.2 PCIe 5.0 x4 slots (M-key 2280/22110; RAID 0/1/5/10)
System BIOS
BIOS Type	AMI 32MB SPI Flash
BIOS Features	ACPI 6.0, Plug and Play (PnP), SMBIOS 3.0 or later, BIOS rescue hot keys, Riser card auto-detection support
Management
Software	SuperCloud Composer (SCC), Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), Plug-ins for 3rd Party Software, IPMI Utilities, SAA (limited support)
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Power supply monitoring
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
FAN	10x 4-pin fan headers (up to 10 fans)
Parts List
I/O Cables	1x CBL-PWEX-0663, 2x CBL-0044L
CPU carrier	1x SKT-1333L-0001-LTS, 1x SKT-1424L-001B-LTS
I/O Shield	1x MCP-260-00182-0B

Warranty:	3 years, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
