| Main Specifications |

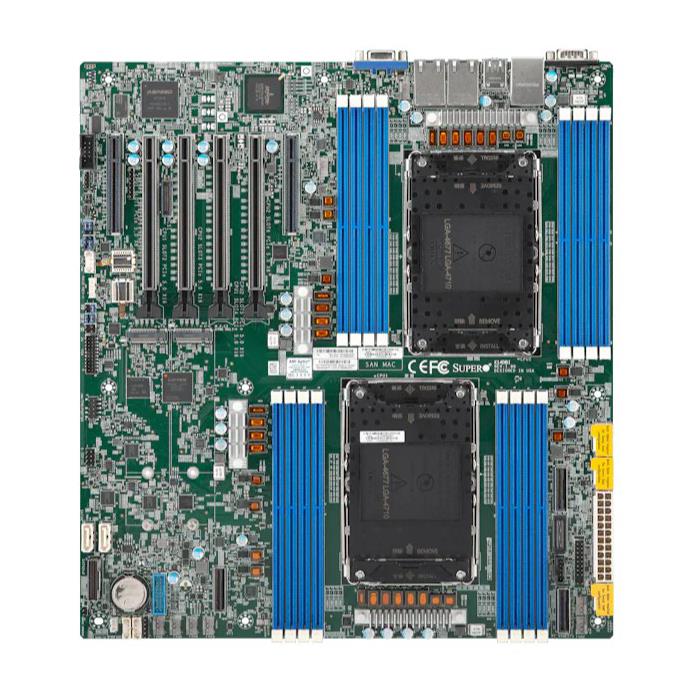

| Device Type | Mainstream motherboard |
| Form Factor | E-ATX |
| Dimensions (WxDxH) | 12.1" x 13.1" (30.73cm x 33.27cm) |
| Processor |
| Compatible Processors | Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| BIOS 1.2 or above is required to support Intel Xeon 6700/6500-series processors with P-cores |
| Compatible Socket | Dual Socket E2 (LGA-4710) |
| Core Count | P-cores: Up to 144C |
| Note | Supports up to 350W TDP CPUs |
| System Memory |
| Memory Capacity | Slot Count: 16 DIMM slots |
| Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only) |
| DIMM Sizes | MRDIMM (P-core only):32GB, 64GB |
| RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB |
| 3DS RDIMM:256GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with Broadcom BCM5720 1GBase-T |
| TPM | TPM Header |
| Others | 3 MCIO port(s) |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB(s) | 2 USB 3.1 Gen1 port(s) (Header), 4 USB 3.1 Gen1 port(s) (Rear) |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Serial Port / Headers | 1 COM port(s) (header), 1 COM port(s) (rear) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x8 slots |
| 4 PCIe 5.0 x16 slots |
| M.2 | 2 M.2 PCIe 5.0 x4 slots (M-key 2280/22110) |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | ACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9 |
| Software |
| Software | SuperCloud Composer (SCC), Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +12V,+3.3V,+3.3V standby,+5V,+5V standby,CPU temperature,CPU thermal trip support,Memory temperature,Peripheral temperature,Platform Environment Control Interface (PECI)/(TSI),System temperature,VBAT,Veore,Vmem |
| LED | CPU/system overheat LED, UID/remote UID LED |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI, Thermal monitor 2 (TM2) support |
| FAN | 8x 4-pin fan headers (up to 8 fans), 8 fans with tachometer monitoring, Fan speed control, Overheat LED indication |
| Other Features | ACPI power management, Chassis intrusion detection, Control of power-on for recovery from AC power loss, M.2 NGFF connector, UID |
| Parts List |
| CPU carrier | 2x SKT-1543H-0000-FXC, 2x SKT-1544H-0000-FXC |
| I/O Shield | 1x MCP-260-00042-3N |
| I/O Cables | 2x CBL-0044L |
