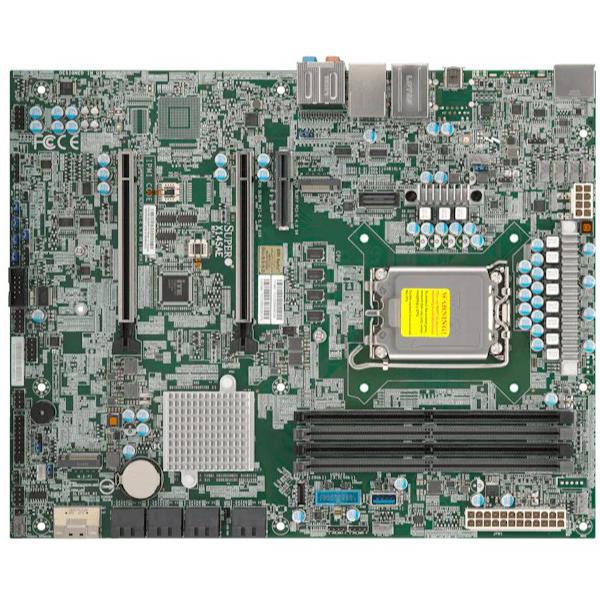

  2. Supermicro X14SAE-B Motherboard ATX Single Socket LGA-1851 (Intel V1 Socket) Intel Core Ultra 9/7/5 Series Processors - Bulk
Supermicro X14SAE-B Motherboard ATX Single Socket LGA-1851 (Intel V1 Socket) Intel Core Ultra 9/7/5 Series Processors - Bulk

Supermicro X14SAE-B Motherboard ATX Single Socket LGA-1851 (Intel V1 Socket) Intel Core Ultra 9/7/5 Series Processors - Bulk

  • Intel W880 Controller 8x SATA3 (6Gbps) ports with RAID

  • Thunderbolt 4  High-speed connectivity for external devices

  • Support Intel Core Ultra 9/7/5 (LGA-1851, up to 125W TDP)

  • Up to 256GB DDR5-5600MHz ECC/non-ECC UDIMM in 4 DIMM slots

Motherboard ATX Support Single Socket LGA-1851 (Intel V1 Socket) For Intel Core Ultra 9/7/5 Series Processors. Supports Up to 125W TDP. Up to 256GB Unbuffered ECC/non-ECC UDIMM DDR5-5600MHz, In 4 DIMM Slots On-Board: Intel W880 Controller For 8 SATA3 (6Gbps) Ports, RAID 0,1,5,10, 1 SlimSAS Connector. LAN Ports: 1x 2.5Gigabit LAN Port, 1x 1Gigabit LAN Port. Others: 8 USB Ports, 1 Intel Thunderbolt 4 Type C (Shared w/ USB4/ DP2.1) 2.1 Port, 1 Display Port Port, 1 HDMI 2.1 8K@60Hz) Ports, 1 COM Port, Audio, 1 TPM 2.0 Onboard. Includes 1 PCIe 4.0 x4 Slot, 2 PCIe 5.0 x16 Slots, 2 M.2 (M-key 2280/22110) - (MBD-X14SAE-B)

$ 525.50$ 525.50525.5USD

$ 525.50

Option not available

OutOfStock
2 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Key Features


    • Intel Core Ultra 9/7/5 Series Processors, Single Socket LGA-1851(Intel V1 Socket) supported, CPU TDP supports Up to 125W TDP

    • Up to 256GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MHz, in 4 DIMM slots

    • 2 M.2 slots (1 PCIe 4.0 x4 from PCH, support 2280/22110, and 1 PCIe 5.0 x4 from CPU, support 2280); M.2 Key: M-Key

    • 2 PCIe 5.0 x16 slots(16/NA or 8/8), 1 PCIe 4.0 x4 slot

    • A 2.5 Gigabit LAN with Intel Ethernet i226LM LAN controller

    • A 1 Gigabit LAN with Intel Ethernet i219LM LAN controller [AMT/vPro]

    • 1 HDMI 2.1, 1 DP 2.1, 1 Thunderbolt 4.0 Type-C®Supports data rates of up to 10 Gbps Supports data rates of up to 10 Gbps

    • Intel W880 Controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10

    • Supports Thunderbolt 4

    • Onboard TPM2.0

    Extra Specifications for Supermicro X14SAE-B Motherboard ATX Single Socket LGA-1851 (Intel V1 Socket) Intel Core Ultra 9/7/5 Series Processors - Bulk

    Main Specifications
    Device TypeMotherboard
    Form FactorATX
    Dimensions (WxDxH)12" x 9.6" (30.5cm x 24.4cm)
    Processor
    Compatible ProcessorsIntel Core Ultra 9/7/5 and Core Ultra 7/5 Plus Processors
    Compatible SocketSingle V1 (LGA-1851)
    Core CountUp to 24C
    NoteSupports up to 125W TDP CPUs
    System Memory
    Memory CapacitySlot Count: 4 DIMM Slots
    Max Memory (2DPC): Up to 256GB 5600MT/s ECC/non-ECC DDR5 UDIMM/CUDIMM
    Max Memory (2DPC): Up to 256GB 4800MT/s ECC/non-ECC DDR5 UDIMM
    Memory Voltage1.1V
    Error DetectionCorrects single-bit errors, Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetIntel W880
    SATA/SAS8 SATA (6Gbps)
    Network ControllersSingle LAN with Intel I226LM Ethernet Controller
    Single LAN with Intel PHY I219LM LAN controller, for AMT/vPro
    AudioALC 888S HD Audio
    TPM1 TPM 2.0 onboard
    Input / Output
    USB(s)2 USB 3.2 Gen1 port(s) (Header), 3 USB 3.2 Gen2 Type-A port(s) (Rear), 1 USB 3.2 Gen2x2 Type-C port(s) (Rear), 1 USB 3.2 Gen2x2 port(s) (Header), 1 USB 4 Type-C port(s) (Rear)
    Video Output1 Intel Thunderbolt 4 Type C (Shared w/ USB4/ DP2.1) 2.1 port(s), 1 Display Port port(s), 1 HDMI 2.1 (8K@60Hz ) port(s)
    Serial Port / Headers1 COM port(s) (header)
    Expansion / Connectivity
    Expansion Slots Total (Free)1 PCIe 4.0 x4 Slot
    2 PCIe 5.0 x16 slots
    1 PCIe 4.0 x8 SlimSAS slot
    M.21 M.2 PCIe 4.0 x4 slot (M-key 2280/22110)
    1 M.2 PCIe 5.0 x4 slot (M-key 2280)
    System BIOS
    BIOS TypeAMI 32MB UEFI
    BIOS FeaturesACPI 6.5, UEFI 2.9, SMBIOS 3.8 or later
    Software
    SoftwareSupermicro Server Manager (SSM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), SAA (limited support)
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage+1.8V CPU,+12V,+3.3V,+5V,1.05 (PCH),3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,PCH temperature,System temperature,Triple Cooling Zones,UID,VBAT
    FAN7x 4-pin fan headers (up to 7 fans), 5 fans with tachometer status monitoring, Fan speed control, Overheat LED indication
    Other Features8-pin 12v DC power connector, ACPI power management, ATX power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and frequency overclocking, WOL
    Parts List
    I/O Shield1x MCP-260-00192-1B
    I/O Cables1x CBL-0044L
    Optional Parts List
    Optional TPMAOM-TPM-9670H, AOM-TPM-9672H, AOM-TPM-9672V
    Optional Cable1x CBL-SAST-0953C-85

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
