| Main Specifications |

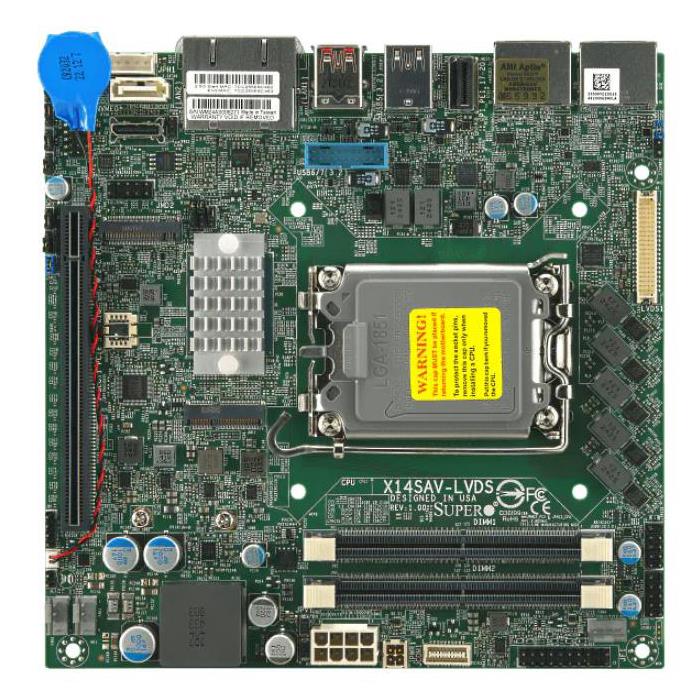

| Device Type | Motherboard |
| Form Factor | Mini-ITX |
| Dimensions (WxDxH) | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor |
| Compatible Processors | Intel Core Ultra 9/7/5 (Series 2) processors |
| Compatible Socket | Single Socket V1 (LGA-1851) |
| Core Count | Up to 24C |
| Note | Supports up to 65W TDP CPUs |
| System Memory |
| Memory Capacity | CSODIMM (clocked SODIMM) support up to 6400MT/s (with Core Ultra 9/7) |
| Slot Count: 2 DIMM Slots |
| Max Memory (1DPC): Up to 96GB 6400MT/s ECC/non-ECC DDR5 SO-DIMM |
| DIMM Sizes | SO-DIMM:8GB, 16GB, 24GB, 32GB, 48GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel W880 |
| SATA/SAS | 1 SATA (6Gbps) |
| Network Controllers | Dual LAN with Intel I226LM Ethernet Controller |
| TPM | 1 TPM header, 1 TPM 2.0 onboard |
| Input / Output |
| LAN | 2 RJ45 2.5 GbE LAN port(s) (Intel I226LM Ethernet Controller) |
| USB(s) | 4 USB 2 port(s) (Header), 1 USB 3.2 Gen2x2 Type-C port(s) (Rear), 2 USB 3 port(s) (Header), 3 USB 3.2Gen2x1 Type-A port(s) (Rear) |
| Video Output | 1 LVDS port(s), 2 HDMI 2.1 port(s), 2 Display Port port(s) |
| Serial Port / Headers | 2 COM port(s) (header) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 slot(s) |
| M.2 | 1 M.2 PCIe 5.0 x4 slot (M-key 2280) |
| 1 M.2 PCIe 2.0 x1 slot (E-key 2230; USB 2.0) |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | ACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9 |
| Software |
| Software | Supermicro Server Manager (SSM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +1.8V,+3.3V,3 -fan status,3 fans with tachometer monitoring,Chipset voltage,CPU temperature,Fan speed control,HT,Monitors CPU Core Voltages,Power LED,PWM fan speed control,System level control,System temperature,Thermal control for 3 fan connectors,VBAT |
| FAN | 3x 4-pin fan headers (up to 3 fans) |
| Other Features | 8-pin 12-24V DC Power Connector, ACPI power management, ATX power connector, Chassis intrusion header, M.2 NGFF connector, RoHS, System level control, WOL |
| Parts List |
| I/O Cables | 1x CBL-PWEX-1066, 1x CBL-0044L |
| I/O Shield | 1x MCP-260-00200-0N |
| Optional Parts List |
| Optional Heat Sink | 1x SNK-P0085A4, 1x SNK-P0092AP4-1 |
| Optional Cable | 1x CBL-CDAT-0685, 1x CBL-CUSB-0621-1, 1x CBL-CUSB-0664, 1x CBL-MCIO-1240QU2P-E, 1x CBL-PWEX-1066, 1x CBL-SAST-0933, 1x CBL-SAST-0956 |
| Optional Riser card | 1x RSC-S-6G5 |
| Optional TPM | 1x AOM-TPM-9672H |
