| Main Specifications |

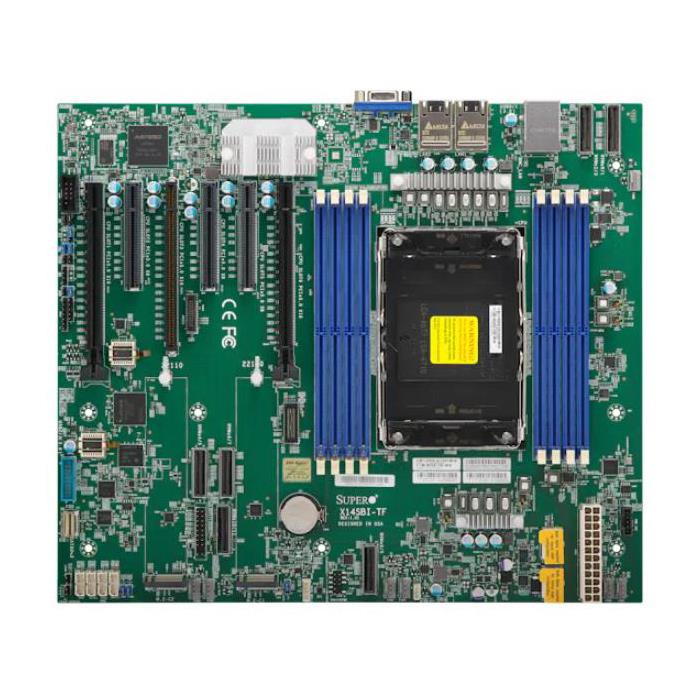

| Device Type | Mainstream motherboard |
| Form Factor | ATX-Compatible (Extended Dimensions) |
| Dimensions (WxDxH) | 12.3" x 10.5" (31.24cm x 26.67cm) |
| Processor |
| Compatible Processors | Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| BIOS 1.2 or above is required to support Intel Xeon 6700/6500-series processors with P-cores |
| Specific CPUs: Intel Xeon 6781P, 6761P, 6741P, 6731P, 6521P |
| Compatible Socket | Single Socket E2 (LGA-4710) |
| Core Count | P-cores: Up to 144C |
| Note | Supports up to 350W TDP CPUs |
| System Memory |
| Memory Capacity | Slot Count: 8 DIMM Slots |
| Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only) |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| SATA/SAS | 4 SATA (6Gbps) via ASMediaASM1164, via SlimSAS |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with 10GBase-T with Intel X550 |
| TPM | TPM Header |
| Input / Output |
| LAN | 2 RJ45 10 GbE LAN port(s), 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB(s) | 2 USB 3.2 Gen1 port(s) (Header), 2 USB 3.2 Gen1 port(s) (Rear) |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Serial Port / Headers | 1 COM port(s) (header) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | (PCIe5.0 Slot 6 and JNVME3-6 are enabled with the specific CPU** installed) |
| M.2 | 2 M.2 PCIe 5.0 x2 slots (M-key 22110) |
| System BIOS |
| BIOS Type | AMI 64MB UEFI |
| BIOS Features | ACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9 |
| Software |
| Software | SuperCloud Composer (SCC), Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +12V,+3.3V,+5V,+5V standby,7 -fan status,Chassis intrusion header,Memory Voltages,Monitors CPU voltages,Supports system management utility,System level control,VBAT |
| LED | CPU/system overheat LED, UID/remote UID LED |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI, Thermal monitor 2 (TM2) support |
| FAN | 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication |
| Other Features | ACPI power management, Chassis intrusion detection, Control of power-on for recovery from AC power loss, M.2 NGFF connector, UID, WOL |
| Parts List |
| CPU carrier | 1x SKT-1543H-0000-FXC, 1x SKT-1544H-0000-FXC |
| I/O Shield | 1x MCP-260-00042-1N |
| I/O Cables | 1x CBL-SAST-1280QT4S2-100 |
| Optional Parts List |
| Optional Heat Sink | 1x SNK-P0088AP4, 1x SNK-P0090AP4, 1x SNK-P0087P, 1x SNK-P0088P |
