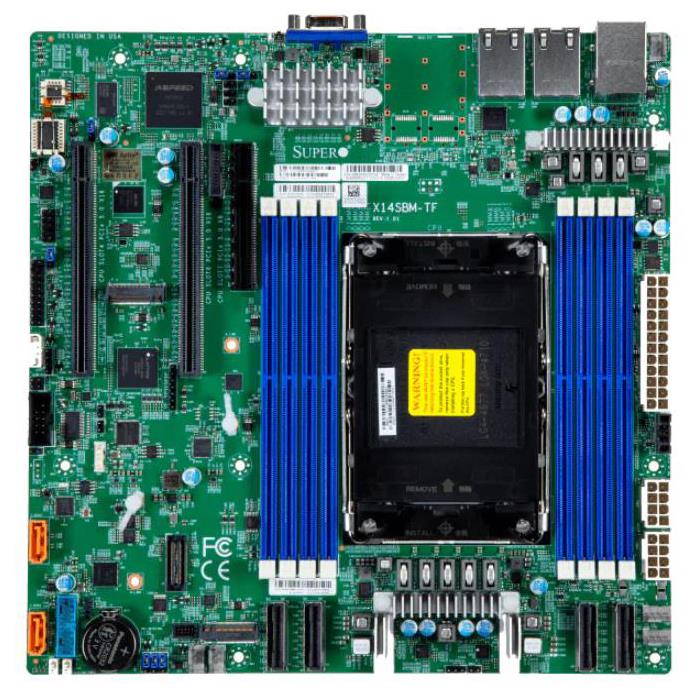

| Main Specifications |
| Device Type | Mainstream motherboard |
| Form Factor | Micro-ATX |
| Dimensions (WxDxH) | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| Compatible Processors | Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| BIOS 1.2 or above is required to support Intel Xeon 6700/6500-series processors with P-cores |
| Compatible Socket | Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP |
| Core Count | Up to 144 E-cores or 86 P-cores |
| System Memory |
| Memory Capacity | 8 DIMM slots |
| Up to 512GB ECC MRDIMM (P-core only), DDR5-8000MT/s; Up to 2TB 3DS ECC RDIMM, DDR5-6400MT/s |
| Intel Xeon 6700/6500-series processors with P-cores is required to support MRDIMM |
| Memory Type | 6400 MT/s ECC DDR5 MRDIMM (P-core only), RDIMM (3DS) |
| DIMM Sizes | 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB |
| RDIMM: 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB |
| MRDIMM (P-core only): 32GB, 64GB |
| RDIMM 3DS: 256GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| SATA/SAS | ASMediaASM1061 controller for 2 SATA ports |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with 10GBase-T with Intel X710-AT2 |
| Input / Output |
| LAN | 2 RJ45, 1 RJ45 |
| Serial Port / Headers | 1 COM port(s) |
| DOM | 2 SATA DOM (Disk on Module) portwith power connector support |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x16, 1 PCIe 5.0 x8, 4 PCIe 5.0 x8 MCIO connector |
| M.2 | Key: M-key |
| Form Factor: 2280/22110 |
| M.2 Interface: 2 PCIe 5.0 |
| System BIOS |
| BIOS Type | AMI 64MB UEFI |
| BIOS Features | UEFI 2.9 |
| Software |
| Software | SuperCloud Composer (SCC), Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, 5 -fan status, +5V standby, +5V, +3.3V, +12V |
| LED | UID/remote UID LED, CPU/system overheat LED |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI |
| FAN | 5x 4-pin fan headers (up to 5 fans), Fan speed control |
| Other Features | WOL, UID, Control of power-on for recovery from AC power loss, ACPI power management |
| Environmental |
| Operating Environment | Operating Temperature Range: 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range: -30°C - 60°C (-22°F - 140°F) |
| Operating Relative Humidity Range: 8% - 80% (non-condensing) |
| Non Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Parts List |
| CPU carrier | 1x SKT-1543H-0000-FXC, 1x SKT-1544H-0000-FXC |
| I/O Shield | 1x MCP-260-00154-0N |
| I/O Cables | 2x CBL-0044L |
| Optional Parts List |
| Optional Heat Sink | 1x SNK-P0088AP4, 1x SNK-P0090AP4, 1x SNK-P0087P, 1x SNK-P0088P |
