- Supermicro A3SPI-8C-HLN4F-B Motherboard Mini-ITX Embedded Intel Atom C5325 Processor (Bulk)

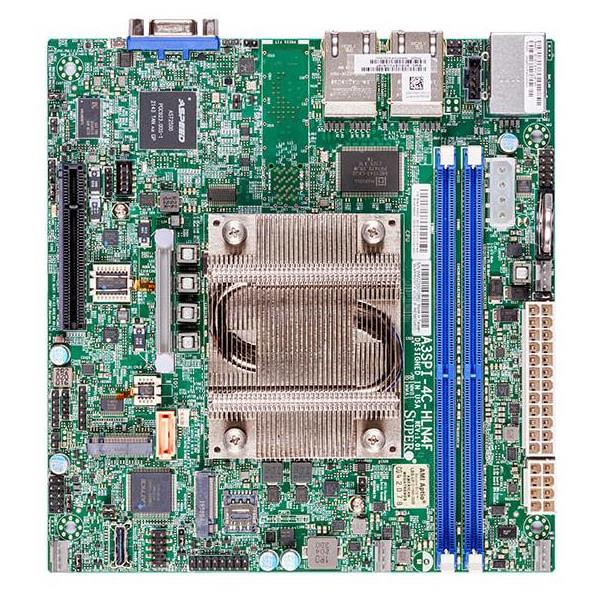

Supermicro A3SPI-8C-HLN4F-B Motherboard Mini-ITX Embedded Intel Atom C5325 Processor (Bulk)
Embedded Intel Atom C5325 Processor 8-Core
Up to 128GB DDR4-2933MHz RDIMM in 2 DIMM slots
On-Board: SATA3 6Gbps via SoC controller, 4x 1GbE LAN Ports
Includes one PCIe 3.0 slots, Key: M-Key, B-Key Form Factor: 2280, 3052
Motherboard Mini-ITX, Embedded Intel Atom C5325 Processor, 2.40GHz 8-Core/8 thread/9MB Cache. Up to 128GB DDR4-2933MHz RDIMM in 2 DIMM slots - On-Board: SATA3 6Gbps via SoC controller, 4x 1GbE LAN Ports, TPM 2.0, Includes one PCIe 3.0 slots, Key: M-Key, B-Key Form Factor: 2280, 3052 - (MBD-A3SPI-8C-HLN4F-B)
1. Supports 12V DC power input
2. Intel Atom Processor C5325, Single Socket FCBGA-2106 supported, CPU TDP support 41W
3. System on Chip
4. Intel Quick Assist Technology
5. Up to 128GB ECC RDIMM DDR4-2933MHz, in 2 DIMM slots
6. Expansion slots: 1 PCIe 3.0 x2 (in x8 slot)
7. 4 GbE LAN ports
8. Up to 5 SATA3 ports from SoC (1 via SATA port, 4 via Oculink)
9. I/O: 1 VGA, 1 COM, TPM 2.0 onboard and header both
10. 2 USB 3.0 (Type-A on rear) 2 USB 2.0 (via headers)
11. M.2 Interface: 1x M.2 B-Key 3052 w/PCIe 3.0 & SATA3 & USB3.0 1x M.2 M-Key 2280 w/PCIe3.0
12. Linux support only (RHEL 8.3 and kernel version 4.18.0 or higher)
Extra Specifications for Supermicro A3SPI-8C-HLN4F-B Motherboard Mini-ITX Embedded Intel Atom C5325 Processor (Bulk)
| Main Specifications | ||
| Device Type | Motherboard | |
| Form Factor | Mini-ITX | |
| Dimensions (WxDxH) | 6.7" x 7.1" (17.14cm x 18.03cm) | |
| Processor | ||
| Embedded Processor | Intel Atom Processor C5325 | |
| Compatible Socket | Single Socket FCBGA-2106 supported, CPU TDP supports Up to 41W TDP | |
| Cache/Core | Up to 8 cores / 9MB Cache | |
| System Memory | ||
| Memory Capacity | 2 DIMM slots, Up to 128GB ECC RDIMM, DDR4-2933MT/s | |
| Memory Type | 2933/2666/2400 MT/s ECC DDR4 RDIMM | |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| SATA/SAS | SoC controller for 1 SATA3 (6 Gbps) ports | |
| IPMI | ASPEED AST2500 BMC | |
| Graphics | 1 Aspeed AST2500 BMC port(s) | |
| Network Controllers | Quad LAN with Intel C5000 SoC, 1GbE | |
| TPM | 1 TPM Header & Chip both | |
| Others | 1 8-bit GPIO header, 1 Oculink | |
| Input / Output | ||
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| Serial Port / Headers | 1 COM | |
| DOM | 1 SuperDOM (Disk on Module) ports | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCIe 3.0 x2 (in x8 slot) | |
| M.2 | Key: M-Key, B-Key | |
| Form Factor: 2280, 3052 | ||
| M.2 Interface: 1 PCIe 3.0 x4; 1 SATA/PCIe 3.0 x2/USB 3.0 | ||
| System BIOS | ||
| BIOS Type | 32MB AMI UEFI | |
| BIOS Features | UEFI 2.7, SMBIOS 3.0 or later, ACPI 6.0 or later | |
| Management | ||
| Software | Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO) | |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SuperDoctor 5 | |
| Power Configurations | ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, System Lockdown | |
| PC Health Monitoring | ||
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V | |
| LED | UID/remote UID LED | |
| Temperature | CPU thermal trip support | |
| FAN | 4x 4-pin fan headers (up to 4 fans), Thermal control tachometer fan connectors, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control) | |
| Other Features | UID, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel QuickAssist Technology | |
| Environmental | ||
| Operating Environment | Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range: 10% - 85% (non-condensing) | ||
| Operating Temperature Range: 0°C - 60°C (32°F - 140°F) | ||
| Non Operating Relative Humidity Range: 10% - 95% (non-condensing) | ||
| Parts List | ||
| I/O Shield | 1x MCP-260-00173-0N | |
| I/O Cables | 1x CBL-0044L | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
