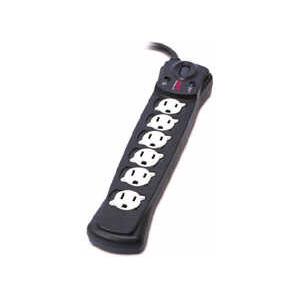

- APC P6B SurgeArrest Essential - Surge
• IEEE let-through rating and UL 1449 compliance
• Status Indicator LED's
• Transformer Block Spacing
• Lightning and Surge Protection
• IEEE let-through ratings and regulatory agency compliance
• Data-line Protection
• Noise Filtering
• Catastrophic Event Protection
• Fail Safe Mode
• Protection Working Indicator
• Building wiring fault indicator
Extra Specifications for APC P6B SurgeArrest Essential - Surge
| Main Specifications | ||
| Device Type | Surge suppressor - external | |
| Dimensions (WxDxH) | 2.2 in x 1.5 in x 11.5 in | |
| Enclosure Color | Charcoal | |
| Weight | 1.1 lbs | |
| Power Device | ||
| Clamping Level | 330 V | |
| EMI/RFI Noise Filtration | 20 dB | |
| Frequency Required | 50/60 Hz | |
| Input Connector(s) | 1 x power NEMA 5-15 | |
| Input Voltage | AC 120 V | |
| Max Electric Current | 15 A | |
| Output Connectors | 6 x power NEMA 5-15 | |
| Output Voltage | AC 120 V ( 50/60 Hz ) | |
| Surge Energy Rating | 490 Joules | |
| Surge Suppression | Standard | |
| Environmental Parameters | ||
| Humidity Range Operating | 0 - 95% | |
| Max Operating Temperature | 104 F | |
| Min Operating Temperature | 32 F | |
| Miscellaneous | ||
| Cables Included | 1 x power cable - 6 ft | |
| Compliance Standard(s) | CSA, UL 1363, UL 1449 | |
