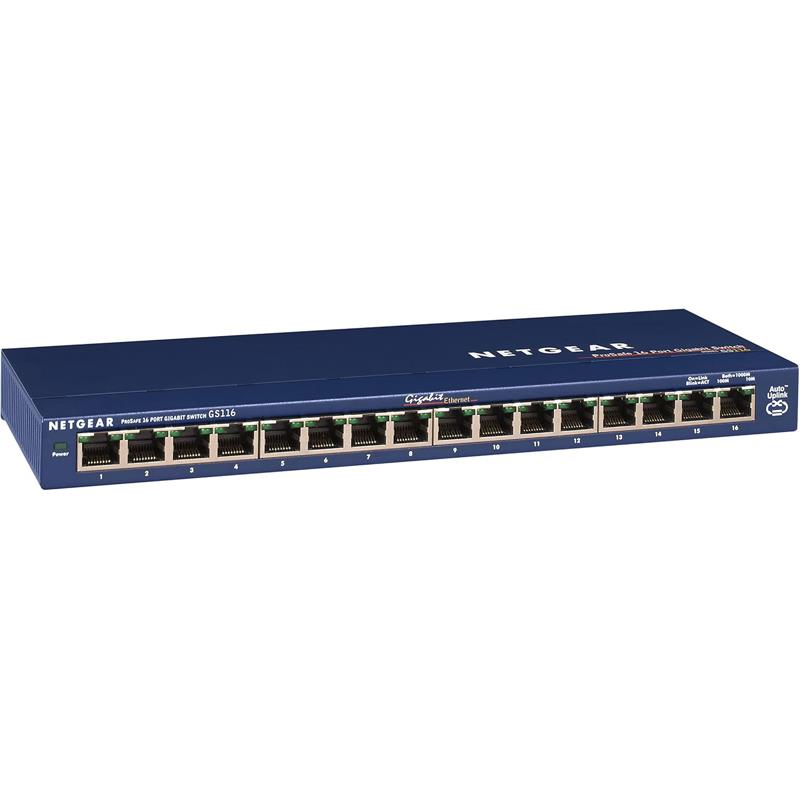

NETGEAR GS116NA ProSafe GS116 16 Port Gigabit Desktop
• Runs silently without a fan
• Fits neatly into small workspaces
• Saves energy when port is unused
• Up to 10x faster than Fast Ethernet
ProSafe GS116 16 Port Gigabit Desktop Switch - EN, Fast EN, Gigabit EN - 10Base-T, 100Base-TX, 1000Base-T
• Honors TOS/802.1p prioritization
• Supports jumbo frames up to 16 KB
• 16 switched ports provide bandwidth for PCs, servers or switches
• Each port delivers up to 2000 Mbps of network speed (full duplex)
• Auto Uplink™ automatically adjusts for straight-through or crossover cables
• Fast, auto-switching and auto-sensing 10/100/1000 Mbps Ethernet connection
Extra Specifications for NETGEAR GS116NA ProSafe GS116 16 Port Gigabit Desktop
| Main Specifications | ||
| Device Type | Switch | |
| Dimensions (WxDxH) | 11.2 in x 4.1 in x 1.1 in | |
| Form Factor | External | |
| Localization | North America | |
| Weight | 2 lbs | |
| Software / System Requirements | ||
| OS Required | Apple MacOS, Novell NetWare, Linux, Microsoft Windows | |
| Power | ||
| Power Consumption | 25 Watt | |
| Power Device | Power adapter | |
| Expansion / Connectivity | ||
| Interface(s) | 16 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 | |
| Networking | ||
| Communication Mode | Half-duplex, full-duplex | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet | |
| 1 Gbps | ||
| MAC Address Table Size | 8K entries | |
| Port Quantity | 16 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T | |
| Status Indicator(s) | Port status, link activity, port transmission speed, power | |
| Switching Protocol | Ethernet | |
| Miscellaneous | ||
| Compliant Standard(s) | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p | |
| Compliant Standards | Plug and Play, CE, FCC Class A certified, C-Tick, CISPR 22 Class A, cUL, UL 1950, VCCI Class A ITE, EN55022 Class A | |
| Rack Mounting Kit | Included | |
| Storage Controller | ||
| Connectivity Technology | Wired | |
| Environmental Parameters | ||
| Humidity Range Operating | 10 - 90% | |
| Max Operating Temperature | 104 F | |
| Min Operating Temperature | 32 F | |
| Warranty: | Lifetime |
| Coverage: | Replacement or repair |
| Average Service Time: | 3-4 weeks |
