- Intel EXPI9400PT Gigabit Ethernet Card - Gen 2 PCIe x4 Single RJ45-port 10/100/1000Base-T Half-height-Full-height

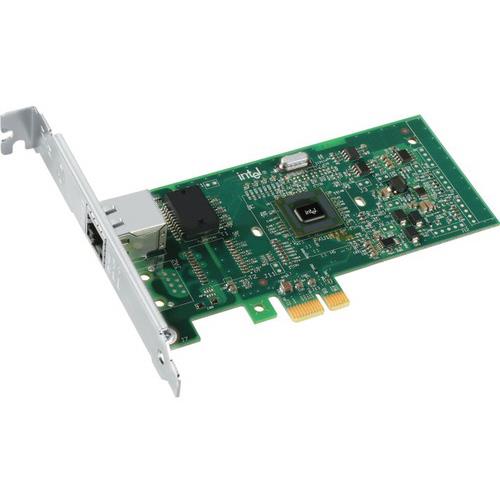

Intel EXPI9400PT Gigabit Ethernet Card - Gen 2 PCIe x4 Single RJ45-port 10/100/1000Base-T Half-height-Full-height
• 10/100/1000 Mbps self-configuration
• Designed to provide high performance
• Dual Port easy installation and management
PRO/1000 PT PORT GIGABIT ETHERNET SERVER PCI-E (X1) NETWORK CARD - EN, FAST EN, GIGABIT EN / 10BASE-T, 100BASE-T, 1000BASE-T - BULK
• Interrupt moderation
• Remote management support
• Intel 82571GB Gigabit Controller
• Load balancing on multiple CPUs
• RoHS compliant,1 lead-free2 technology
• Support for most network operating systems (NOS)
• Category-5 unshielded twisted pair (UTP), 4-pair cabling
• Compatible with x4, x8, and x16 full-height and low-profile PCI Express* slots
Extra Specifications for Intel EXPI9400PT Gigabit Ethernet Card - Gen 2 PCIe x4 Single RJ45-port 10/100/1000Base-T Half-height-Full-height
| Main Specifications | ||
| Cable Type | Network adapter | |
| Dimensions (WxDxH) | 0.9 in x 5.1 in x 4.7 in | |
| Form Factor | Plug-in Card | |
| Interface (Bus) Type | PCI Express x1 | |
| PCI Specification Revision | PCIe 1.0a | |
| Storage Controller | ||
| Processor | 82572EI - Intel | |
| Connectivity Technology | Wired | |
| Networking | ||
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet | |
| 1 Gbps | ||
| Remote Management Protocol | SNMP, DMI 2.0 | |
| Status Indicators | Port transmission speed, link OK | |
| Miscellaneous | ||
| Compliant Standard(s) | IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), WfM 2.0 | |
| Features | Full duplex capability, ACPI support, auto-negotiation, wake on LAN (WOL), Intel I/O Acceleration Technology (I/OAT) | |
| Compliant Standards | FCC Class B certified, CE, UL, VCCI, C-Tick, BSMI, MIC | |
| Expansion / Connectivity | ||
| Compatible Slots | 1 x PCI Express x1 | |
| Interface(s) | 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 | |
| Environmental Parameters | ||
| Max Operating Temperature | 131 F | |
| Min Operating Temperature | 32 F | |
| Software / System Requirements | ||
| OS Required | SCO OpenServer 5, Microsoft Windows 2000, Novell NetWare 5.x, SunSoft Solaris x86 8, Novell NetWare 6.x, Caldera OpenUnix 8, Linux 2.4 or later, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Datacenter Edition, FreeBSD 4.x | |
| Software Included | Intel PROSet | |
| Warranty: | Lifetime |
| Coverage: | Replacement or repair |
| Average Service Time: | 3-4 weeks |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Intel |
| Type of Support: | FULL |
| Phone No.: | 916-377-7000 |
| URL: | Click here for Manufacturer Website |
