- Tripp Lite DNET1 SURGE SUPPRESSOR FOR DATALINE NETWORK

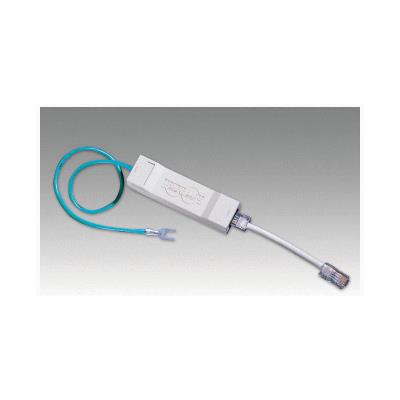

Tripp Lite DNET1 SURGE SUPPRESSOR FOR DATALINE NETWORK
• 1-Outlet
• Built-in RJ-45
• Space-saving
SURGE SUPPRESSOR FOR DATALINE NETWORK 10/100 - W/ 1 SET RJ45 IN/OUT JACKS, PROTECTS WIRES 1-8, 7.5V CLAMPING, EXTERNAL - UPC #037332011435
• DNET1 protects network workstations, printers and internetworking devices from surges present on 10/100Base-T, token ring, AS400 / Sys3x or RS422 network lines
• Convenient RJ45 input and output connections make for simple installation (RJ45 input/output connections, pins 1-8, 7.5V clamping)
• 5 inch ethernet patch cable enables ideal protection placed as close as possible to the point of use
• Surge suppression utilizing high speed avalanche diodes divert excess energies on the network to ground
• 6 inch heavy gauge grounding lead connects to designated grounding lugs on protected equipment
Extra Specifications for Tripp Lite DNET1 SURGE SUPPRESSOR FOR DATALINE NETWORK
| Main Specifications | ||
| Device Type | Surge suppressor | |
| Battery Enclosure Type | Plug-in module | |
| System Overview | Protects 100Base-T 10Base-T Token Ring AS400/Sys3x RS422. RJ11/45 compatible. | |
| Expansion / Connectivity | ||
| Interfaces | 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 | |
| Power Device | ||
| Clamping Level | 7.5 V | |
| Surge Suppression | Standard | |
| Connectivity | ||
| Connector(s) | 1 x RJ-45 | |
| DATALINE SURGE SUPPRESSION | ||
| Additional Dataline protection | Protects pins 1-8 of an 8 position RJ connector. Peak pulse clamping voltage - 7.5V. Max current 750 amps. Shunt capacity <30pF. | |
| Miscellaneous | ||
| Equipment Protection Value | 100000 US Dollars | |
| Package Content(s) | 5-in. RJ45 patch cable | |
| Warranty information and instruction manual | ||
| DNET1 dataline protector | ||
| Warranty: | Lifetime |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
