- Tripp Lite PDUV30HV Metered PDU - Power distribution unit

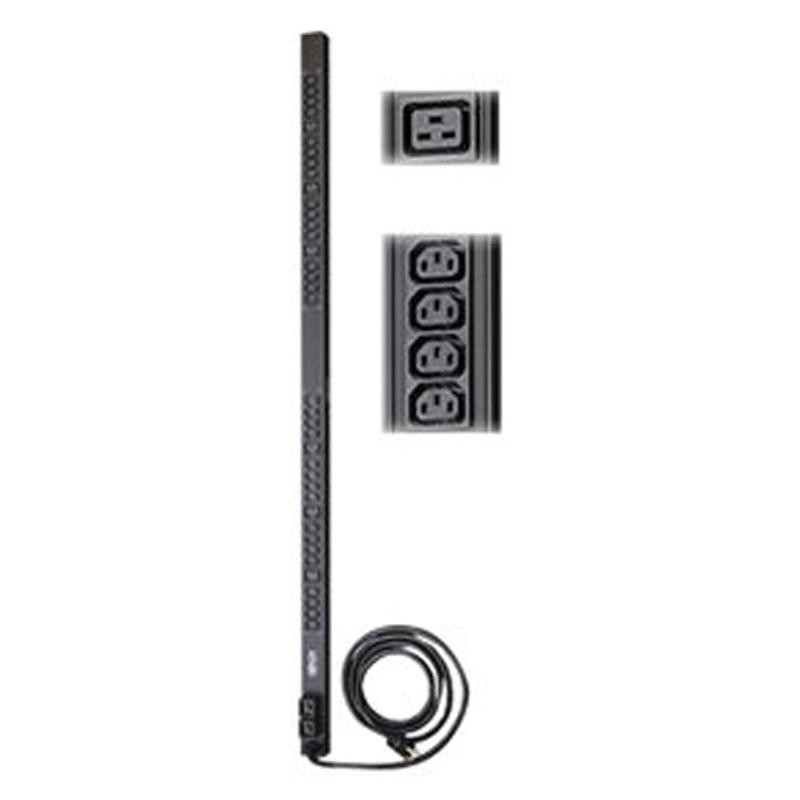

Tripp Lite PDUV30HV Metered PDU - Power distribution unit
• 38 output
• Switch-free
• Single-Phase
• Toolless installation
Metered PDU - Power distribution unit ( rack-mountable ) - AC 208/240 V - 38 output connector(s) - 0U
• Basic 0U 63.75 in. vertical rack PDU
• 208/240V 30A maximum capacity
• 10 ft. input cable with locking L6-30P plug
• 38 total output receptacles (6 C19, 32 C13)
• Tooless button-mount installation
• Cord retention brackets keep vital equipment plugs connected
Extra Specifications for Tripp Lite PDUV30HV Metered PDU - Power distribution unit
| Main Specifications | ||
| Device Type | Power distribution unit - rack-mountable | |
| Dimensions (WxDxH) | 2.2 in x 3.7 in x 63.8 in | |
| Height (Rack Units) | 0U | |
| Weight | 7.9 lbs | |
| Power Device | ||
| Circuit Protection | Circuit breaker | |
| Frequency Required | 50/60 Hz | |
| Input Connector(s) | 1 x power NEMA L6-30 | |
| Input Voltage | AC 208/240 V | |
| Max Electric Current | 30 A | |
| Output Connector(s) | 38 x power IEC 320 EN 60320 C13, power IEC 320 EN 60320 C19 | |
| Output Connector(s) Detail(s) | 32 x power IEC 320 EN 60320 C13 | |
| Output Connectors Details | 6 x power IEC 320 EN 60320 C19 | |
| Output Voltage | AC 208/240 V ( 50/60 Hz ) | |
| Environmental Parameters | ||
| Humidity Range Operating | 0 - 95% | |
| Max Operating Temperature | 104 F | |
| Min Operating Temperature | 32 F | |
| Miscellaneous | ||
| Cables Included | 1 x power cable - 10 ft | |
| Compliant Standard(s) | NOM, UL 60950-1 | |
| Rack Mounting Kit | Included | |
