- Supermicro AOC-IBH-XQS Blade Mezzanine Card

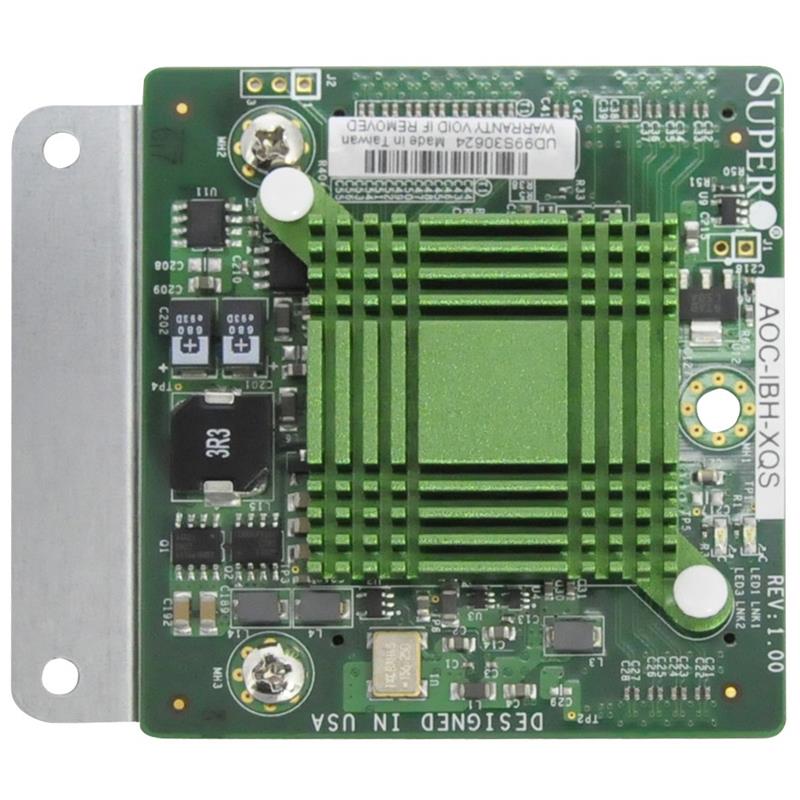

Supermicro AOC-IBH-XQS Blade Mezzanine Card
• Single Port / Low Latency
• TCP/UDP/IP stateless offload
• Hardware-based I/O Virtualization
• CPU offload of transport operations
40Gb Single-Port InfiniBand (or) 10Gb Ethernet port - Network Adapter for SuperBlade
• Full support for Intel I/OAT
• TCP/UDP/IP stateless offload
• Hardware-based I/O virtualization
• CPU offload of transport operations
• End-to-end QoS and congestion control
• Single 40Gb/s InfiniBand port or 10Gb/s Ethernet port
Extra Specifications for Supermicro AOC-IBH-XQS Blade Mezzanine Card
| Main Specifications | ||
| CPU Offloads | TCP/UDP/IP stateless offload | |
| Intelligent interrupt coalescence | ||
| Full support for Intel I/OAT | ||
| Compliant to Microsoft RSS and NetDMA | ||
| InfiniBand | Mellanox ConnectX IB QDR Chip | |
| Single 4X InfiniBand port | ||
| 40Gb/s | ||
| RDMA, Send/Receive semantics | ||
| Hardware-based congestion control | ||
| Atomic operations | ||
| Interface Type | SuperBlade Mezzanine Card | |
| Networking | ||
| Hardware-based I/O Virtualization | Address translation and protection | |
| Multiple queues per virtual machine | ||
| Native OS performance | ||
| Complimentary to Intel and AMD I/OMMU | ||
| Connectivity | ||
| Connectivity | Interoperable with InfiniBand switches through SuperBlade QDR InfiniBand Switch (SBM-IBS-Q3618) | |
| Interoperable with 10 Gigabit Ethernet switches through SuperBlade 10G Ethernet Pass-Through Module (SBM-XEM-002) | ||
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0 to 55C | |
| Software / System Requirements | ||
| OS Required | Operating Systems/Distributions (Ethernet): RedHat Linux | |
| Operating Systems/Distributions (InfiniBand): - Novell, RedHat, Fedora and others - Microsoft Windows Server | ||
| Miscellaneous | ||
| Compatible Servers | Intel TwinBlade (SBI-7226T-T2) | |
| Intel (SBI-7126T-S6, SBI-7126T-T1E) | ||
| AMD Quad blade (SBA-7141A-T) | ||
| Compliant Standards | RoHS | |
| Warranty: | 3 years, 120 days advanced replacement (doa) |
| Provider: | Supermicro |
| Phone No.: | 305-640-0300 |
| E-mail: | returnservices@wiredzone.com |
| URL: | Click here for Manufacturer Website |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
