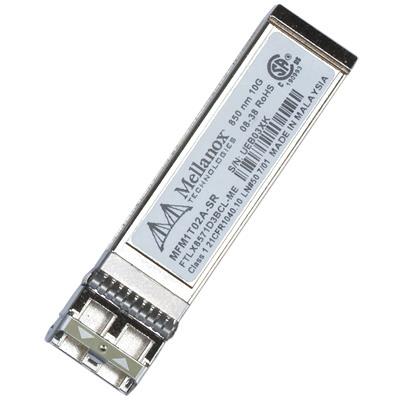

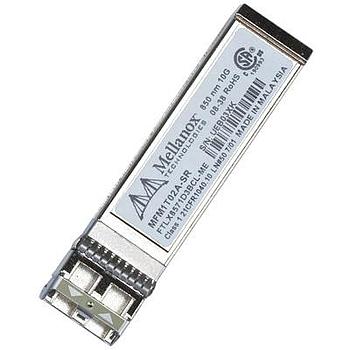

Mellanox MFM1T02A-SR Active Optical Modules -SFP+ transceiver
• Provide outstanding performance
• 100% tested on Mellanox equipment
• SFP+ transceiver module - LC multi-mode
Active Optical Modules - SFP+ transceiver module - 10GBase-SR - LC multi-mode - plug-in module - up to 980 ft - 850 nm
• Mellanox active optical modules provide outstanding performance for high-bandwidth fabrics, extending the benefits of Mellanox's high-performance InfiniBand and 10 Gigabit Ethernet adapters throughout the network
Extra Specifications for Mellanox MFM1T02A-SR Active Optical Modules -SFP+ transceiver
| Main Specifications | ||
| Device type | SFP+ transceiver module | |
| Enclosure Type | Plug-in module | |
| Expansion / Connectivity | ||
| Compatible Slot(s) | 1 x SFP+ | |
| Interface(s) | 1 x network - Ethernet 10GBase-SR - LC multi-mode female x 2 | |
| Networking | ||
| Cabling Type | 10GBase-SR | |
| Connectivity Technology | Wired | |
| Data Link Protocol | 10 Gigabit Ethernet | |
| Data Transfer Rate | 10.5 Gbps | |
| Max Transfer Distance | 980 ft | |
| Optical Wave Length | 850 nm | |
| Power | ||
| Power Consumption Operational | 1 Watt | |
| Environmental Parameters | ||
| Operating Temperature | Min Operating Temperature 32 °F | |
| Max Operating Temperature 158 °F | ||
| Humidity Range Operating 5 - 85% | ||
| Miscellaneous | ||
| Compliant Standards | RoHS | |
| Name | Part Number | Quantity | Description |
|---|
| Warranty: | 1 year |
| Provider: | Mellanox |
| Phone No.: | 408-916.0055 |
| E-mail: | returnservices@wiredzone.com |
| URL: | Click here for Manufacturer Website |
| Coverage: | Replacement or repair |
| Average Service Time: | 3-4 weeks |
| If you need Technical Support for this item please contact: | |
| Provider: | Mellanox |
| Type of Support: | FULL |
| Phone No.: | 408-916-0055 |
| URL: | Click here for Manufacturer Website |
