• Local Current Monitoring Display
• Flash Upgradeable; Load indicator LED
• Includes horizontal; vertical; toolless-mount
• Integrates with StruxureWare Data Center Expert

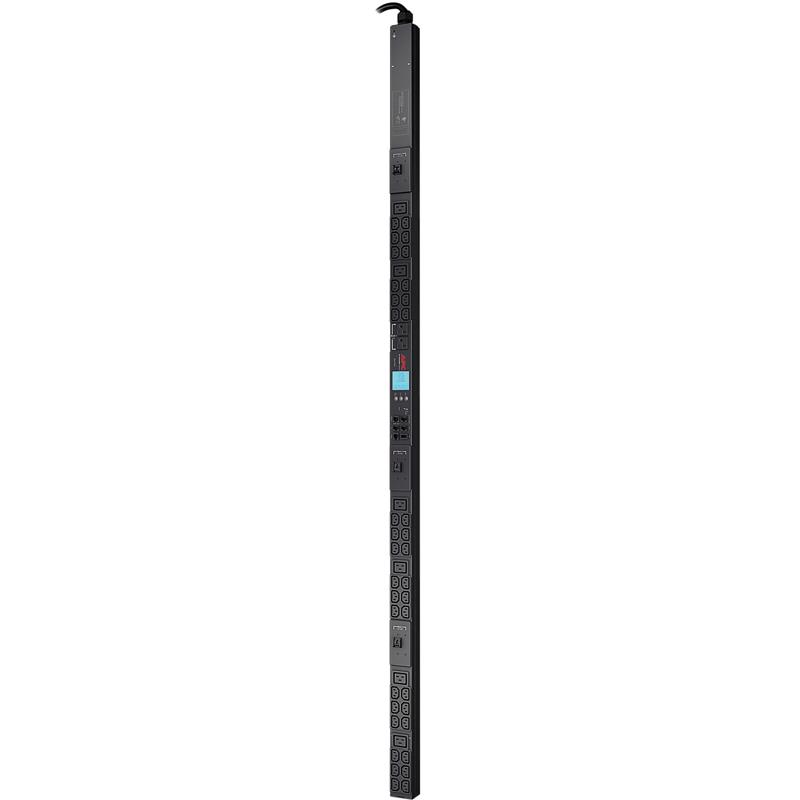

Rack PDU 2G Metered Zero U, 44-Outlets, 8.6kW, 208V, 36x C13 and 6x C19 and 2x 5-20 - Rack-mountable
• Local and web-based monitoring. Status available to customers both in the data center and remotely
• Alarm Thresholds. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems
• Load indicator LED. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits
| Main Specifications | ||
| Device Type | Power distribution strip - rack-mountable | |
| Dimension(s) (WxDxH) | 2.2 in x 1.8 in x 70.5 in | |
| Color | Black | |
| Height (Rack Units) | 0U | |
| Weight | 16.8 lbs | |
| Networking | ||
| Remote Management Protocol | SNMP, Telnet, HTTP | |
| Power Device | ||
| Circuit Protection | Circuit breaker | |
| Frequency Required | 50/60 Hz | |
| Input Connectors | Power NEMA L21-30 | |
| Input Voltage | AC 208 V | |
| Max Electric Current | 30 A | |
| Power Capacity | 8.6 kW | |
| Output Connectors Details | 36 x power IEC 320 EN 60320 C13 | |
| 6 x power IEC 320 EN 60320 C19 | ||
| 2 x power NEMA 5-20 | ||
| Expansion / Connectivity | ||
| Interfaces | 1 x management | |
| Environmental Parameters | ||
| Humidity Range Operating | 5 - 95% | |
| Max Operating Temperature | 113 F | |
| Min Operating Temperature | 41 F | |
| Miscellaneous | ||
| Cables Included | 1 x power cable - 6 ft, 1 x serial cable - external | |
| Compliant Standards | CSA C22.2, RoHS, UL 60950-1 | |
| Features | LCD display, current meter, LED indicators, overload protection | |
| Rack Mounting Kit | Included | |
| Warranty: | 2 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 3-4 weeks |
| E-mail: | - |
| If you need Technical Support for this item please contact: | |
| Provider: | APC |
| Type of Support: | FULL |
| Phone No.: | 800-555-2725 |
| URL: | Click here for Manufacturer Website |
