• Local Current Monitoring Display
• Remote Management Capabilities
• Wide range of input and output connections
• Integrates with StruxureWare Data Center Expert

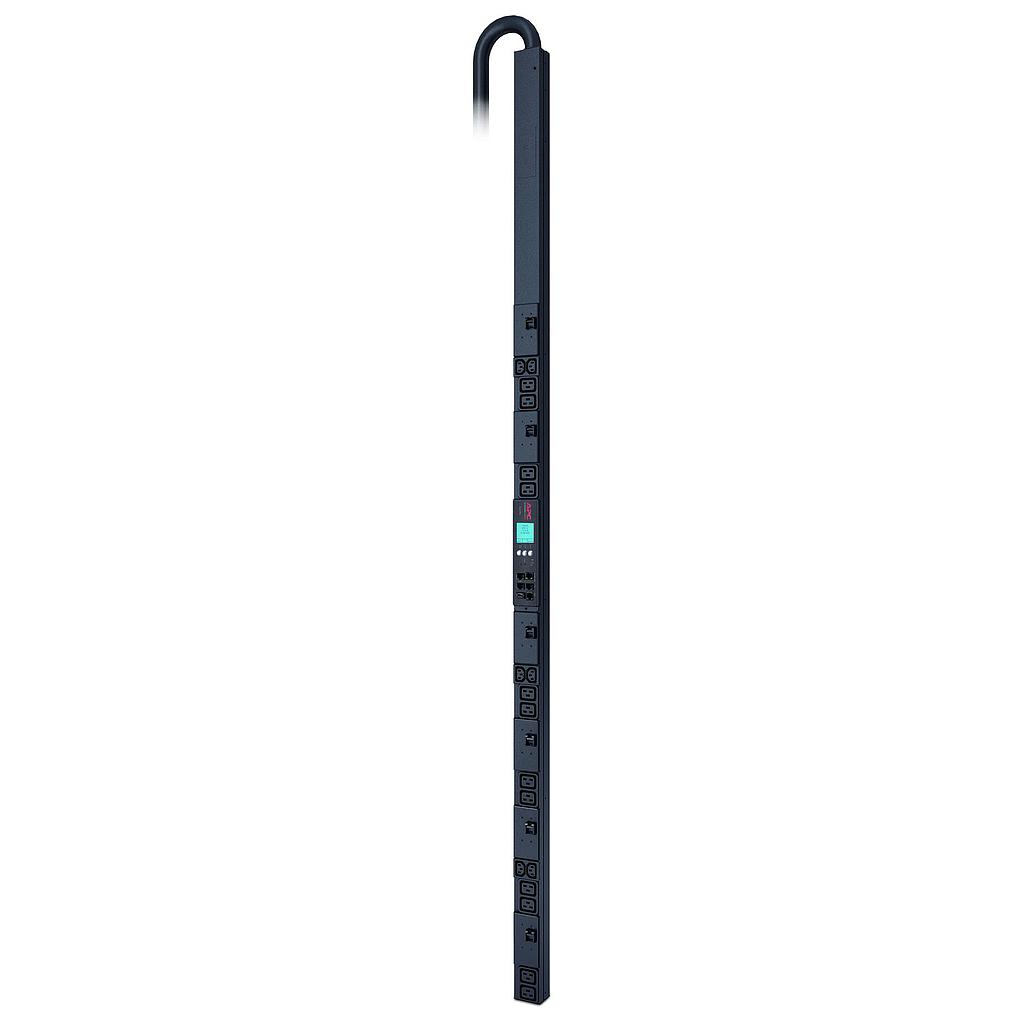

Rack PDU 2G Metered Zero U - 17.2kW, 208V AC, 6x C13 and 12x C19 - Rack-mountable
• Local and web-based monitoring. Status available to customers both in the data center and remotely
• Load indicator LED. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits
| Main Specifications | ||
| Device Type | Power distribution unit - rack-mountable | |
| Dimension(s) (WxDxH) | 2.2 in x 2 in x 72 in | |
| Color | Black | |
| Height (Rack Units) | 0U | |
| Localization | Canada, United States | |
| Weight | 21.2 lbs | |
| Networking | ||
| Remote Management Interface | Ethernet 10/100, RS-232 | |
| Remote Management Protocol | SNMP, Telnet, HTTP | |
| Power Device | ||
| Circuit Protection | Circuit breaker | |
| Frequency Required | 50/60 Hz | |
| Input Connectors | 1 x power IEC 309 | |
| Input Voltage | AC 208 V | |
| Input Wiring | 3-phase | |
| Max Electric Current | 60 A | |
| Output Connectors Details | 6 x power IEC 320 EN 60320 C13, 12 x power IEC 320 EN 60320 C19 | |
| Power Capacity | 17.3 kW | |
| Environmental Parameters | ||
| Humidity Range Operating | 5 - 95% | |
| Max Operating Temperature | 122 F | |
| Min Operating Temperature | 32 F | |
| Miscellaneous | ||
| Cables Included | 1 x power cable - integrated - 6 ft | |
| Compliant Standards | FCC Class A certified, UL, cUL, ICES-003, VCCI Class A ITE, FCC Part 15, RoHS Exemption 7b, UL 60950-1, CSA C22.2 No. 60950-1-03 | |
| Features | Current meter, overload protection | |
| Rack Mounting Kit | Included | |
| Warranty: | 2 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 3-4 weeks |
| E-mail: | - |
| If you need Technical Support for this item please contact: | |
| Provider: | APC |
| Type of Support: | FULL |
| Phone No.: | 800-555-2725 |
| URL: | Click here for Manufacturer Website |
