- APC AP8641 Rack PDU 2G Metered by Outlet

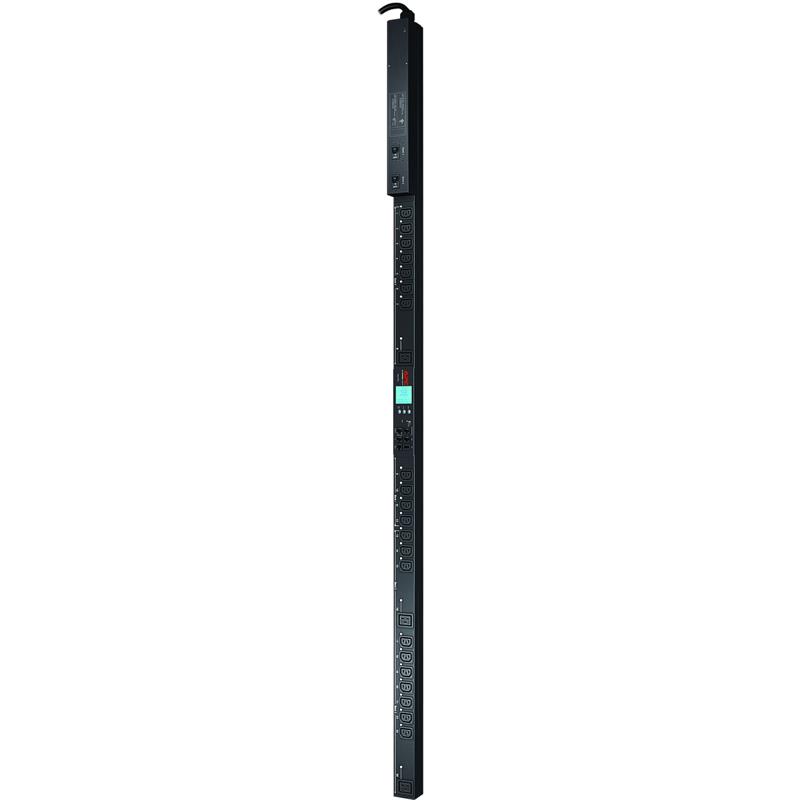

APC AP8641 Rack PDU 2G Metered by Outlet
• Power Delays
• Flash Upgradeable
• Single input power source
• Metering-by-Outlet capability
Rack PDU 2G Metered by Outlet with Switching, Zero U - 30A, 200/208V AC, 21x C13 and 3x C19
• Alarm Thresholds
• Metering-by-Outlet capability
• Remote Individual Outlet Control
• Network Management Capabilities
• Local Current Monitoring Display
Extra Specifications for APC AP8641 Rack PDU 2G Metered by Outlet
Main Specifications | ||
Device Type | Power distribution unit - rack-mountable | |
Dimension(s) (WxDxH) | 2.2 in x 2 in x 72 in | |
Color | Black | |
Height (Rack Units) | 0U | |
Localization | Japan, Canada, United States | |
Weight | 18.1 lbs | |
Networking | ||
Remote Management Interface | Ethernet 10/100, RS-232 | |
Remote Management Protocol | SNMP, Telnet, HTTP | |
Power Device | ||
Frequency Required | 50/60 Hz | |
Input Connector(s) | 1 x power NEMA L6-30 | |
Input Voltage | AC 200/208 V | |
AC 200/208/230 V | ||
Input Voltage Range | AC 200 - 240 V | |
Max Electric Current | 24 A | |
Output Connectors Details | 3 x power IEC 320 EN 60320 C19, 21 x power IEC 320 EN 60320 C13 | |
Environmental Parameters | ||
Humidity Range Operating | 5 - 95% | |
Max Operating Temperature | 113 F | |
Min Operating Temperature | 23 F | |
Miscellaneous | ||
Cables Included | 1 x power cable - external - 10 ft, 1 x serial cable - external | |
Compliant Standards | UL, cUL, ICES-003, VCCI Class A ITE, RoHS, FCC Part 15 A, REACH | |
Features | Audible alarm, LCD display, overload protection | |
Rack Mounting Kit | Included |
Warranty: | 2 years |
Coverage: | Replacement or repair |
Average Service Time: | 3-4 weeks |
