- APC AP8641 Rack PDU 2G Metered by Outlet

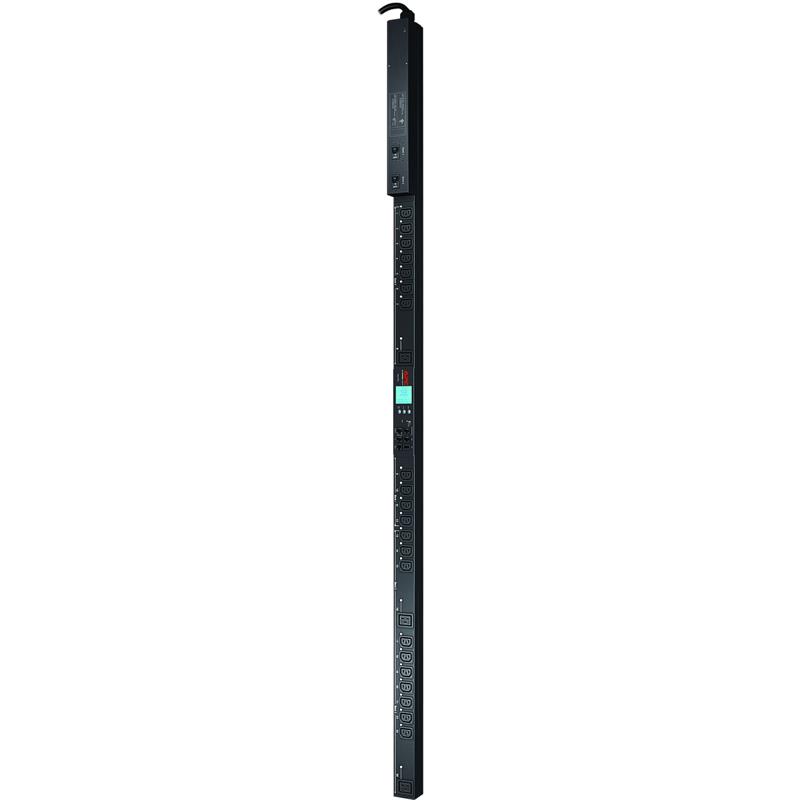

APC AP8641 Rack PDU 2G Metered by Outlet
• Power Delays
• Flash Upgradeable
• Single input power source
• Metering-by-Outlet capability
Rack PDU 2G Metered by Outlet with Switching, Zero U - 30A, 200/208V AC, 21x C13 and 3x C19
• Alarm Thresholds
• Metering-by-Outlet capability
• Remote Individual Outlet Control
• Network Management Capabilities
• Local Current Monitoring Display
Extra Specifications for APC AP8641 Rack PDU 2G Metered by Outlet
| Main Specifications | ||
| Device Type | Power distribution unit - rack-mountable | |
| Dimension(s) (WxDxH) | 2.2 in x 2 in x 72 in | |
| Color | Black | |
| Height (Rack Units) | 0U | |
| Localization | Japan, Canada, United States | |
| Weight | 18.1 lbs | |
| Networking | ||
| Remote Management Interface | Ethernet 10/100, RS-232 | |
| Remote Management Protocol | SNMP, Telnet, HTTP | |
| Power Device | ||
| Frequency Required | 50/60 Hz | |
| Input Connector(s) | 1 x power NEMA L6-30 | |
| Input Voltage | AC 200/208 V | |
| AC 200/208/230 V | ||
| Input Voltage Range | AC 200 - 240 V | |
| Max Electric Current | 24 A | |
| Output Connectors Details | 3 x power IEC 320 EN 60320 C19, 21 x power IEC 320 EN 60320 C13 | |
| Environmental Parameters | ||
| Humidity Range Operating | 5 - 95% | |
| Max Operating Temperature | 113 F | |
| Min Operating Temperature | 23 F | |
| Miscellaneous | ||
| Cables Included | 1 x power cable - external - 10 ft, 1 x serial cable - external | |
| Compliant Standards | UL, cUL, ICES-003, VCCI Class A ITE, RoHS, FCC Part 15 A, REACH | |
| Features | Audible alarm, LCD display, overload protection | |
| Rack Mounting Kit | Included | |
| Warranty: | 2 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 3-4 weeks |
| E-mail: | - |
| If you need Technical Support for this item please contact: | |
| Provider: | APC |
| Type of Support: | FULL |
| Phone No.: | 800-555-2725 |
| URL: | Click here for Manufacturer Website |
