- APC AP8841 Rack PDU 2G Metered Zero U 42-Outlets

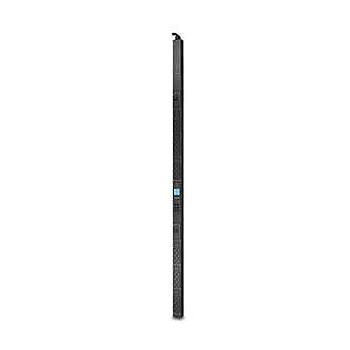

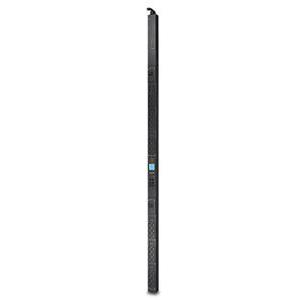

APC AP8841 Rack PDU 2G Metered Zero U 42-Outlets
• Remote Management Capabilities
• Wide range of input and output connections
• Quickly and easily upgrade firmware via network
• Integrates with StruxureWare Data Center Expert
Rack PDU 2G Metered Zero U, 42-Outlets - 30A, 200/208V AC, 36x C13 and 6x C19 - Rack-mountable
• Local and web-based monitoring. Status available to customers both in the data center and remotely
• Alarm Thresholds. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems
• Load indicator LED. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits
• Wide range of input and output connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip
Extra Specifications for APC AP8841 Rack PDU 2G Metered Zero U 42-Outlets
| Main Specifications | ||
| Device Type | Power distribution strip - rack-mountable | |
| Dimension(s) (WxDxH) | 2.2 in x 1.7 in x 70.5 in | |
| Height (Rack Units) | 0U | |
| Weight | 15.1 lbs | |
| Networking | ||
| Remote Management Interface | Ethernet 10/100, RS-232 | |
| Remote Management Protocol | SNMP, Telnet, HTTP | |
| Power Device | ||
| Circuit Protection | Circuit breaker | |
| Frequency Required | 50/60 Hz | |
| Input Connector(s) | 1 x power NEMA L6-30 | |
| Input Voltage | AC 200/208 V | |
| AC 200/208/230 V | ||
| Input Voltage Range | AC 200 - 240 V | |
| Max Electric Current | 24 A | |
| Output Connectors Details | 36 x power IEC 320 EN 60320 C13, 6 x power IEC 320 EN 60320 C19 | |
| Expansion / Connectivity | ||
| Interfaces | 1 x management (Ethernet) - RJ-45, 1 x management (RS-232) | |
| Environmental Parameters | ||
| Humidity Range Operating | 5 - 95% | |
| Max Operating Temperature | 113 F | |
| Min Operating Temperature | 23 F | |
| Miscellaneous | ||
| Cables Included | 1 x serial cable - external, 1 x power cable - 10 ft | |
| Compliant Standards | VDE, IEC 60950, CSA 22.2 No. 60950, RoHS, UL 60950-1, REACH | |
| Features | LCD display, overload protection | |
| Rack Mounting Kit | Included | |
| Warranty: | 2 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 3-4 weeks |
