- APC AP8861 Rack PDU 2G Metered Zero U 44-Outlets

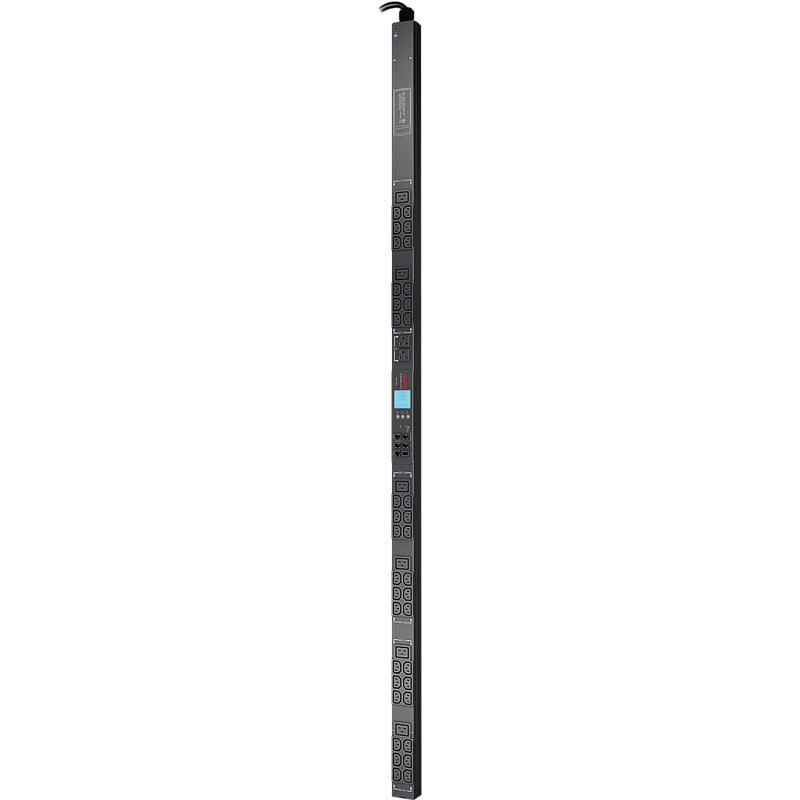

APC AP8861 Rack PDU 2G Metered Zero U 44-Outlets
• Alarm Thresholds
• Load indicator LED
• Flash Upgradeable
• Local Current Monitoring Display
Rack PDU 2G Metered Zero U, 44-Outlets - 5.7kW, 208V AC, 36x C13 and 6x C19 and 2x 5-20 - Rack-mountable
• Local and web-based monitoring. Status available to customers both in the data center and remotely
• Alarm Thresholds. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems
• Load indicator LED. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits
• Wide range of input and output connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip
Extra Specifications for APC AP8861 Rack PDU 2G Metered Zero U 44-Outlets
| Main Specifications | ||
| Device Type | Power distribution strip - rack-mountable | |
| Dimension(s) (WxDxH) | 2.2 in x 1.7 in x 70.5 in | |
| Weight | 13.9 lbs | |
| Networking | ||
| Remote Management Interface | RS-232 | |
| Remote Management Protocol | SNMP, Telnet, HTTP | |
| Power Device | ||
| Frequency Required | 50/60 Hz | |
| Input Connectors | Power NEMA L21-20 | |
| Input Voltage | AC 208 V | |
| Input Wiring | 3-phase | |
| Max Electric Current | 20 A | |
| Output Connectors Details | 36 x power IEC 320 EN 60320 C13 | |
| 6 x power IEC 320 EN 60320 C19 | ||
| 2 x power NEMA 5-20 | ||
| Expansion / Connectivity | ||
| Interfaces | Management (RS-232) | |
| Environmental Parameters | ||
| Humidity Range Operating | 5 - 95% | |
| Max Operating Temperature | 113 F | |
| Min Operating Temperature | 41 F | |
| Miscellaneous | ||
| Cables Included | 1 x serial cable, 1 x power cable - 6 ft | |
| Compliant Standards | CSA 22.2 No. 60950, RoHS, UL 60950-1, REACH | |
| Features | LED indicators, firmware upgradable | |
| Warranty: | 2 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 3-4 weeks |
| E-mail: | - |
| If you need Technical Support for this item please contact: | |
| Provider: | APC |
| Type of Support: | FULL |
| Phone No.: | 800-555-2725 |
| URL: | Click here for Manufacturer Website |
