- Supermicro CSE-113MFAC2-R606CB Server Chassis 1U Rackmount

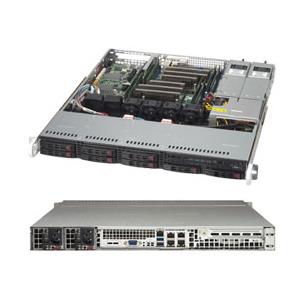

Supermicro CSE-113MFAC2-R606CB Server Chassis 1U Rackmount
• Chassis support motherboard size ATX
• 600W Redundant Power Supply; short depth
• Support Dual and Single Intel/AMD processors
• Hybrid backplane support SAS3/SATA3 NVMe SSD HDD
Rackmount 1U 600W Redundant Power Supply for motherboard up to 12in x 10in, for up Dual CPU Intel or AMD - 8x 2.5in Hot-Swap SAS / SATA Bays, 1 Full-Height AOC Expansion Slot, Rails Kit - SC113MFAC2-R606CB (Black)
• 8 hot-swap 2.5” drives bays
• 1U Rackmountchassis – 19.98” depth
• Motherboard size support up to ATX 12”x10” MB
• 600W Redundant Power Supply Gold Level Certified
• Optimize cooling with 4 40x28mm (22.5K RPM) PWM fans (optional upgrade up to 6 PWM fans)
• Hybrid backplane design for best supportability. Supports up to 8 port SAS3 12Gb/s or 6 port SAS3 12Gb/s and 2 port NVMe(determined by system and cable configuration)
Extra Specifications for Supermicro CSE-113MFAC2-R606CB Server Chassis 1U Rackmount
| Main Specifications | ||
| Device Type | SuperChassis | |
| Dimensions (WxDxH) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 19.98" (507mm) | |
| Color | Black | |
| Form Factor | 1U chassis for motherboard support size of ATX 12" x 10" | |
| Weight | 33 lb (14.97 kg) | |
| Processor | ||
| Compatible Processors | Dual and Single Intel and AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Unit Identification (UID) LED | |
| Drive Bays | ||
| Hot-swap | 8 x 2.5" hot-swap SAS/SATA drive bay | |
| Peripheral Drives | ||
| CD-ROM / DVD-ROM | 1 x Optional slim DVD-ROM drive bay | |
| System Cooling | ||
| Cooling Components | 4x 40x28mm PWM fan, 2x fans for AOC cooling | |
| Fans | FAN-0154L4 | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 full-height & full-length expansion slot(s) | |
| Power Supply | ||
| Certification | 80PLUS Platinum Certified | |
| Power Supply | 600W high-efficiency redundant power supplies with PMBus | |
| PWS-606P-1R | ||
| Operating Environment (System) | ||
| Operating Temperature Range | Operating Temperature Range 5C ~ 35C (41F ~ 95F) | |
| Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) | ||
| Operating Relative Humidity Range 8% ~ 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 60950/IEC 60950-Compliant | |
| Standard Parts List | ||
| Accessory | MCP-420-11305-0N, MCP-290-00036-0B, MCP-260-00078-0N, MCP-340-00001-01, MCP-290-00037-0N | |
| Backplane / Drive Trays | BPN-SAS3-113A-N2 | |
| Chassis | CSE-113MFAC2-R606CB | |
| Fan Holder | MCP-320-00031-0B | |
| Front Panel | FPB-FP112 | |
| Power Distributor | PDB-PT813M-2424 | |
| Rear Window | MCP-240-00086-0N | |
| Parts List | ||
| Cables | CBL-0335L | |
| Parts List - (Items Included) | ||
| Drive Trays | MCP-220-00047-0B | |
| Mounting Rails | MCP-290-00102-0N, MCP-290-00107-0N, MCP-290-00110-0N | |
| Miscellaneous | ||
| Compatible With | Motherboards: X10DRL-C, X10DRL-CT, X10DRL-iT, X10SRH-CF, X10SRH-CLN4F | |
| Server: 1028R-MCTR | ||
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
