• Chassis support motherboard size ATX
• 600W Redundant Power Supply; short depth
• Support Dual and Single Intel/AMD processors
• Hybrid backplane support SAS3/SATA3 NVMe SSD HDD

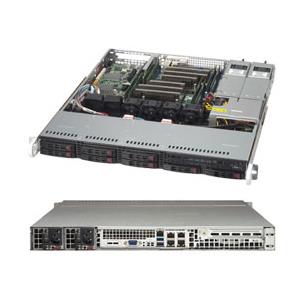

Rackmount 1U 600W Redundant Power Supply for motherboard up to 12in x 10in, for up Dual CPU Intel or AMD - 8x 2.5in Hot-Swap SAS / SATA Bays, 1 Full-Height AOC Expansion Slot, Rails Kit - SC113MFAC2-R606CB (Black)
1. 1U Chassis, support motherboard size: ATX 12" x 10"
2. 8 x 2.5" hot-swap SAS/SATA drive bay
3. 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
4. 1U 600W Redundant Single Output Power Supply w/PMBus, short depth, W54.5xL220xH40
5. 1 full height expansion slot(s)
6. 4 x 40x28mm PWM fan(s) Optional 2 x fans for AOC cooling
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Efficiency | 94% | |
| Total Output Power and Input | 600W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 220 x 54.5 x 40.25 mm | |
| Output Type | Backplanes (gold finger) | |
| +12V | Max: 50A / Min: 0.5A (100Vac - 240Vac) | |
| +5Vsb | Max: 3A / Min: 0A | |
| Power Distributor | +5V Max: 25A | |
| +3.3V Max: 25A | ||
| -12V Max: 0.6A | ||
| PDB-PT813M-2424 | ||
| O/P: 120/62 | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| TUV/CB | ||
| UL/CUL | ||
| Product SKUs | ||
| Product SKUs | CSE-113MFAC2-R606CB | |
| Form Factor | ||
| Form Factor | 1U Chassis, support motherboard size: ATX 12" x 10" | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 19.98" (507 mm) | |
| Gross Weight | 30 lbs (13.61 kg) | |
| Packaging (W x H x L) | 24" (610 mm) x 8.3" (211 mm) x 30" (762 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 1x Full-height expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 8x 2.5" hot-swap SAS/SATA drive bay | |
| Backplane | ||
| Backplane | 8-Port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1x slim DVD-ROM drive bay | |
| Front Panel | ||
| Button | Power On/Off button | |
| System Reset button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| 2 Network Activity LEDs | ||
| Unit Identification (UID) LED | ||
| Systems Cooling | ||
| Fans | Optional 2x fans for AOC cooling | |
| 4x 40x28mm PWM fan(s) | ||
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
