- Supermicro SSG-2028R-DN2R20L 2U Storage Barebone Dual Processor

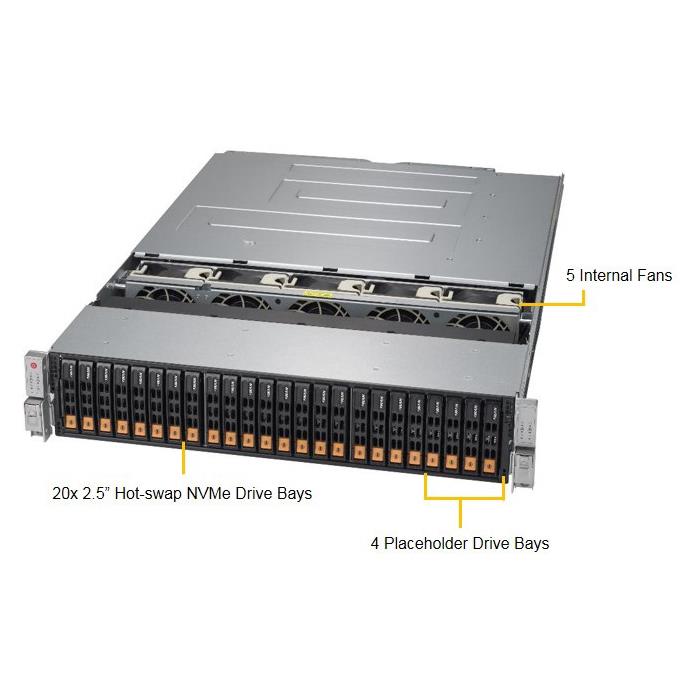

Supermicro SSG-2028R-DN2R20L 2U Storage Barebone Dual Processor
Memory capacity of up to 2TB using 16 DIMM slots
Supporting Intel Xeon processor E5-2600 v4/v3 family
Equipped with 2000W redundant Titanium-level power supplies
Barebone 2U SuperStorage Server - 2-Nodes - Each node supports up to two Intel Xeon E5-2600 v4/v3 processors - Supports up to 2.0TB DDR4 ECC 3DS LRDIMM up to 2400MHz, in 16x 288-pin slots - On-Board : Intel C612 chipset, SATA3 6Gbps (RAID 0, 1), dual-port 10GbE RJ45, IPMI 2.0, VGA - Includes : 20x 2.5in Hot-swap NVMe drive bays. Included: 4x Heatsinks (SNK-P0047PS), 2000W Redundant 96% Titanium Level Power Supply with PMBus (2x PWS-2K05A-1R), MBD-X10DSN-TS Motherboard, SC227TS-R2K05P 2U Chassis (Black)
This product is no longer available.
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16 DIMM slots
3. 1 PCI-E 3.0 x16 HHHL slot, 1 PCI-E 3.0 x8 HHHL slot, 1 SIOM slot
4. Dual port 10GBase-T (Intel® X540), Intel® XL710 used for dedicated heartbeat between 2 nodes in SBB
5. 20 Hot-swap 2.5" dual port NVMe drive bays
6. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
7. 5 high-performance 8cm PWM fans
8. 2000W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SSG-2028R-DN2R20L 2U Storage Barebone Dual Processor
| Motherboard (Two per System) | ||
| Motherboard (Two per System) | Super X10DSN-TS | |
| Processor/Cache (per Node) | ||
| CPU | Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | |
| Dual Socket R3 (LGA 2011) | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory (per Node) | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 512GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices (per Node) | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| 1x Realtek RTL8201N PHY (dedicated IPMI) | ||
| Intel® X540 Dual Port 10GBase-T | ||
| 10Gb private ethernet between controller nodes | ||
| Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Video | ASPEED AST2400 BMC | |
| Input / Output (per Node) | ||
| SATA | 2 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 10GBase-T LAN ports | |
| IPMI LAN shared port | ||
| USB | 3 USB 3.0 ports (2 rear, 1 Type A) | |
| Video | 1 VGA port | |
| Serial Port / Header | COM port via riser | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-227TS-R2K05P | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 25.6" (650mm) | |
| Gross Weight | 67 lbs (30.4 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED | |
| Power Fail LED | ||
| 2 Network activity LEDs | ||
| Heartbeat LED | ||
| Overheat/Fan Fail LED | ||
| Expansion Slots (per Node) | ||
| PCI-Express (per node) | 1 PCI-E 3.0 x16 HHHL slot | |
| 1 PCI-E 3.0 x8 HHHL slot | ||
| 1 SIOM slot | ||
| Drive Bays | ||
| Hot-swap | 20 Hot-swap 2.5" dual port NVMe drive bays | |
| System Cooling | ||
| Fans | 5x 8cm high-performance PWM fans | |
| Power Supply | ||
| Power Supply | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 120Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vac (UL/CUL only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| Input | 100-120Vac / 12.5-9.5A / 50-60Hz | |
| 200-220Vac / 10-9.5A / 50-60Hz | ||
| 220-230Vac / 10-9.8A / 50-60Hz | ||
| 230-240Vac / 10-9.8A / 50-60Hz | ||
| 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) | ||
| +12V | Max: 83.3A / Min: 0A (100-120Vac) | |
| Max: 150A / Min: 0A (200-220Vac) | ||
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 166.7A / Min: 0A (230-240Vac) | ||
| Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperStorage 2028R-DN2R20L (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DSN-TS | 2 | Super X10DSN-TS Motherboard | |
| Motherboard / Chassis | CSE-227TS-R2K05P | 1 | 2U Chassis | |
| Backplane | BPN-NVMe3-227SNB | 1 | BPN-NVMe3-227SN Base Board | |
| Backplane | BPN-NVMe3-227SNL | 2 | BPN-NVMe3-227SN PLX Gen3 PCIe Swtich Daughter Board | |
| Backplane | BPN-NVME3-227SSB | 1 | 227S Platfrom Mid-Plane for Power Distribution and PCIe Pass-Through | |
| Cable 1 | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH | |
| Cable 2 | CBL-SAST-0819 | 8 | OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH | |
| Parts | MCP-110-00015-0N | 8 | Pan head screw, #6-32 x 6L | |
| Riser Card | RSC-X-68-C | 2 | 1U Storage Riser card wtih 1 PCI-Ex6 , 1 PCI-Ex8 and comport | |
| Heatsink / Retention | SNK-P0047PS | 4 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-2K05A-1R | 2 | 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH | |
| FAN 1 | FAN-0167L4 | 4 | 40x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers | |
| FAN 2 | FAN-0168L4 | 5 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay) |
