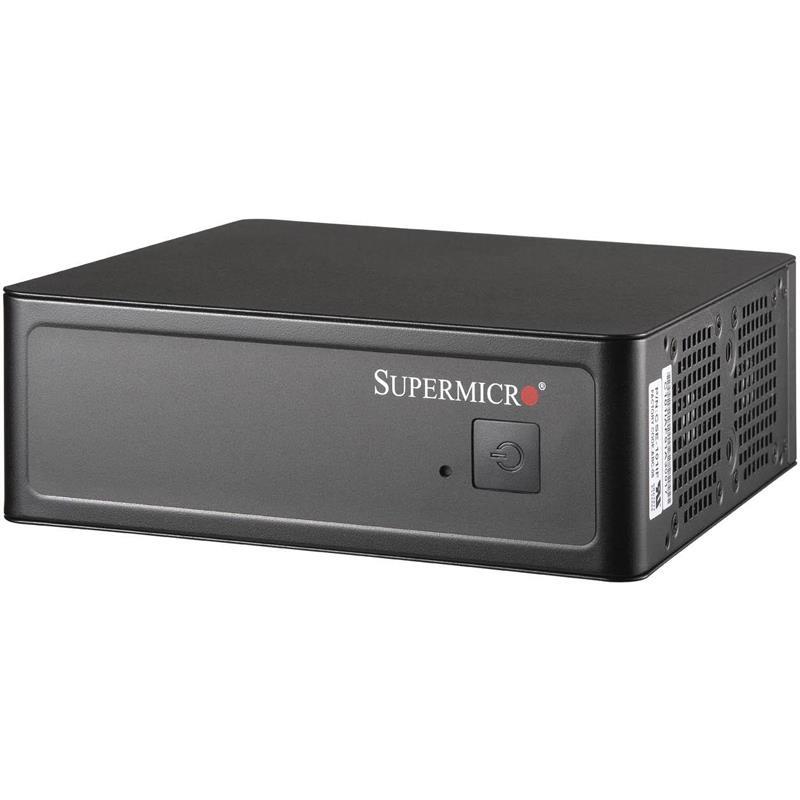

Supermicro CSE-101iF Mini-ITX Chassis for Intel Core or Atom

Supermicro CSE-101iF Mini-ITX Chassis for Intel Core or Atom

  • VESA/Wall-mount ready for Easy installation

  • Compatible with Single Intel and AMD processors

  • Slim & Space-Saving Design – Optimized for compact environments

  • Storage – 1x 2.5" fixed drive bay (Enterprise SATA HDD recommended)

Mini-ITX Chassis NO Power Supply - Supports motherboard up to 6.75in x 6.75in - Optional 60W/80W DC-DC Power Adapter or DC/DC Power converter board - Supports single Intel Core or Intel Atom processor, 1x 2.5in HDD tray - Optimized for H9SKV-420 - SC101iF (Black)

$ 88.50$ 88.5088.5USD

$ 88.50

Option not available

InStock
3 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. Slim & Space-saving Chassis Design
    2. Optional 60W/84W DC-in Power adapter
    3. 1x 2.5" internal HDD support
    4. 2x 6cm Cooling Fans
    5. Power switch w/ 1x LED
    6. VESA/Wall-mount ready

    Extra Specifications for Supermicro CSE-101iF Mini-ITX Chassis for Intel Core or Atom

    Processor Support
    Processor SupportIntel® Atom™ processors Single Intel® and AMD processors
    Front Panel
    ButtonsPower On/Off button
    System Reset Button
    LEDsPower Status LED
    Power Supply
    Power SupplyOptional 60W/84W, DC-DC Power Adapter
    CertificationN/A
    Regulatory (Power Supply)
    Power Supply Safety / EMCCCC
    CE/EMC
    TUV/CB
    UL/CUL
    FCC
    Operating Environment (System)
    Non-Operating Temperature Range-20°C - 60°C (-4°F – 140°F)
    Operating Temperature Range0°C - 40°C (32°F - 104°F)
    Operating Relative Humidity Range10% - 85% (non-condensing)
    Non-Operating Relative Humidity Range10% - 95% (non-condensing)
    Product SKUs
    Product SKUs
    Form Factor
    Form FactorMini-ITX Chassis for motherboard support size: (Mini-ITX 6.75" x 6.75")
    Dimensions
    Height2.68" (68 mm)
    Width7.68" (195 mm)
    Depth7.68" (195 mm)
    Net Weight2.76 lbs (1.25 kg)
    Gross Weight7.5 lbs (3.4 kg)
    Packaging (W x H x L)15" (381 mm) x 10.87" (276 mm) x 5.59" (142 mm)
    Available ColorBlack
    Drive Bays
    Drive Bays1 x 2.5" fixed drive bay
    Enterprise SATA HDD only recommended
    Systems Cooling
    Fans2 x 6cm 4-pin high performance cooling fan(s)
    NamePart NumberPriceAdd to CartQty.Description
    Power AdapterMCP-250-10117-0N$ 50.50060W DC power adapter with US power cord 18AWG 6ft
    Power AdapterMCP-250-10122-0N$ 87.50084W DC power adapter with US power cord 18AWG 6ft
    CableCBL-0296L$ 17.0009" 4 pin fan extension cord, for fan guide pin at 1&3 or 1&4
    CableCBL-0080L$ 17.000SATA Power Adapter Cable 6"
    Chassis partsMCP-290-10108-0B$ 254.500Dual system tray for Mini-ITX system

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
