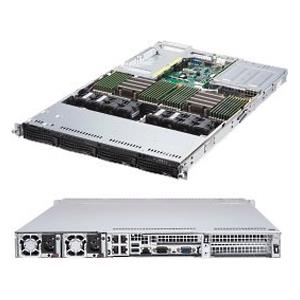

Supermicro AS-1023US-TR4 1U Barebone Dual AMD Processor
• Virtualization
• Cloud Computing
• High End Enterprise Server
• Flexible Networking Options
Barebone 1U for dual AMD EPYC 7000 Series processors, 32 DIMM sockets, support up to 4TB of Registered ECC DDR4 memory, IPMI 2.0 plus KVM with dedicated LAN, Quad Gigabit LAN ports via Intel i350AM4, 4 x 3.5 SATA3 bays by default or 4 x NVMe (optional) or 4 x SAS3 ports (SAS card required), 1000W Redundant Titanium Level POwer Supplies. Motherboard: H11DSU-iN, chassis: CSE-819UTS-R1K02P-T. - AS -1023US-TR4
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 HDD/NVMe.
1. Dual AMD EPYC™ 7001/7002 * Series Processors ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors) 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
3. Expansion slots: 2 PCI-E x16 (FH / 9.5"L) slots 2 PCI-E x8 slots (1 LP, 1 internal proprietary LP slot) [ Details ]
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. Quad Gigabit LAN ports via Intel i350AM4
6. Drive Bays: 4 hot-swap 3.5" SATA3 by default or 4 NVMe (optional supported) or 4 SAS3 ports (SAS Add-on card is optional)
7. 1000W Redundant Power Supplies Titanium Level (96%+) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1023US-TR4 1U Barebone Dual AMD Processor
| Product SKUs | ||
| AS -1023US-TR4 | A+ Server 1023US-TR4 | |
| Motherboard | ||
| Motherboard | H11DSU-iN | |
| Processor/Chipset | ||
| CPU | Dual AMD EPYC™ 7001/7002 * series Processors ( * Board revision 2.x required ) | |
| Socket SP3 | ||
| Supports CPU cTDP up to 280W ** | ||
| Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) | |
| Up to 64 Cores (Board revision 2.x + 7002 Processors) | ||
| Chipset | System on Chip (SoC) | |
| Note | ** Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory Capacity | 8-channel memory bus | |
| 32 DIMM slots | ||
| Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) | ||
| Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) | ||
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors) | |
| DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB * ( * Board revision 2.x required + 7002 Processors ) | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| VGA | ASPEED AST2500 BMC | |
| Expansion Slots | ||
| 1U | 2 PCI-E x16 (FH/HL 9.5") slots | |
| 2 PCI-E x8 slots (1 LP, 1 internal proprietary LP slot) | ||
| Input / Output | ||
| SATA | 4 SATA3 (6 Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Quad Gigabit LAN ports | ||
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| VGA | 1 VGA port | |
| SAS | 4 SAS3 ports support via optional Add-on Card | |
| NVMe | 4 NVMe support with optional cables | |
| Others | TPM 1.2 header | |
| 1 COM port (rear) | ||
| 2 SATA DOM power connector | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-819UTS-R1K02P-T | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29" (737mm) | |
| Package | 7.8" (H) 23.66" (W) 37.13" (D) | |
| Weight | Net Weight: 26 lbs (11.8 kg) | |
| Gross Weight: 41 lbs (18.6 kg) | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Drive Bays | ||
| Hot-swap | Four 3.5" Hot-swap SATA drive bays | |
| Backplane | ||
| HDD Backplane | Supports 4 SATA3 or 4 NVMe or 4 SAS3 HDD | |
| System Cooling | ||
| Fans | 8 heavy-duty PWM fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud | |
| Power Supply | ||
| Power Supply | 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W/1000W | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7 - 5A / 50-60Hz | ||
| 200-240Vdc / 7 - 5A (for CCC only) | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| Max: 83A / Min: 0A (200-240Vdc) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
| CPU switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 8-fan status tachometer monitoring | ||
| Up to eight 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| Thermal control for 8x Fan connectors | ||
| I 2 C Temperature Sensing Logic | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard | MBD-H11DSU-iN | 1 | Super H11DSU-iN Motherboard | |
| Chassis | CSE-819UTS-R1K02P-T | 1 | 1U Chassis | |
| Add-on Card / Module | AOC-UR-I4G | 1 | 1U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports and 1 internal PCI-E x8 3.0 slot | |
| Backplane | BPN-SAS3-815TQ-N4 | 1 | 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-PWEX-0673 | 1 | 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH | |
| Cable 2 | CBL-SAST-0880 | 1 | MINI SAS(RA-RS EXIT)-4 SATA,INT,55/55/55/55CM,55CM SB,30AWG | |
| FAN 1 | FAN-0101L4 | 4 | 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808 | |
| Manual | MNL-1959-QRG | 1 | AS-1023US-TR4 Quick Reference Guide | |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot | |
| Heatsink / Retention | SNK-P0062P | 2 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| * Power Supply | PWS-1K02A-1R | 2 | 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Storage Control Card and Cable(s) | AOC-S3008L-L8e | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR / 16DD | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | 0 | CacheVault for Broadcom 3108 | |||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | 0 | CacheVault for Broadcom 3108 | |||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00043-0N | $ 26.00 | 0 | STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00118-0B | $ 31.50 | 0 | STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray | ||
| Optional Kit for NVMe Solution | MCP-220-00116-0B | $ 33.50 | 0 | Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive) | ||
| Optional Kit for NVMe Solution | MCP-220-00138-0B | $ 43.00 | 0 | NVMe 3.5-to-2.5 drive tray, Orange tab | ||
| DVD-ROM / DVD-RW | DVM-PNSC-DVD-SBT3 | 0 | Black Panasonic Slim DVD-ROM SATA Drive | |||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT3 | 0 | Black TEAC Slim DVD-ROM SATA Drive | |||
| DVD-ROM / DVD-RW | DVM-PLDS-DVDRW-SBT4 | 0 | Philips Slim Black DVD-RW SATA Drive, HF | |||
| USB Port Tray (FDD Slot) | MCP-220-00129-0B | 0 | Black 2x USB 3.0 port tray in slim FDD bay | |||
| Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot) | MCP-220-81504-0N | $ 90.00 | 0 | 12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED | ||
| Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot) | MCP-220-81506-0N | $ 81.50 | 0 | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED | ||
| Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot)+Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot) | MCP-220-81504-0N | $ 90.00 | 0 | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED+Slim DVD Size Drive Kit w/Status LED | ||
| Ultra 1U Front Bezel | CSE-PTFB-813L | $ 25.50 | 0 | SC813 Front Bezel, PB Free | ||
| Ultra 1U Front Bezel | CSE-PTFB-813LB | $ 27.00 | 0 | Black SC813 Front Bezel, PB Free | ||
| Ultra 1U Front Bezel | MCP-210-11601-0B | $ 31.00 | 0 | Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support) | ||
| 1U Cable Management Arm | MCP-290-00165-0N | 1 | 1U Supermicro Cable Management Arm 3rd Gen (optimize for Ultra) | |||
| 1 Internal M.2 slot(NVMe) | RSC-UMR-8 | $ 45.00 | 1 | 1U Ultra RHS Riser Card with 1 PCI-E (up to 22110) | ||
| 1 Internal M.2 slot(SATA) | RSC-UMR-8 | $ 45.00 | 1 | 1U Ultra RHS Riser Card with 1 SATA M.2 (up to 22110) | ||
| 2 Internal M.2 slots(NVMe 2260 + SATA 2260) | RSC-UMR-8 | $ 45.00 | 1 | 1U Ultra RHS Riser Card with 1 PCI-E/SATA Hybrid M.2 & 1 PCI-E x8 (up to 2260 for each device) | ||
| M.2 by AOC | AOC-SLG3-2M2 | $ 54.00 | 1 | LP, PCIe3 x8, Dual port NVMe M.2 carrier | ||
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665V | $ 43.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
