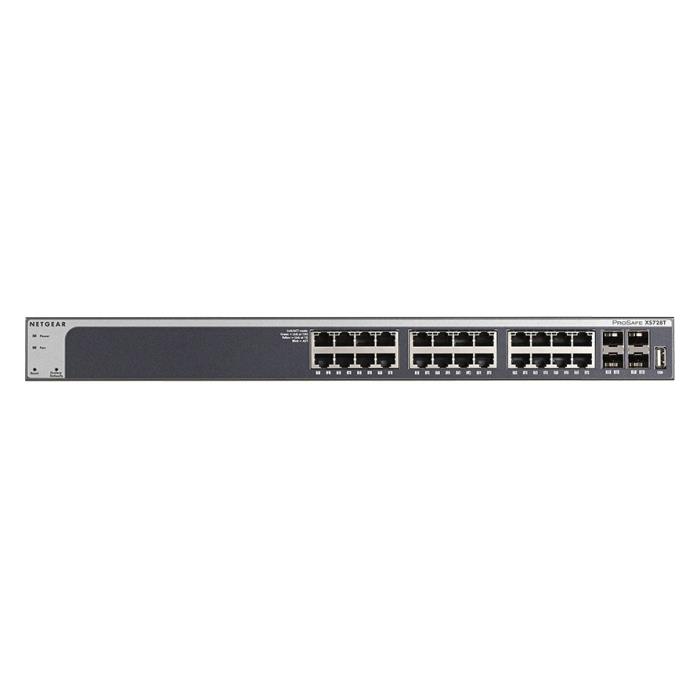

NETGEAR XS728T-100NES ProSafe 28-Port 10-Gigabit Ethernet Smart Managed Switch
• 10-Gigabit Smart Managed Switch
• Advanced L2+/Layer 3 Lite Features
• Advanced security; Dynamic VLAN assignment
• 4 SFP+ 1000/10GBASE-X fiber ports (dedicated)
ProSafe 28-Port 10-Gigabit Ethernet Smart Managed Switch - Manageable, 24 10GBASE-T copper + 4 SFP+ 1000/10GBASE-X fiber ports (dedicated), Rack-mountable, Desktop
• Private VLAN
• Advanced security
• IGMP and MLD snooping
• Dynamic VLAN assignment
• Static Routing (both IPv4 and IPv6)
• IPv6 for management, QoS and ACL
• Advanced QoS (Quality of Service) with L2/L3/L4 awareness and 8 priority queues including Q-in-Q
• Advanced VLAN features such as protocol-based VLAN, MAC-based (Media Access Control) VLAN and 802.1x Guest VLAN
• 10-Gigabit Ethernet provides greater scalability than multiple Gigabit Ethernet links, resulting in a simplified and highly efficient network infrastructure
• 10-Gigabit switches help to resolve the congestion issue between network edge and core, which is caused by the broader adoption of Gigabit-to-the-desktop
Extra Specifications for NETGEAR XS728T-100NES ProSafe 28-Port 10-Gigabit Ethernet Smart Managed Switch
| Main Specifications | ||
| Device Type | Switch - 28 ports - L3 Lite - smart | |
| Dimensions (WxDxH) | 17.3 in x 12.2 in x 1.7 in | |
| Enclosure Type | Rack-mountable 1U | |
| Location | Latin America, North America, Europe | |
| Weight | 11.11 lbs | |
| Bus Speed | 800 MHz | |
| Capacity | ACL: 164, Virtual interfaces (VLANs): 512, IGMP groups: 512, IPv4 routes: 64, IPv6 routes: 64, Priority queues per port: 8, ARP entries: 1024, DHCP snooping entries: 1000 | |
| Optical Storage | ||
| Buffer Size | 256 MB | |
| Memory | ||
| RAM | 512 MB | |
| Miscellaneous | ||
| Authentication Method | RADIUS, TACACS+ | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az | |
| cUL, EN 60950, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class A, CISPR 22, CCC, FCC Part 15 A, C-Tick Class A, SCC, VCCI Class A, TLS v1.2, TLS v1.0, EN 55024 | ||
| Encryption Algorithm | TLS 1.0, TLS 1.2 | |
| Features | Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, IPv4 support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, static routing, Class of Service (CoS), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 4 fans, 3MB packet buffer, cable test, administrator's password, layer 2+ switching | |
| Included Accessories | Rubber feet | |
| MTBF | 514,977 hours | |
| Rack Mounting Kit | Included | |
| Networking | ||
| Jumbo Support | 10KB | |
| MAC Address Table Size | 16K entries | |
| Performance | Switching fabric bandwidth: 560 Gbps | |
| Ports Qty | 24 x 10GBase-T + 4 x 10 Gigabit SFP+ | |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS | |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD | |
| Status Indicators | Port transmission speed, power, link/activity, fan | |
| Expansion / Connectivity | ||
| Interfaces | 24 x 10GBase-T - RJ-45 | |
| 4 x 10GBase-X - SFP+ | ||
| 1 x USB 2.0 - management | ||
| Software / System Requirements | ||
| Software Included | Drivers & Utilities | |
| Environmental Parameters | ||
| Max Operating Temperature | 122 F | |
| Min Operating Temperature | 32 F | |
| Operating Humidity | 90% (non-condensing) | |
| Environmental | ||
| Storage Temperature | Min: -4 F - Max: 158 F | |
| Power | ||
| Consumption Operational | 173.3 Watt | |
| Power Device | Internal power supply | |
| Voltage Required | AC 120/230 V | |
