• Intel I/O Acceleration Technology
• Dual RJ-45 connectors; Compact size
• Rich of power management technology
• For enterprise; data center environments

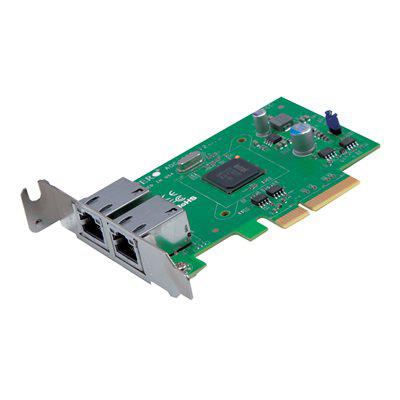

2-Port Gigabit Ethernet Controller Card - Intel i350-AM2, PCI-E x4, Two RJ45 Sockets, Low-Profile (Can be ordered with Supermicro System ONLY - OEM)
• 2 RJ-45 ports
• PCI Express 2.1
• PXE boot support
• Low power consumption
• ISCSI remote boot support
• Low-profile standard form factor
• Jumbo frame support up to 9.5 KB
• Intel I/O Acceleration technology (I/O AT)
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Flexible I/O virtualization and Quality of Service (QoS)
| Main Specifications | ||
| Cable Type | Network adapter | |
| Dimensions (WxDxH) | 3.9 in x 2.7 in | |
| Form Factor | Plug-in card - low profile | |
| Interface (Bus) Type | PCI Express 2.1 x4 | |
| PCI Specification Revision | PCIe 2.1 | |
| Storage Controller | ||
| Processor | 1 x I350 - Intel | |
| Connectivity Technology | Wired | |
| Miscellaneous | ||
| Compliant Standards | RoHS | |
| IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az | ||
| Features | Flow control, MDI/MDI-X switch, auto-negotiation, packet filtering, Quality of Service (QoS), Intel I/O Acceleration Technology (I/OAT), Jumbo Frames support, Virtual Machine Device Queues (VMDq), PXE support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), checksum offload support, iSCSI remote boot | |
| Networking | ||
| Data Link Protocol | 1 Gbps | |
| 10Mb LAN, 100Mb LAN, GigE | ||
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI | |
| Port Quantity | Gigabit Ethernet x 2 | |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T | |
| Power | ||
| Comsumtion Operational | 4 Watt | |
| Expansion / Connectivity | ||
| Interface and Connections | 2 x 1000Base-T - RJ-45 | |
| Environmental Parameters | ||
| Max Operating Temperature | 131 F | |
| Min Operating Temperature | 32 F | |
| Software / System Requirements | ||
| OS Required | Red Hat Linux 6.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, VMware ESXi 4.0, Microsoft Windows Server 2003 SP2, Microsoft Windows XP SP3, FreeBSD 8.0, Red Hat Enterprise Linux 5.5, Microsoft Windows 7 SP1, SuSE Linux Enterprise Server 10 SP3, SuSE Linux Enterprise Server 11 SP1, VMware ESXi 4.1, VMware ESXi 5, Citrix XenServer | |
| Warranty: | 3 years labor, 1 year parts, 120 days advanced replacement (doa) |
| Provider: | Supermicro |
| Phone No.: | 305-640-0300 |
| E-mail: | returnservices@wiredzone.com |
| URL: | Click here for Manufacturer Website |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
