- Supermicro SYS-1029U-TN10RT 1U Barebone Dual Intel Processor
Supermicro SYS-1029U-TN10RT 1U Barebone Dual Intel Processor
• Virtualization
• Cloud Computing
• High End Enterprise Server
Server 1U Rack for 2x Xeon Scalable Processor Gen. 2, Supports up to 6TB DDR4 2933MHz ECC LRDIMM on 24 DIMM slots
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs and 4 U.2 NVMe).

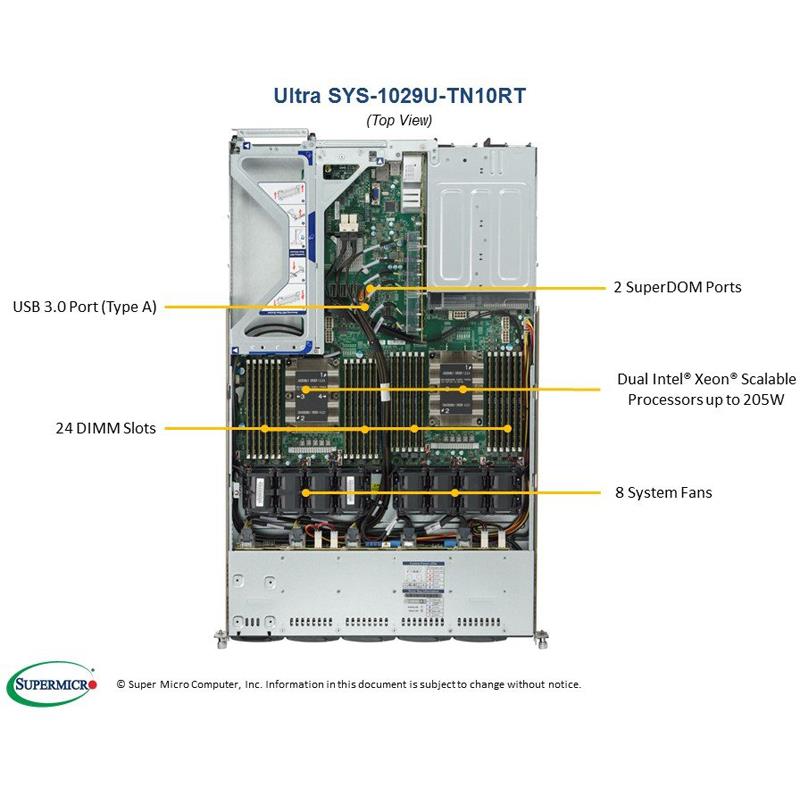

1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 2 PCI-E 3.0 x16 (FH, 10.5"L)
4. 2x 10GBase-T LAN ports
5. 10 Hot-swap 2.5" Drive Bays; 10 NVMe (4 hybrid ports - optional SAS3 via AOC); 2 internal M.2 (1 SATA3, 1 NVMe); 1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 ports
6. 8 Heavy duty fans w/ optimal fan speed control
7. 1000W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SYS-1029U-TN10RT 1U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X11DPU | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2666 ECC DDR4 NVDIMM | |
| 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | ||
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Network Connectivity | 2 10GBase-T ports via AOC-URN6-i2XT | |
| Intel® X540 Dual Port 10GBase-T | ||
| Virtual Machine Device Queues reduce I/O overhead | ||
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| NVMe | 6 NVMe ports (NVMe from CPU 1) | |
| 4 NVMe Hybrid ports with optional SAS3 (NVMe from CPU 2) | ||
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 5 USB 3.0 ports (2 rear, 2 front, 1 Type A) | |
| Video | 2 VGA ports (1 rear, 1 onboard) | |
| Serial Port | 1 Serial header | |
| DOM | 2 Super DOM (Disk on Module) ports | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-119UTS-R1K02P-N10T | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 28.5" (724mm) | |
| Gross Weight | 48 lbs (21.8 kg) | |
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System UID button | ||
| LEDs | Power LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| UID LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 slots (Full-height, 10.5"L) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) | |
| Drive Bays / Storage | ||
| Hot-swap | 10 Hot-swap 2.5" drive bays | |
| 10 NVMe (4 hybrid ports for optional SAS3 via AOC) | ||
| M.2 | 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2 | |
| 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts | ||
| System Cooling | ||
| Fans | 8 Heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud | |
| Power Supply | ||
| Power Supply | 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 127Vac | |
| 1000W: 200 – 240Vac | ||
| 1000W: 200 – 240Vdc (for CCC only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7 - 5A / 50-60Hz | ||
| 200-240Vdc / 7 - 5A (for CCC only) | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| Max: 83A / Min: 0A (200-240Vdc) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| Support CPU TDP 70-205W | ||
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information. | |
| Product SKUs | ||
| Product SKUs | SuperServer 1029U-TN10RT (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPU | 1 | Super X11DPU Motherboard | |
| Motherboard / Chassis | CSE-119UTS-R1K02P-N10T | 1 | CSE-119UTS-R1K02P-N10T | |
| Add-on Card / Module | AOC-SLG3-2E4R-P | 1 | NVMe AOC by 8,HF,RoHS/REACH | |
| Add-on Card / Module | AOC-URN6-I2XT-P | 1 | AOC-URN6-I2XT | |
| Backplane | BPN-SAS3-116A-N10 | 1 | 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible. | |
| Cable 1 | CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C cable, 65cm, 26AWG, 4 wires, pinout 1-1, for vpp header(jnvi2c1),RoHS/REACH | |
| Cable 2 | CBL-PWEX-0780 | 1 | PWYCB,2X4F/GPU-White to TWO 2X2F,P4.2, (5,12V),40/40CM,18AWG,RoHS | |
| Cable 3 | CBL-PWEX-0781 | 1 | PWYCB,2X4F/GPU-White to TWO 2X2F,P4.2, (5,12V),65/65CM,18AWG,RoHS | |
| Cable 4 | CBL-SAST-0820 | 2 | OCuLink v. 1.0,INT,PCIe NVMe SSD, 85CM,34AWG,RoHS/REACH | |
| Cable 5 | CBL-SAST-0849 | 2 | MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 57CM,34AWG | |
| Cable 6 | CBL-SAST-0964 | 1 | Oculink v1.0 6x cable bundle 549/574/425/444/571/603mm 34AWG | |
| Air Shroud | MCP-310-81910-0N | 1 | Plastic air shroud for SC819U, 119U (X11 24DIMM, left side) | |
| Air Shroud | MCP-310-81911-0N | 1 | Plastic air shroud for SC819U, 119U (X11 24DIMM, right side) | |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
| Riser Card | RSC-UMR-8 | 1 | 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE | |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| * Power Supply | PWS-1K02A-1R | 2 | 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH |
