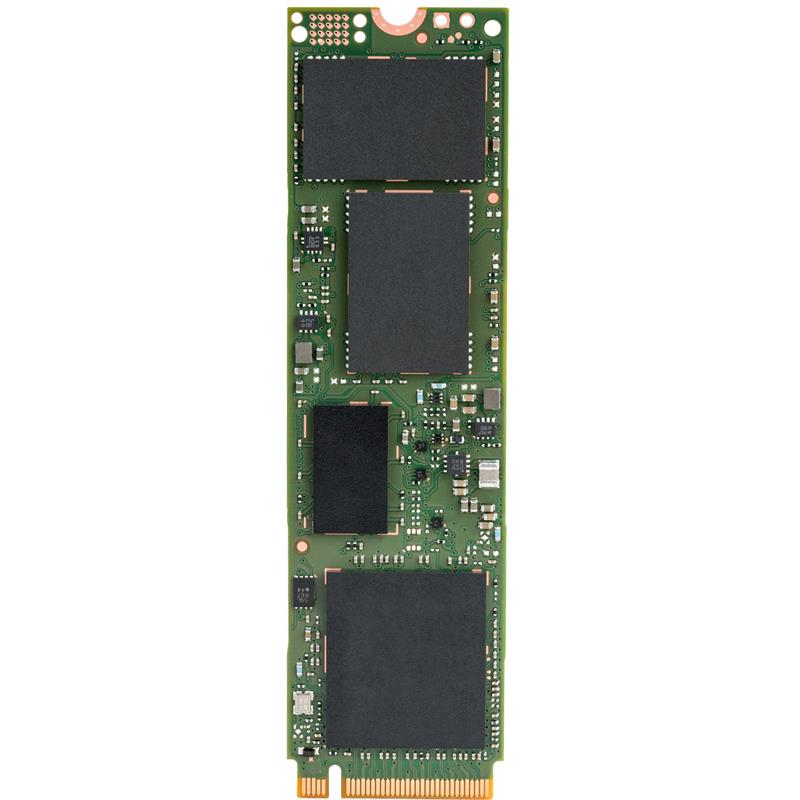

  2. Intel SSDSCKJB150G7 Hard Drive 150GB SATA 6GB/s, M.2, 3D, MLC 22x80mm (1DWDP) - DC S3520 Series
Intel SSDSCKJB150G7 Hard Drive 150GB SATA 6GB/s, M.2, 3D, MLC 22x80mm (1DWDP) - DC S3520 Series

Intel SSDSCKJB150G7 Hard Drive 150GB SATA 6GB/s, M.2, 3D, MLC 22x80mm (1DWDP) - DC S3520 Series

• Data integrity; performance consistency
• Encrypted - 150GB - 16nm multi-level cell
• 15% lower idle power; 30% lower active power
• Delivery of 35% more rack performance per watt

Hard Drive 150GB SATA 6GB/s, M.2, 3D, MLC 22x80mm (1DWDP) - DC S3520 Series

This product is no longer available.

• Delivery of 35% more rack performance per watt
• Modernize your data center storage and make the switch from HDDs to the Intel® SSD DC S3520 Series
• the Intel SSD DC S3520 Series delivers the unmatched combination of data integrity, performance consistency, and drive reliability

Extra Specifications for Intel SSDSCKJB150G7 Hard Drive 150GB SATA 6GB/s, M.2, 3D, MLC 22x80mm (1DWDP) - DC S3520 Series

Main Specifications
Capacity150GB
Form FactorM.2 22 x 80mm
InterfaceSATA 3.0 6Gb/S
NAND Flash Memory Type16nm multi-level cell (MLC)
Weight9 grams +/- 1 gram
Included Quantity1
Performance
4KB Random Read40000 IOPS
4KB Random Write27500 IOPS
Read170 MB/s
SSD Endurance412 TBW
Miscellaneous
MTBF2 million hours
FeaturesEnhanced Power Loss Data Protection, Hardware Encryption: AES 256 bit, Temperature Monitoring and Logging, End-to-End Data Protection
Environmental Parameters
Min Operating Temperature0C to 70C
Shock ToleranceOperating and Non-Operating: 1000G/0.5ms
Vibration ToleranceOperating: 2.17 GRMS (5-700 Hz)
Non-Operating: 3.13 GRMS (5-800 Hz)
Power
Power DevicePower - Idle 600 mW
Power - Active 2 W

Warranty:5 years
Coverage:Replacement or repair
Average Service Time:1-2 weeks
