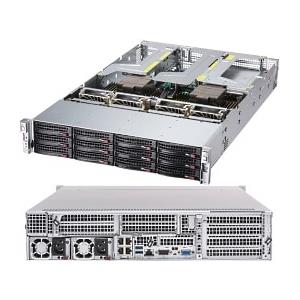

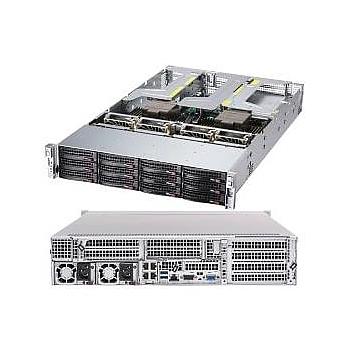

Supermicro AS-2023US-TR4 2U Barebone Dual AMD Processor
• Virtualization
• Hyperconverge Storage
• Cloud Computing
• High End Enterprise Server
• Flexible Networking Options
Barebone 2U Rack Server Socket-SP3 for Dual AMD EPYC 7000-Series Processors, support up to 4TB DDR4 Registered ECC 2666Mhz SDRAM in 32 DIMM slots; Onboard 12 SATA3 ports; 4 Gigabit LAN ports; Backplane support for 12 SAS3 or 8 SAS3 + 4 NVMe (with optional controller) - (MBD-H11DSU-iN + CSE-829U2TS-R1K62P-T) - AS -2023US-TR4
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 HDD/NVMe.
1. Dual AMD EPYC™ 7001/7002 * Series Processors ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors) 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
3. Expansion slots: 1 PCI-E 3.0 x16 slot (FH, 10.5" L) 5 PCI-E 3.0 x8 slots (FH, 9.5" L) 1 PCI-E 3.0 x8 slot (LP) 1 PCI-E 3.0 x8 (internal proprietary LP slot) [ Details ]
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. Quad Gigabit LAN ports via Intel i350AM4
6. 12 hot-swap 3.5" Drive Bays: 12 SATA3 by default or 8 SATA3 + 4 NVMe (optional supported) or 12 SAS3 (SAS Add-on card is optional)
7. 1600W Redundant Power Supplies Titanium Level (96%+) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2023US-TR4 2U Barebone Dual AMD Processor
| Product SKUs | ||
| AS -2023US-TR4 | A+ Server 2023US-TR4 | |
| Motherboard | ||
| Motherboard | H11DSU-iN | |
| Processor/Chipset | ||
| CPU | Dual AMD EPYC™ 7001/7002 * series Processors ( * Board revision 2.x required ) | |
| Socket SP3 | ||
| Supports CPU cTDP up to 280W ** | ||
| Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) | |
| Up to 64 Cores (Board revision 2.x + 7002 Processors) | ||
| Chipset | System on Chip (SoC) | |
| Note | ** Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory Capacity | 8-channel memory bus | |
| 32 DIMM slots | ||
| Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) | ||
| Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) | ||
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors) | |
| DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB * ( * Board revision 2.x required + 7002 Processors ) | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| SATA | SATA3 (6 Gbps) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | Provided via Ultra Riser Card | |
| VGA | ASPEED AST2500 BMC | |
| Expansion Slots | ||
| 2U | 1 PCI-E 3.0 x16 slot (FH, 10.5" L) | |
| 5 PCI-E 3.0 x8 slots (FH, 9.5" L) | ||
| 1 PCI-E 3.0 x8 slot (LP) | ||
| 1 PCI-E 3.0 x8 (internal proprietary LP slot) | ||
| Input / Output | ||
| SATA | 12 SATA3 (6 Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Quad Gigabit LAN ports | ||
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| VGA | 1 VGA port | |
| SAS | 12 SAS3 ports support via optional Add-on Card | |
| NVMe | 4 NVMe support with optional cables | |
| Others | TPM 1.2 header | |
| 1 COM port (rear) | ||
| 2 SATA DOM power connector | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||
| Chassis | ||
| Form Factor | 2U | |
| Model | CSE-829U2TS-R1K62P-T | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |

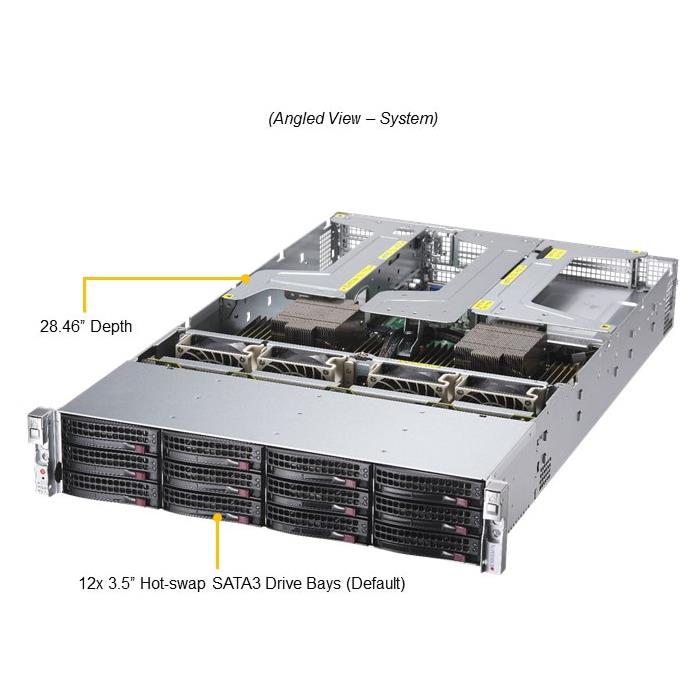

| Depth | 28.46" (723mm) | |
| Package | 9.96" (H) 24.60" (W) 45.43" (D) | |
| Weight | Net Weight: 36 lbs (16.4 kg) | |
| Gross Weight: 72 lbs (32.7 kg) | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Drive Bays | ||
| Hot-swap | 2 rear hot-swap 2.5" drive bays | |
| 12 hot-swap 3.5" Drive Bays: 12 SATA3 by default Optional Drive Support: 8 SAS3 + 4 SAS3/NVMe | ||
| 12 SATA3 by default | ||
| Optional Drive Support: 8 SAS3 + 4 SAS3/NVMe | ||
| Backplane | ||
| HDD Backplane | Supports 12 SATA3 or 8 SATA3 + 4 NVMe or 12 SAS3 HDD | |
| System Cooling | ||
| Fans | 4 heavy-duty PWM fans with optimal fan speed control | |
| Power Supply | ||
| Power Supply | 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | 1600W/1000W | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 13 - 9A / 50-60Hz | |
| 200-240Vac / 10 - 8A / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100-127Vac) | |
| Max: 133A / Min: 0A (200-240Vac) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
| CPU switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 8-fan status tachometer monitoring | ||
| Up to eight 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| Thermal control for 8x Fan connectors | ||
| I 2 C Temperature Sensing Logic | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard | MBD-H11DSU-iN | 1 | Super H11DSU-iN Motherboard | |
| Chassis | CSE-829U2TS-R1K62P-T | 1 | 2U Chassis | |
| Add-on Card / Module | AOC-2UR68-I4G-P | 1 | 2U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports, 1 internal PCI-E x8 3.0 slot, 1 PCI-E x16 3.0, and I PCI-E x8 3.0 (in x16 slot) | |
| Backplane | BPN-SAS3-826A-N4 | 1 | 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-PWEX-0673 | 2 | 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH | |
| Cable 2 | CBL-SAST-0657 | 3 | MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG | |
| Parts | MCP-290-82915-0N | 1 | 2U internal cable management holder | |
| Manual | MNL-1961-QRG | 1 | AS-2023US-TR4 Quick Reference Guide | |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot | |
| Riser Card | RSC-R2UW-4E8 | 1 | 2U LHS WIO Riser card with four PCI-E x8 slots | |
| SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | ||
| Heatsink / Retention | SNK-P0063P | 2 | 2U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| Power Supply | PWS-1K62A-1R | 2 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH | |
| FAN 1 | FAN-0118L4 | 4 | 80 x 80 x 38 mm, 9.5K RPM, 4-pin PWM Fan, Hot |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Storage Control Card and Cable(s) | AOC-S3008L-L8e | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR / 16DD | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) | AOC-SAS3-9361-16I | 0 | MegaRAID SAS 9361-16i | |||
| Storage Control Card and Cable(s) | AOC-S3616L-L16IT | $ 458.50 | 0 | 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP | ||
| GPU Kit | AOC-2UR66-I4G | $ 136.00 | 1 | 2U Ultra Riser with 4 GbE ports and 2 PCI-E x16 3.0, Intel i350 | ||
| GPU Kit | RSC-W2-66 | $ 53.00 | 1 | RSC-W2-66 | ||
| GPU Kit | FAN-0166L4 | $ 47.50 | 4 | 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4) | ||
| GPU Kit | SNK-P0062P | $ 52.00 | 2 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors | ||
| GPU Kit | MCP-310-00091-0B | $ 31.50 | 1 | Ultra 2U GPU Air Shroud Kit for AMD | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | $ 279.00 | 0 | CacheVault for Broadcom 3108 | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | $ 279.00 | 0 | CacheVault for Broadcom 3108 | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00043-0N | $ 26.00 | 0 | STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00118-0B | $ 31.50 | 0 | STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray. | ||
| Optional Kit for NVMe solution | MCP-220-00116-0B | $ 33.50 | 0 | Black gen-5 3.5"-to-2.5" NVMe drive tray, Orange tab (for hotswap NVMe drive) | ||
| Optional Kit for NVMe solution | MCP-220-00138-0B | $ 43.00 | 0 | Black gen-5.5 tool-less NVMe 3.5"-to-2.5" drive tray, Orange tab | ||
| Additional HDD Kit | MCP-240-82922-0N-OEM | $ 147.00 | 0 | Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U | ||
| 2U Cable Management Arm | MCP-290-00128-0N &MCP-290-00127-0N | 1 | 2U Supermicro Cable Management Arm 2nd Gen | |||
| Ultra 2U Front Bezel | MCP-210-82601-0B | $ 31.00 | 0 | - | ||
| 1 Internal M.2 slot(NVMe) | RSC-UMR-8 | $ 45.00 | 1 | 1U Ultra RHS Riser Card with 1 PCI-E (up to 22110) | ||
| 1 Internal M.2 slot(SATA) | RSC-UMR-8 | $ 45.00 | 1 | 1U Ultra RHS Riser Card with 1 SATA M.2 (up to 22110) | ||
| 2 Internal M.2 slots(NVMe 2260 + SATA 2260) | RSC-UMR-8 | $ 45.00 | 1 | 1U Ultra RHS Riser Card with 1 PCI-E/SATA Hybrid M.2 & 1 PCI-E x8 (up to 2260 for each device) | ||
| M.2 by AOC | AOC-SLG3-2M2 | $ 54.00 | 1 | LP, PCIe3 x8, Dual port NVMe M.2 carrier | ||
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665V | $ 43.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
