- Supermicro SYS-E100-9S 3.5" SBC IoT Barebone Embedded Intel Core i7-7600U Processor 7th Generation
Supermicro SYS-E100-9S 3.5" SBC IoT Barebone Embedded Intel Core i7-7600U Processor 7th Generation
• IoT Gateway for Smart
• Factory/Building/Home
• Kiosk, Interactive info system
• Environmental Monitor
3.5" SBC IoT Barebone, Embedded Intel Core i7-7600U Processor 7th Generation, 2.80GHz 2-Core/4 Thread/4MB Cache. Supports up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2133MHz in 2x SO-DIMM socket, 1 M.2 B-Key 2280, 1 Full Mini-PCIe. Dual GbE LAN with Intel i219M + i210IT. 1 Display Port, 1HDMI port - Fanless Design (MBD-X11SSN-H + CSE-E101-01 Chassis)
This product is no longer available.
1. 7th Generation Intel® Core™ i7-7600U Processor; Single Socket FCBGA 1356
2. System-on-Chip
3. 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E
4. Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2133MHz; 2 DIMM slots
5. Dual GbE LAN w/ Intel i219LM + i210IT

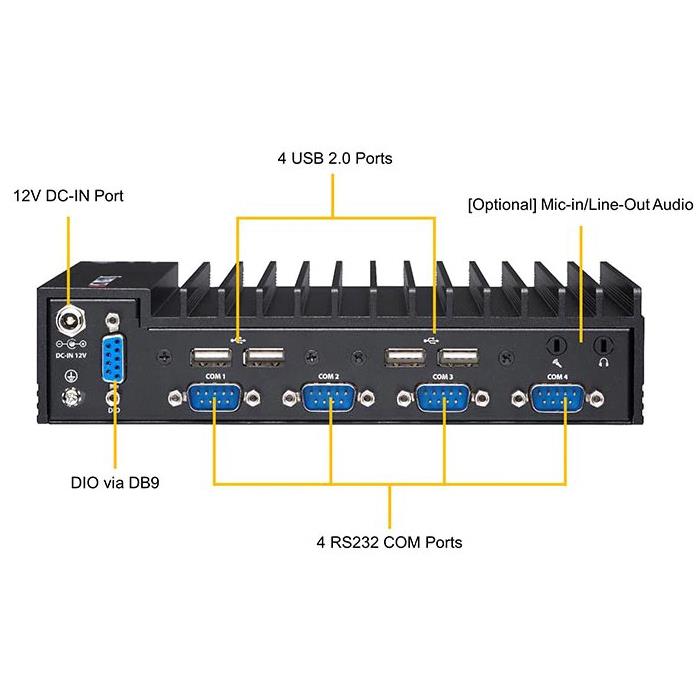

6. 4 COM (RS-232/422/485), 2 USB 3.0, 4 USB 2.0, 1 DIO via DB9

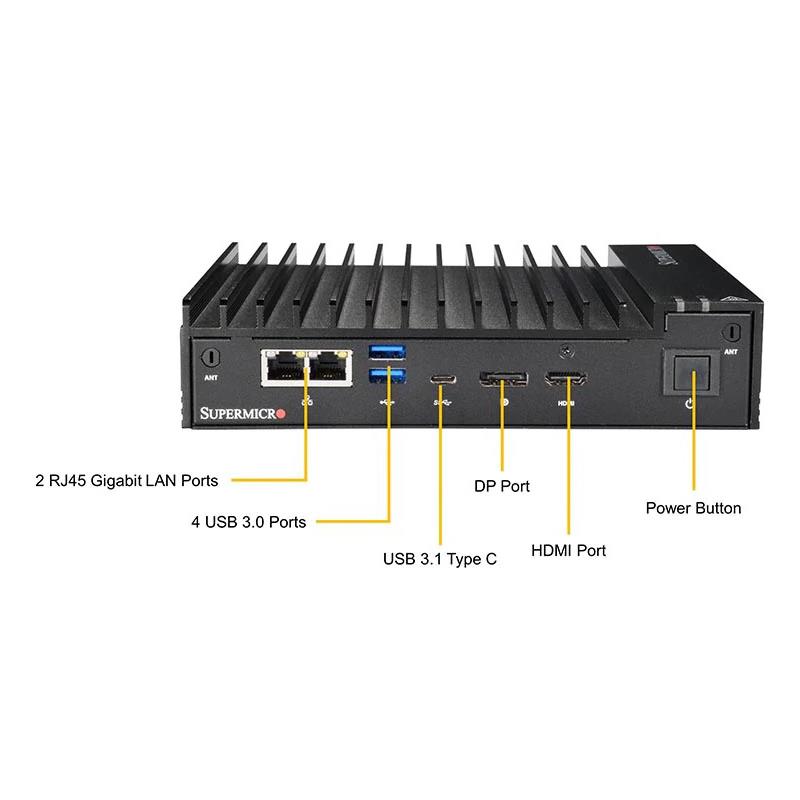

7. 1 Display Port, 1 HDMI port
8. Fanless design
9. Lockable 12V DC 60W power adapter
Extra Specifications for Supermicro SYS-E100-9S 3.5" SBC IoT Barebone Embedded Intel Core i7-7600U Processor 7th Generation
| Motherboard | ||

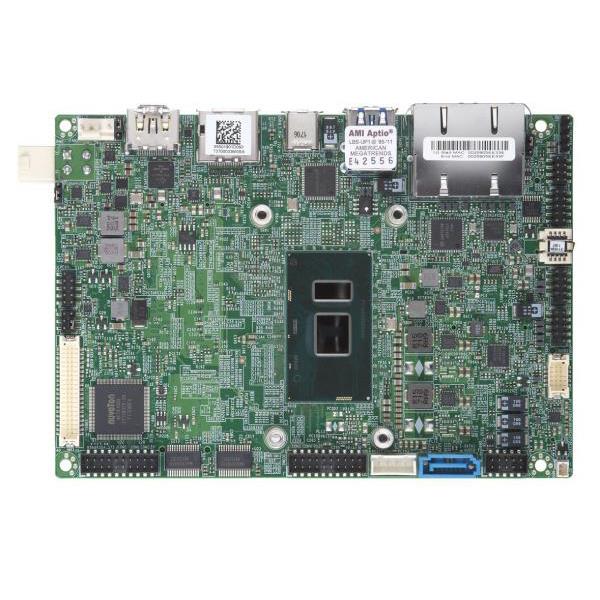

| Motherboard | Super X11SSN-H-WOHS | |
| Processor/Cache | ||
| CPU | System-on-Chip | |
| CPU TDP support 15W | ||
| 7th Generation Intel® Core i7-7600U Processor | ||
| Single Socket FCBGA 1356 | ||
| System Memory | ||
| Memory Capacity | Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots | |
| Memory Type | DDR4 up to 2133MHz | |
| DIMM Sizes | 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Single LAN with Intel® PHY I219LM | |
| Single LAN with Intel® I210IT | ||
| Video | Intel® HD Graphics 620 | |
| Input / Output | ||
| USB | 1 USB 3.1 (Type C) | |
| 2 USB 3.0 (rear via header) | ||
| 4 USB 2.0 (rear via headers) | ||
| Video Output | 1 DP (Display Port) port | |
| 1 HDMI port | ||
| COM Port | 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control | |
| 4 COM ports (4 headers) | ||
| Audio | 1 HD Audio header (Mic-in/Line-Out) (option) | |
| Others | 8-bit configurable GPIO via DB9 | |
| Chassis | ||
| Form Factor | 3.5" SBC | |
| Model | CSE-E101-01 | |

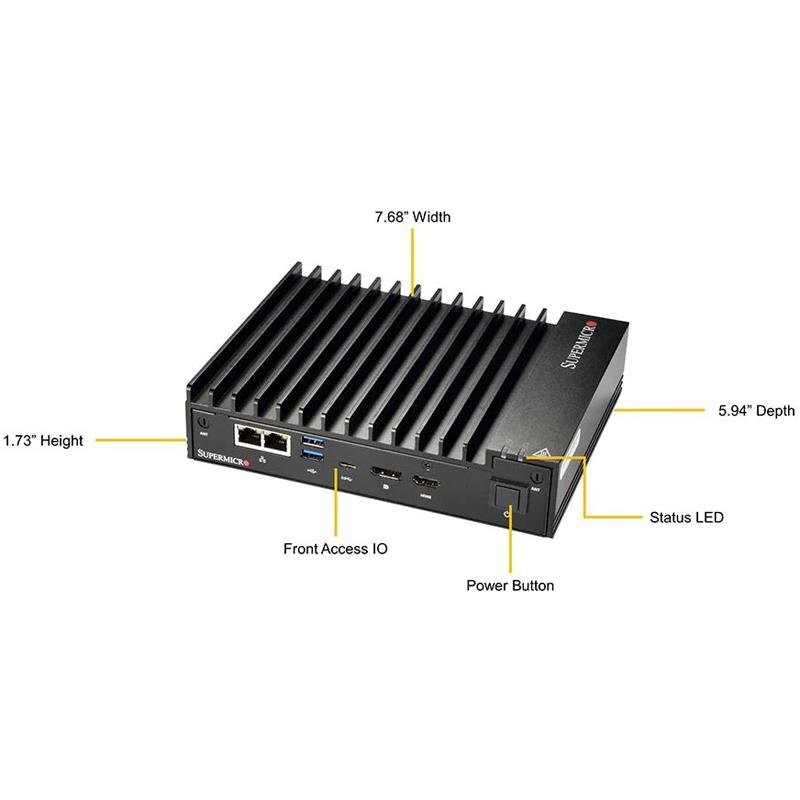

| Dimensions | ||
| Width | 7.68" (195mm) / 11.81" (300mm) - pkg. | |
| Height | 1.73" (44mm) / 5.12" (130mm) - pkg. | |
| Depth | 5.94" (151mm) / 11" (279mm) - pkg. | |
| Weight | Net Weight: 2.65 lbs (1.2 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED and Hard drive activity LED | |
| Expansion Slots | ||
| PCI-Express | 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2, 1 SATA Gen3) | |
| M.2 | Interface: SATA and PCIe 3.0 x1 and USB 2.0 | |
| Form Factor: B-Key 2280 | ||
| Drive Bays | ||
| Internal | 1 M.2 2280 B-Key for SATA or PCIe SSD | |
| System Cooling | ||
| Fans | Fan-less design | |
| Power Supply | ||
| Power Supply | Lockable 12V DC 60W power adapter | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | Watch Dog | |
| AMT | ||
| vPro | ||
| SuperDoctor® 5 | ||
| Power Configurations | +12V DC Power Input | |
| ACPI Power Management | ||
| Control of power-on for recovery from AC power loss | ||
| Force Power On by Jumper | ||
| CPU thermal trip support for processor protection | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature. | ||
| Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow | ||
| Product SKUs | ||
| Product SKUs | SuperServer E100-9S (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SSN-H-WOHS | 1 | Super X11SSN-H-WOHS Motherboard | |
| Motherboard / Chassis | CSE-E101-01 | 1 | Chassis for Embedded 3.5" SBC | |
| Power Adapter | MCP-250-10134-0N | 1 | 60W DC power adapter with US power cord 18AWG 6ft (0-40°C) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
