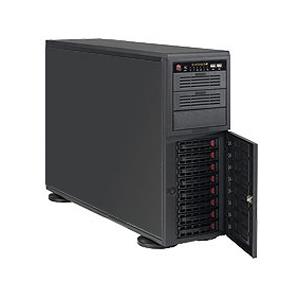

Supermicro CSE-743AC-1200B-SQ SuperChassis 4U / Full Tower Chassis 1200W
SuperChassis 8x 3.5in SAS3/SATA3 Backplane for Hot-Swappable Drives Whisper-Quiet Front HDD Door Lock & Side Panel Intrusion Switch Front I/O Ports: 2x USB 3.0, 2x 8cm PWM Fans & 1x 9cm Rear PWM Fan, 4U / Full Tower Chassis 1200W Platinum Level Certified High-Efficiency Power Supply 3x 5.25in External HDD Drive Bays - SC743AC-1200B-SQ
1. 8x 3.5"/2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives
2. Whisper-Quiet (<27dB)
3. Front HDD Door Lock & Side Panel Intrusion Switch
4. Front I/O Ports: 2x USB 3.0
5. 2x 8cm PWM Fans & 1x 9cm Rear PWM Fan
6. 4U / Full Tower Chassis Supports max. Motherboard, Sizes E-ATX 12" x 13"/ATX/Micro ATX
7. 1200W Platinum Level Certified High-Efficiency Power Supply
8. 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives
Extra Specifications for Supermicro CSE-743AC-1200B-SQ SuperChassis 4U / Full Tower Chassis 1200W
Front Panel | ||
Buttons | Power On/Off button | |
System Reset Button | ||
LEDs | Unit Identification (UID) LED | |
Power Status LED | ||
2 Network Activity LEDs | ||
HDD activity LED | ||
Fan Fail/System Over Heat LED | ||
Ports | 2x USB 3.0 Port(s) | |
Power Supply | ||
Certification | Platinum Certified | |
Power Supply | PS2/ATX 1000/1200W Multi-output power supply, platinum level, Super quiet W/PMbus | |
Power Efficiency | 93% | |
Total Output Power and Input | 1000W with Input 100 - 114.9Vac | |
1200W with Input 114.9 - 240Vac | ||
AC Input Frequency | 50-60Hz | |
Dimensions (L x W x H) | 185 x 150 x 86 mm | |
Output Type | 24pin ATX | |
-12V | Max: 0.3A / Min: 0A | |
+12V | Max: 83A / Min: 1A (100Vac - 115Vac) | |
Max: 99A / Min: 1A (115Vac - 240Vac) | ||
+5V | Max: 20A / Min: 0.3A | |
+3.3V | Max: 20A / Min: 0.3A | |
+5Vsb | Max: 3A / Min: 0A | |
+12Vsb | Max: NAA | |
Regulatory (Power Supply) | ||
Power Supply Safety / EMC | CCC | |
BSMI | ||
CE/EMC | ||
TUV/CB | ||
UL/CUL | ||
FCC class B | ||
Product SKUs | ||
Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply | |
Form Factor | ||
Form Factor | 4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX | |
Processor Support | ||
Processor Support | Dual and Single Intel® and AMD processors | |
Dimensions | ||
Height | 17.8" (452 mm) | |
Width | 7" (178 mm) | |
Depth | 25.5" (647 mm) | |
Net Weight | 53 lbs (24.04 kg) | |
Gross Weight | 56 lbs (25.4 kg) | |
Packaging (W x H x L) | 24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm) | |
Available Color | Black | |
Expansion Slots | ||
Expansion Slots | 7 full-height & full-length expansion slot(s) | |
Drive Bays | ||
Drive Bays | 8 x 3.5"/2.5" hot-swap SAS drive bay with SES3 | |
Backplane | ||
Backplane | 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis | |
Peripheral Drives | ||
Peripheral Drives | 2 x standard 5.25" drive bay | |
90 degree rotatable drive cage | ||
Systems Cooling | ||
Fans | 2 x 80mm PWM Chassis Middle Fans | |
1 x 92mm PWM Rear fan(s) | ||
Operating Environment (System) | ||
Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Mounting Rail | CSE-PT26L-(B) | 0 | - | |||
Cable | CBL-0157L | $ 18.50 | 0 | 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF | ||
Cable | CBL-0454L | $ 20.00 | 0 | USB 3.0 to 2.0 Adapter Cable 30cm (19 pin Male to 9 pin Female). 28/24AWG | ||
Heatsink / Retention | - | 0 | Please refer to our Thermal Components Matrix | |||
Peripheral Drive(s) | DVM-LITE-DVDRW24-HBT | $ 44.00 | 0 | BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF | ||
HDD Tray | MCP-220-00080-0B | $ 26.50 | 0 | Black hotswap gen 2 3.5 to 2.5 HDD tray |
Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
