- Supermicro A2SAN-E-WOHS-O Motherboard Intel Atom Processor E3940, 4-Core (4-Threads), socket FCBGA 1296, up to 8GB Unbuffered non-ECC SO-DIMM DDR3

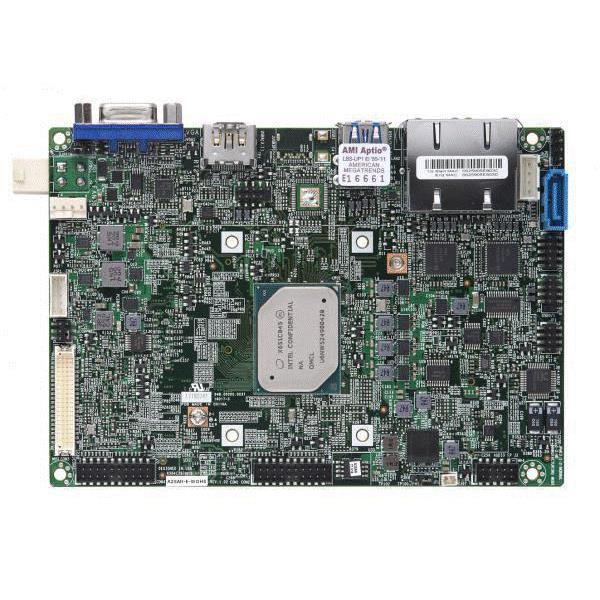

Supermicro A2SAN-E-WOHS-O Motherboard Intel Atom Processor E3940, 4-Core (4-Threads), socket FCBGA 1296, up to 8GB Unbuffered non-ECC SO-DIMM DDR3
• Intel HD Graphic 3 independent displays
• SoC controller for 1 SATA3 (6 Gbps) ports
• Intel Atom Processor E3940 with 4 cores; 4 threads
• Up to 8GB 1866MHz DDR3L Non-ECC; in 1 DIMM slot
Motherboard Intel Atom Processor E3940, 4-Core (4-Threads), socket FCBGA 1296, up to 8GB Unbuffered non-ECC SO-DIMM DDR3-1866Mhz memory. System on Chip with 1 SATA3 port, 1 M.2 B-Key, Mini PCIe, 1 HDMI, 1 VGA, 48-bit LVDS, 2 USB 3.0, 4 USB 2.0 - MBD-A2SAN-E-WOHS-O
• Supports 12V DC power input
• Intel Atom processor E3940 (9.5W, 4C)
• Wide temperature suppot from -30°C to 75°C
• Dual LAN with Intel® Ethernet Controller I210-IT
• 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E, 1 SATA 3.0
• Intel Goldmont microarchitecture 14nm System-on-Chip
• Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
• 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel HD Graphic 3 independent displays
• 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
Extra Specifications for Supermicro A2SAN-E-WOHS-O Motherboard Intel Atom Processor E3940, 4-Core (4-Threads), socket FCBGA 1296, up to 8GB Unbuffered non-ECC SO-DIMM DDR3
| Main Specifications | ||
| Device Type | Motherboard | |
| Dimensions (WxDxH) | 5.7" x 4.0" (14.6cm x 10.16cm) | |
| Form Factor | 3.5" SBC | |
| Type | Intel HD Graphics | |
| Processor | ||
| Cache | 4 cores, 4 threads / 2MB L2 cache | |
| Compatible Processors | Intel Atom Processor E3940. | |
| Processor Sockets | Single Socket FCBGA1296 supported, CPU TDP support 9.5W | |
| System Memory | ||
| DIMM Sizes | 2GB, 4GB, 8GB | |
| Memory Capacity | Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1866MHz, in 1 DIMM slot | |
| Memory Voltage | 1.35V | |
| Cache Memory | ||
| Memory Type | DDR3L up to 1866Mhz 8GB | |
| Input / Output | ||
| Audio | ALC 888S HD Audio | |
| SATA | SoC controller for 1 SATA3 (6 Gbps) ports, | |
| 1 SATA3 (6Gbps) port | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| Others | 1 HD Audio header (Mic-in/Headphone-out) | |
| 1 8-bit GPIO header | ||
| 1 SMbus header | ||
| 1 Panel backlight power header | ||
| 1 Speaker | ||
| 1 System Fan | ||
| Serial Port / Headers | 4 COM Ports (4 headers), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control) | |
| VGA | 1 VGA port, 1 48-bit LVDS port, 1 HDMI port | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Dual LAN with Intel Ethernet Controller I210IT | |
| TPM | 1 TPM Chip | |
| USB | 4 USB 2.0 ports (4 headers) | |
| 2 USB 3.0 ports (2 rear) | ||
| Environmental Standards | ||
| Non-operating Relative Humidity | 10% ~ 95% (non-condensing) | |
| Non-operating Temperature | -40C - 85C (-40F - 185F) | |
| Environmental | ||
| Operating Relative Humidity | 8% - 90% (non-condensing) | |
| Environmental Parameters | ||
| Operating Temperature | -30C ~ 75C (-22F ~ 167F) | |
| Temperature | CPU thermal trip support | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | PCI-E: 1x Full size Mini-PCI-E (USB2.0 x 1x PCI-E Gen2 x 1) | |
| PCI-E: 1x M.2 2280 B-Key for SATA or PCI-E SSD (2242/3042 B-key M.2 module is supported by extender bracket) | ||
| M.2: M.2 Interface: SATA and PCI-E 2.0 x1 and USB 2.0 | ||
| M.2: Form Factor: 2280 | ||
| M.2: Key: B-Key | ||
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | +12V DC Power Input | |
| ACPI Power Management | ||
| Control of power-on for recovery from AC power loss | ||
| Force Power On by Jumper | ||
| Software | SuperDoctor 5, Watchdog | |
| PC Health Monitoring | ||
| FAN | 1x 4-pin fan header (up to 1 fan), Fan speed control, Low noise fan speed control, PWM fan speed control, System level control, Thermal control tachometer fan connectors | |
| LED | Standby alert LED | |
| Other Features | 4-pin 12v DC power connector, ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, System level control, WOL | |
| Voltage | +1.35V, +12V, +3.3V, +5V, 3.3V standby, System level control, System temperature, VBAT, VCGI | |
| Parts List | ||
| I/O Cables | 1x CBL-CUSB-0984, 1x CBL-PWEX-0982, 1x CBL-CUSB-0983, 1x CBL-SAST-0538, 1x CBL-OTHR-0986 | |
| Motherboard | 1x MBD-A2SAN-E-WOHS | |
| QRG | 1x MNL-1935-QRG | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
