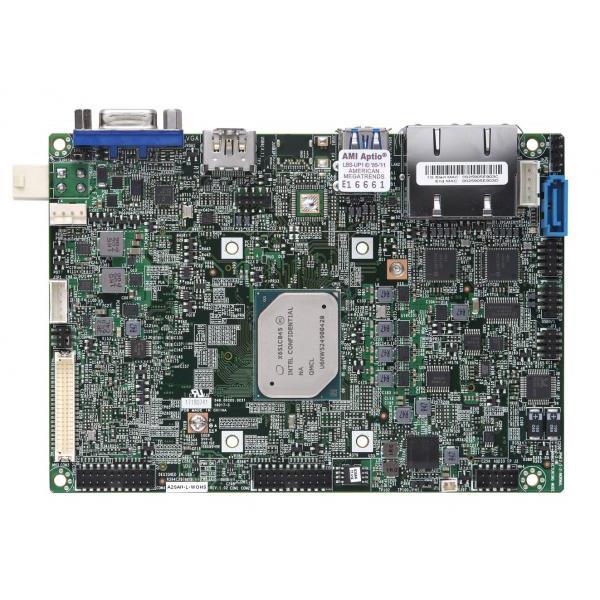

- Supermicro A2SAN-L-WOHS Motherboard Intel Atom Processor E3940, 2-Core (2-Threads), socket FCBGA 1296, up to 8GB Unbuffered non-ECC SO-DIMM DDR3
Supermicro A2SAN-L-WOHS Motherboard Intel Atom Processor E3940, 2-Core (2-Threads), socket FCBGA 1296, up to 8GB Unbuffered non-ECC SO-DIMM DDR3
Intel Atom E3930 processor (6.5W, 2C)
Dual LAN with Intel I210-IT Ethernet controller
1 M.2 B-Key 2280, 1 full-size Mini-PCIe, 1 SATA 3.0
Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
Motherboard Intel Atom Processor E3940, 2-Core (2-Threads), socket FCBGA 1296, up to 8GB Unbuffered non-ECC SO-DIMM DDR3-1866Mhz memory. System on Chip with 1 SATA3 port, 1 M.2 B-Key, Mini PCIe, 1 HDMI, 1 VGA, 48-bit LVDS, 2 USB 3.0, 4 USB 2.0, 1 HD Audio - MBD-A2SAN-L-WOHS-O
1. Supports 12V DC power input
2. Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
3. Intel® Atom processor E3930 (6.5W, 2C)
4. Dual LAN with Intel® Ethernet Controller I210-IT
5. 1 M.2 B-Key 2280, 1 Full size Mini-PCIe, 1 SATA 3.0
6. Intel® Goldmont microarchitecture 14nm System-on-Chip
7. 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
8. 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel® HD Graphic 3 independent displays
9. Wide temperature suppot from -30°C to 75°C
Extra Specifications for Supermicro A2SAN-L-WOHS Motherboard Intel Atom Processor E3940, 2-Core (2-Threads), socket FCBGA 1296, up to 8GB Unbuffered non-ECC SO-DIMM DDR3
| System Memory | ||
| DIMM Sizes | 2GB, 4GB, 8GB | |
| Memory Capacity | 1 DIMM slots | |
| Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MHz | ||
| Memory Voltage | 1.35V | |
| Memory Type | 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210IT | |
| SATA | SoC controller for 1 SATA3 (6 Gbps) ports | |
| Audio | ALC 888S HD Audio | |
| Graphics | 1 Intel® HD Graphics port(s) | |
| Input / Output | ||
| SATA | 1 SATA3 (6Gbps) port(s) | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| Others | 1 HD Audio header (Mic-in/Headphone-out) | |
| 1 8-bit GPIO header | ||
| 1 Panel backlight power header | ||
| 1 Speaker | ||
| 1 System Fan | ||
| 1 SMBus header | ||
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 4 USB 2.0 port(s) (4 via header) | ||
| Video Output | 1 VGA port(s), 1 HDMI port(s), 1 48-bit LVDS port(s) | |
| Serial Port | 4 COM Port(s) (4 header) | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | ACPI 6.0 | |
| SMBIOS 3.0 | ||
| PCI FW 3.0 | ||
| UEFI 2.5 | ||
| Management | ||
| Power Configurations | ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper | |
| Software | SuperDoctor® 5, Watchdog | |
| System Management Software | SuperDoctor 5 | |
| PC Health Monitoring | ||
| FAN | Low noise fan speed control | |
| Fan speed control | ||
| PWM fan speed control | ||
| System level control | ||
| Thermal control tachometer fan connectors | ||
| 1x 4-pin fan header (up to 1 fan) | ||
| LED | Standby alert LED | |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 4-pin 12v DC power connector | |
| Voltage | VBAT, System temperature, System level control, 3.3V standby, +5V, +3.3V, +12V, +1.35V, VCGI | |
| Temperature | CPU thermal trip support | |
| Product SKUs | ||
| Product SKUs | MBD-A2SAN-L-WOHS | |
| Physical Stats | ||
| Form Factor | 3.5" SBC | |
| Dimension | 5.7" x 4" (14.6cm x 10.16cm) | |
| Processor | ||
| CPU | Intel® Atom® Processor E3930 | |
| Single Socket FCBGA-1296 supported, CPU TDP supports Up to 6.5W TDP | ||
| Core | Up to 2 cores, 2 threads / 2MB Cache | |
| Note | ||
| Expansion Slots | ||
| PCIe | 1 x Full size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1) | |
| 1 x M.2 2280 B-Key for SATA or PCIe SSD (2242/3042 B-key M.2 module is supported by extender bracket) | ||
| M.2 | Form Factor: 2280 | |
| Key: B-Key | ||
| M.2 Interface: SATA; PCIe 2.0 x1; USB 2.0 | ||
| Operating Environment | ||
| Operating Temperature Range | -30°C - 75°C (-22°F - 167°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
