- Supermicro A2SAP-E-O Motherboard Intel Atom Processor E3940 SoC, Up to 8GB DDR3 1866MHz Unbuffered non-ECC SO-DIMM, Dual GbE LAN ports, 1× SATA3

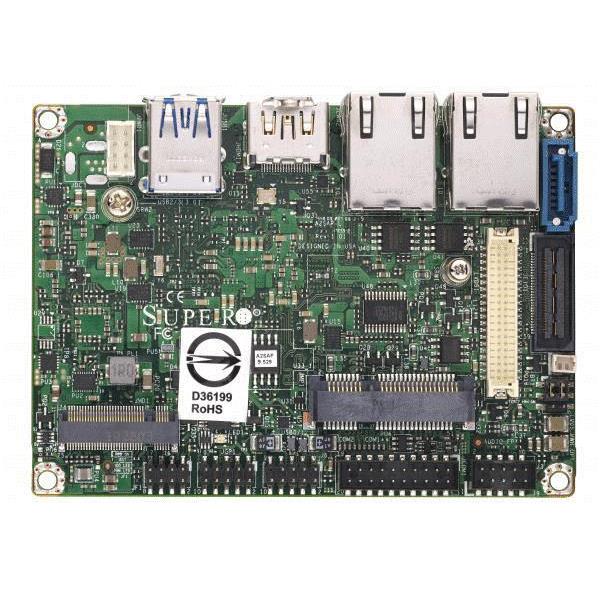

Supermicro A2SAP-E-O Motherboard Intel Atom Processor E3940 SoC, Up to 8GB DDR3 1866MHz Unbuffered non-ECC SO-DIMM, Dual GbE LAN ports, 1× SATA3
Intel Atom E3940 processor (9.5W, 4 cores)
Dual LAN with Intel I210-IT Ethernet controller
Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
Expansion: 1 M.2 B-Key 2242/3042, 1 half-size Mini-PCIe, 1 SATA 3.0
Motherboard Intel Atom Processor E3940 SoC, Up to 8GB DDR3 1866MHz Unbuffered non-ECC SO-DIMM, Dual GbE LAN ports, 1× SATA3, 1 HDMI, 1 LVDS, 2× USB 3.0, 2× USB 2.0, 8-bit GPIO SMBus TPM - MBD-A2SAP-E-O
1. Supports 12V DC power input
2. Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
3. Intel® Atom processor E3940 (9.5W, 4C)
4. Dual LAN with Intel® Ethernet Controller I210-IT
5. 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCIe, 1 SATA 3.0
6. Intel® Goldmont microarchitecture 14nm System-on-Chip
7. 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
8. Wide temperature suppot from -30°C to 75°C
9. 2 USB 3.0 ports (rear), 2 USB 2.0 ports (via headers), 2 COM ports (via headers)
Extra Specifications for Supermicro A2SAP-E-O Motherboard Intel Atom Processor E3940 SoC, Up to 8GB DDR3 1866MHz Unbuffered non-ECC SO-DIMM, Dual GbE LAN ports, 1× SATA3
| System Memory | ||
| DIMM Sizes | 2GB, 4GB, 8GB | |
| Memory Capacity | 1 DIMM slots | |
| Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MHz | ||
| Memory Voltage | 1.35V | |
| Memory Type | 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210IT | |
| SATA | SoC controller for 1 SATA3 (6 Gbps) ports | |
| Audio | ALC 888S HD Audio | |
| Graphics | 1 Intel® HD Graphics port(s) | |
| Input / Output | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| Others | 1 8-bit GPIO header | |
| 1 SMbus and 5V/A SATA Power bo header | ||
| 1 USB0 | ||
| 1 HD Audio header (Mic-in/Headphone-out) (Note:Audio only support 0~60C) | ||
| 1 24-Pin 2V DC-IN power input bo header (20mm pitch) | ||
| 1 EI/O ( DP/HDMI | ||
| 1 PCI-E 1 | ||
| 1 LPC | ||
| 1 SMBus | ||
| 1 2Vsb 2A | ||
| 1 Vsb 28A)(Note:A2SAP-E/-L does NOT support SATA signal) | ||
| SATA | 1 SATA3 (6Gbps) port(s) | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 2 USB 2.0 port(s) (2 via header) | ||
| Video Output | 1 HDMI port(s), 1 LVDS port(s) | |
| Serial Port | 2 COM Port(s) (2 header) | |
| System BIOS | ||
| BIOS Features | ACPI 6.0 | |
| SMBIOS 3.0 | ||
| PCI FW 3.0 | ||
| UEFI 2.5 | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper | |
| Software | SuperDoctor® 5, Watchdog | |
| System Management Software | SuperDoctor 5 | |
| PC Health Monitoring | ||
| LED | Standby alert LED | |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management | |
| Voltage | VBAT, System temperature, System level control, 3.3V standby, +3.3V, +12V, +1.35V, Memory Voltages, VCGI | |
| Temperature | CPU thermal trip support | |
| Product SKUs | ||
| Product SKUs | MBD-A2SAP-E | |
| Physical Stats | ||
| Form Factor | Pico-ITX | |
| Dimension | 4" x 2.83" (10.16cm x 7.19cm) | |
| Processor | ||
| CPU | Intel® Atom® Processor E3940 | |
| Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP | ||
| Core | Up to 4 cores, 4 threads / 2MB Cache | |
| Note | ||
| Expansion Slots | ||
| PCIe | 1 Half size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1) | |
| 1 EI/O (1 DP/HDMI, 2 PCIe x1, 2 USB2.0, LPC, SATA3, SMBus, 12Vsb 2A, 5Vsb 2.8A) (Note:A2SAP-E/-L does NOT support SATA signal) | ||
| M.2 | M.2 Interface: USB 2.0; SATA; PCIe 2.0 x1 | |
| Key: B-Key | ||
| Form Factor: 3042, 2242 | ||
| Operating Environment | ||
| Operating Temperature Range | -30°C - 75°C (-22°F - 167°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
