- Supermicro A2SAP-L-O Motherboard Intel Atom processor E3930 2-Core

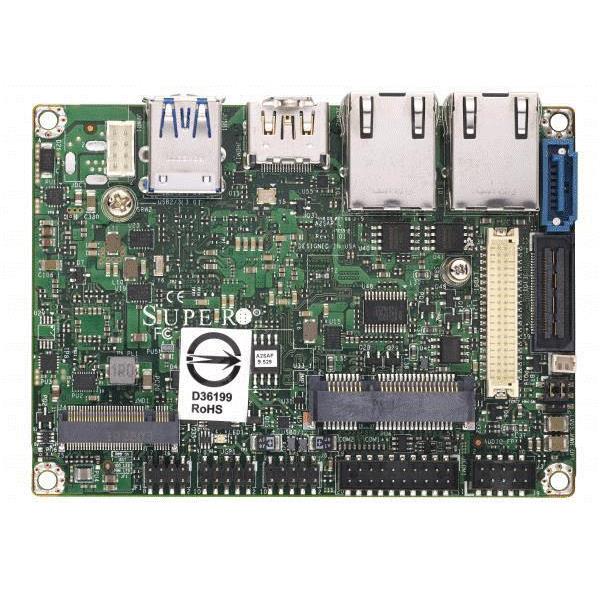

Supermicro A2SAP-L-O Motherboard Intel Atom processor E3930 2-Core
• Intel HD Graphics 2 independent displays
• M.2 Interface: SATA and PCI-E 2.0 x1 and USB 2.0
• Comes w/ more I/O ports & high-speed connectivity
• Intel Atom processor E3930 (6.5W) 2cores; 2threads
Motherboard Intel Atom processor E3930 2-Core, Intel Goldmont 14nm SoC, up to 8GB 1866Mhz DDR3L Non-ECC SO-DIMM in 1 socket, Dual 1GbE LAN, 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCIe, 1 SATA, 1 HDMI, 1 LVDS port, HD Audio - MBD-A2SAP-L-O
• Supports 12V DC power input
• Intel Atom processor E3930 (6.5W, 2C)
• Dual Gigabit Ethernet LAN ports via Intel i210AT
• Intel Goldmont microarchitecture 14nm System-on-Chip
• 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCI-E, 1 SATA 3.0
• Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
• 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays
• Extension I/O (1 DP/HDMI, 2 PCIe x1, 2 USB2.0, LPC, SATA, SMBus, Power)
• 2 USB 3.0 ports (rear), 2 USB 2.0 ports (via headers), 2 COM ports (via headers)
Extra Specifications for Supermicro A2SAP-L-O Motherboard Intel Atom processor E3930 2-Core
| Main Specifications | ||
| Device Type | Motherboard | |
| Dimensions (WxDxH) | 3.9" x 2.8" (9.91cm x 7.11cm) | |
| Form Factor | Pico-ITX 2.5" SBC | |
| Type | Intel HD Graphics | |
| Processor | ||
| Cache | 2 cores, 2 threads | |
| Installed Brand | Intel Atom Processor E3930 | |
| Processor Sockets | Single Socket FCBGA1296 supported, CPU TDP support 6.5W | |
| System Memory | ||
| DIMM Sizes | 4GB, 8GB | |
| Memory Capacity | Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1866MHz, in 1 DIMM slot | |
| Memory Voltage | 1.35V | |
| Cache Memory | ||
| Memory Type | DDR3L up to 1866Mhz 8GB | |
| Input / Output | ||
| Audio | ALC 888S HD Audio | |
| VGA | Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI(max. resolution up to 3840x2160@30Hz) | |
| 1 LVDS port, 1 HDMI port | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| Others | 1 8-bit GPIO header | |
| 1 HD Audio header (Mic-in/Line-Out) | ||
| 1 SMbus/5V SATA Power box header | ||
| 1 2x4-Pin 12V DC-IN power input box header(2.0mm pitch) | ||
| SATA | 1 SATA3 (6Gbps) port | |
| Serial Port / Headers | 2 COM Ports (2 headers), RS232/422/485 | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Dual LAN with Intel Ethernet Controller I210IT | |
| USB | 2 USB 3.0 ports (2 rear) | |
| 2 USB 2.0 ports (2 headers) | ||
| Environmental Standards | ||
| Non-operating Relative Humidity | 10% ~ 95% (non-condensing) | |
| Non-operating Temperature | -40C - 85C (-40F - 185F) | |
| Environmental | ||
| Operating Relative Humidity | 8% - 90% (non-condensing) | |
| Environmental Parameters | ||
| Operating Temperature | 0C ~ 60C (32F ~ 140F) | |
| Temperature | CPU thermal trip support | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | M.2: M.2 Interface: SATA and PCI-E 2.0 x1 and USB 2.0 | |
| PCI-E: 1 Half size Mini-PCI-E (USB2.0 x 1,PCI-E Gen2 x 1) | ||
| PCI-E: 1 M.2 2242/3042 B-Key (USB2.0 x 1,PCI-E Gen2 x 1,SATA Gen3 x 1) | ||
| PCI-E: 1 SMCI EI/O (1 DP/HDMI, 2 PCI-E x1, 2 USB2.0, LPC, SATA3, SMBus, Power)(*SATA signal supported upon request) | ||
| M.2: Form Factor: B-Key 3042, 2242 | ||
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | +12V DC Power Input | |
| ACPI Power Management | ||
| Control of power-on for recovery from AC power loss | ||
| Force Power On by Jumper | ||
| Software | SuperDoctor 5, Watchdog | |
| PC Health Monitoring | ||
| FAN | 1x 4-pin fan header (up to 1 fan) | |
| LED | Standby alert LED | |
| Other Features | ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, System level control, WOL | |
| Voltage | +1.35V, +12V, +3.3V, +5V, 3.3V standby, System level control, System temperature, VBAT, VCGI | |
| Parts List | ||
| Heat Sink | 1x SNK-C0116L | |
| I/O Cables | 1x Audio Cable: CBL-OTHR-0986 | |
| 1x COM Cable: CBL-CUSB-0984 | ||
| 1x USB Cable: CBL-CUSB-0983 | ||
| 1x SATA cable: CBL-SAST-0538 | ||
| 1x SATA Power Cable: CBL-PWEX-1030 | ||
| 1x DC IN Power cable: CBL-PWEX-1029 | ||
| Manual | 1x MNL-1994-QRG | |
| Motherboard | 1x MBD-A2SAP-L | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
