- Supermicro A2SDI-12C-HLN4F-O Motherboard Intel Atom processor C3858 12-Core

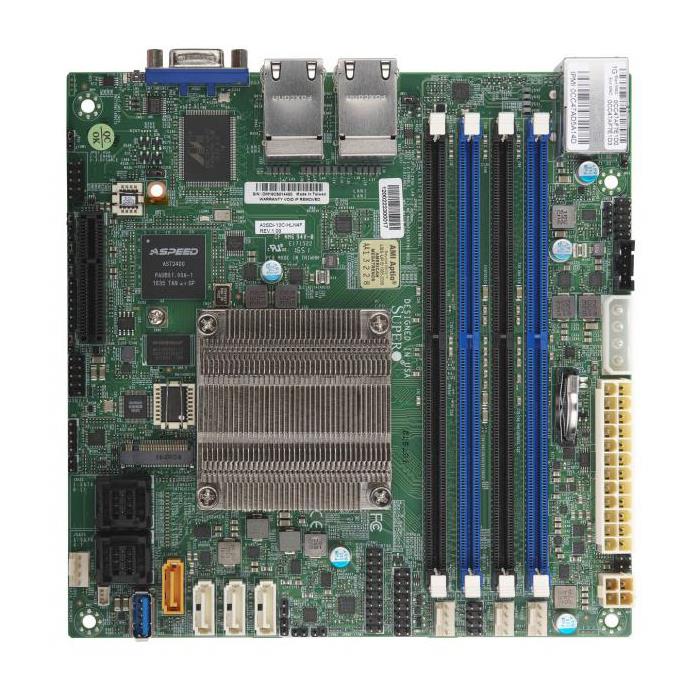

Supermicro A2SDI-12C-HLN4F-O Motherboard Intel Atom processor C3858 12-Core
4 Gigabit Ethernet ports
Intel Quick Assist Technology
Intel Atom C3858 processor with a 25W TDP
Supports up to 256GB ECC DDR4-2400MHz across 4 DIMM slots
Motherboard Intel Atom processor C3858 12-Core, Denverton SoC, up to 256GB Reg ECC DDR4-2400Mhz, 4 1GbE LAN, 12 SATA3, 1 VGA, 1 COM, TPM header - MBD-A2SDI-12C-HLN4F-O
1. Supports 12V DC power input
2. Intel Atom Processor C3858, Single Socket FCBGA1310 supported, CPU TDP support 25W
3. Intel Quick Assist Technology
4. Up to 256GB Registered ECC DDR4-2400MHz, Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots
5. Expansion slots: 1 PCIe 3.0 x4, M.2 Interface: PCIe 3.0 x2 and SATA M.2 Form Factor: 2242, 2280 M.2 Key: M-Key
6. 4 GbE LAN ports
7. 12 SATA3 (6 Gbps) ports
8. I/O: 1 VGA, 1 COM, TPM header
9. System on Chip
10. 1 USB 3.0 (Type-A) 4 USB 2.0 (2 rear, 2 via headers)
Extra Specifications for Supermicro A2SDI-12C-HLN4F-O Motherboard Intel Atom processor C3858 12-Core
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 256GB ECC RDIMM, DDR4-2400MHz; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz | ||
| Memory Type | 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Quad LAN with Intel® C3000 SoC, 1GbE | |
| SATA | SoC controller for 12 SATA3 (6 Gbps) ports | |
| IPMI | ASPEED AST2400 BMC | |
| Graphics | 1 ASPEED AST2400 BMC port(s) | |
| Input / Output | ||
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| USB | 4 USB 2.0 port(s) (2 rear; 2 via header) | |
| 1 USB 3.2 Gen1 port(s) (1 type A) | ||
| Video Output | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 header) | |
| DOM | 1 Super DOM (Disk on Module) ports | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | UEFI 2.4 | |
| SMBIOS 2.7.1 | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection | |
| Software | SuperDoctor® 5, NMI, KVM with dedicated LAN, IPMI2.0 , Watchdog | |
| System Management Software | SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support | |
| PC Health Monitoring | ||
| FAN | 4x 4-pin fan headers (up to 4 fans) | |
| Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control) | ||
| LED | UID/Remote UID | |
| Other Features | WOL, UID, System level control, RoHS, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Intel® QuickAssist Technology, Innovation Engine, 4-pin 12v DC power connector | |
| Voltage | VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V | |
| Temperature | CPU thermal trip support | |
| Product SKUs | ||
| Product SKUs | MBD-A2SDi-12C-HLN4F | |
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimension | 6.7" x 6.7" (17.02cm x 17.02cm) | |
| Processor | ||
| CPU | Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP | |
| Intel® Atom® Processor C3858 | ||
| Core | Up to 12 cores, 12 threads / 12MB Cache | |
| Note | ||
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x4 | |
| M.2 | Key: M-Key | |
| M.2 Interface: SATA; PCIe 3.0 x2 | ||
| Form Factor: 2280, 2242 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
