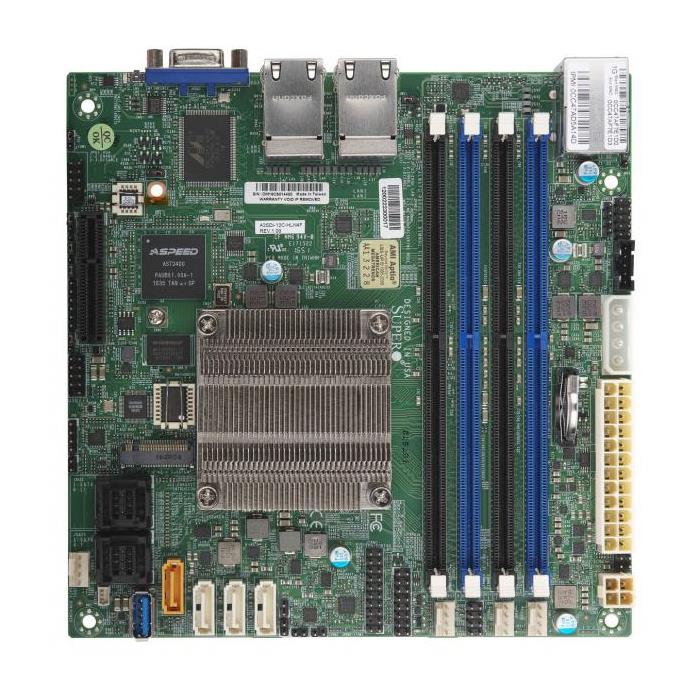

- Supermicro A2SDI-16C-HLN4F-B Motherboard Intel Atom processor C3955 16-Core - BULK
Supermicro A2SDI-16C-HLN4F-B Motherboard Intel Atom processor C3955 16-Core - BULK
• Add on card support: 1x PCI-E 3.0 x4
• Quad GbE ports; 5x USB ports; 1 VGA port
• Intel Atom Processor C3955. CPU TDP support 32W
• Up to 256GB Registered; DDR4-2400MHz; 4 DIMM slots
Motherboard Intel Atom processor C3955 16-Core, Denverton SoC, up to 256GB Reg ECC DDR4-2400Mhz, 4 1GbE LAN, 12 SATA3, 1 VGA, 1 COM, TPM header - MBD-A2SDI-16C-HLN4F-B
• System on Chip
• 4 GbE LAN ports
• 12 SATA3 (6 Gbps) ports
• Supports 12V DC power input
• I/O: 1 VGA, 1 COM, TPM header
• 1 USB 3.0 (Type-A), 4 USB 2.0 (2 rear, 2 via headers)
• Expansion slots: 1 PCI-E 3.0 x4, M.2 Interface: PCI-E 3.0 x2 and SATA, M.2 Form Factor: 2242, 2280, M.2 Key: M-Key
• Intel Atom Processor C3955, Single Socket FCBGA1310 supported, CPU TDP support 32W
• Up to 256GB Registered ECC DDR4-2400MHz, Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots
Extra Specifications for Supermicro A2SDI-16C-HLN4F-B Motherboard Intel Atom processor C3955 16-Core - BULK
| Main Specifications | ||
| Device Type | Motherboard | |
| Dimensions (WxDxH) | 6.7" x 6.7" (17.02cm x 17.02cm) | |
| Form Factor | Mini-ITX | |
| Processor | ||
| Cache | 16 cores, 16 threads / 16MB cache | |
| Compatible Processors | Intel Atom Processor C3955 | |
| Processor Sockets | Single Socket FCBGA1310 supported, CPU TDP support 32W | |
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | Up to 256GB Registered ECC RDIMM and DDR4-2400MHz | |
| Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots | ||
| Cache Memory | ||
| Memory Type | 2400/2133/1866/1600MHz | |
| Memory | ||
| Supply Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Video | Aspeed AST2400 BMC | |
| Network Controllers | Quad LAN with Intel C3000 SoC 1GbE | |
| TPM | TPM Header | |
| USB | 4 USB 2.0 ports (2 rear + 2 headers) | |
| 1 USB 3.0 ports ( + 1 Type A) | ||
| Input / Output | ||
| SATA | SoC controller for 12 SATA3 (6 Gbps) ports | |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| Serial Port / Headers | 1 COM Port (1 header) | |
| VGA | 1 VGA port | |
| Environmental Standards | ||
| Non-operating Relative Humidity | 10% ~ 95% (non-condensing) | |
| Non-operating Temperature | -40C - 85C (-40F - 185F) | |
| Environmental | ||
| Operating Relative Humidity | 10% ~ 85% (non-condensing) | |
| Environmental Parameters | ||
| Operating Temperature | 0C ~ 60C (32F ~ 140F) | |
| Temperature | CPU thermal trip support | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x4 | |
| M.2: Interface: PCI-E 3.0 x2 and SATA | ||
| M.2: Form Factor: M-Key 2242, 2280 | ||
| System BIOS | ||
| BIOS Features | UEFI 2.4 | |
| SMBIOS 2.7.1 | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| +12V DC Power Input | ||
| ATX Power connector | ||
| CPU thermal trip support for processor protection | ||
| Software | IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor 5, Watchdog | |
| PC Health Monitoring | ||
| FAN | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors | |
| LED | UID/Remote UID | |
| Other Features | 12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Innovation Engine, M.2 NGFF connector, RoHS, SDDC, System level control, UID, WOL | |
| Voltage | +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 4 -fan status, 4 fans with tachometer monitoring, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT | |
| Parts List | ||
| I/O Cables | 2x CBL-0044L | |
| I/O Shield | 1x MCP-260-00084-0N | |
| Motherboard | 1x MBD-A2SDi-16C-HLN4F | |
| Miscellaneous | ||
| Compatibility | SCE300, SC504-203B, SC505-203B | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
