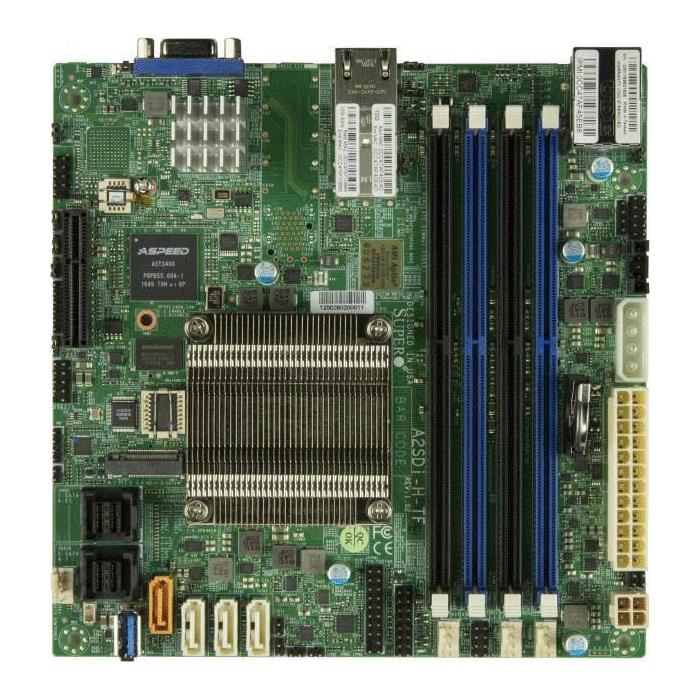

- Supermicro A2SDI-H-TF-O Mini-ITX Motherboard Intel Atom Processor C3758 1x VGA port SOC Controller Dual LAN With Intel C3000 SoC
Supermicro A2SDI-H-TF-O Mini-ITX Motherboard Intel Atom Processor C3758 1x VGA port SOC Controller Dual LAN With Intel C3000 SoC
Includes 12 SATA3 (6Gbps) ports via SoC controller
Powered by an Intel Atom C3758 8-core processor
Features dual 10GBase-T LAN ports for high-speed connectivity
Optimized for embedded systems, networking, and storage applications
Motherboard Intel Atom Processor C3758, 1 x VGA port SOC Controller, Dual LAN with Intel C3000 SoC - MBD-A2SDI-H-TF-O
1. 1 VGA port
2. Intel® Atom® Processor C3758., Single Socket FCBGA1310 supported, CPU TDP support 25W
3. Intel Quick Assist Technology
4. Up to 256GB Registered ECC RDIMM, DDR4-2400MHz Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
5. 1 PCIe 3.0 x4 M.2 Interface: PCIe 3.0 x2 and SATA M.2 Form Factor: 2242, 2280 M.2 Key: M-Key
6. SoC controller for 12 SATA3 (6 Gbps) ports; 4 SATA3 ports, 2 MiniSAS HD ports
7. Dual LAN with Intel® C3000 SoC 2 10GBaseT
8. System on Chip
9. Support 12V DC power
Extra Specifications for Supermicro A2SDI-H-TF-O Mini-ITX Motherboard Intel Atom Processor C3758 1x VGA port SOC Controller Dual LAN With Intel C3000 SoC
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB | |
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 4 DIMM slots | |
| Up to 256GB ECC RDIMM, DDR4-2400MHz; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz | ||
| Memory Type | 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered and / | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Graphics | 1 ASPEED AST2400 BMC port(s) | |
| Network Controllers | Dual LAN with Intel® C3000 SoC, 2 10GBaseT | |
| IPMI | ASPEED AST2400 BMC | |
| SATA | SoC controller for 12 SATA3 (6 Gbps) ports | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| DOM | 1 Super DOM (Disk on Module) ports | |
| SATA | 12 SATA3 (6Gbps) port(s) | |
| LAN | 2 RJ45 10GBase-T ports | |
| USB | 4 USB 2.0 port(s) (2 rear; 2 via header) | |
| 1 USB 3.2 Gen1 port(s) (1 type A) | ||
| Video Output | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 header) | |
| System BIOS | ||
| BIOS Features | UEFI 2.4 | |
| SMBIOS 2.7.1 | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection | |
| Software | SuperDoctor® 5, NMI, SUM , KVM with dedicated LAN, IPMI2.0 , Watchdog | |
| System Management Software | SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support | |
| PC Health Monitoring | ||
| FAN | 4x 4-pin fan headers (up to 4 fans) | |
| Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication, Support 3-pin fans (w/o speed control) | ||
| LED | UID/Remote UID | |
| Other Features | WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Innovation Engine, 4-pin 12v DC power connector | |
| Temperature | CPU thermal trip support | |
| Voltage | VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V, +12V, +1.8V, VCGI | |
| Product SKUs | ||
| Product SKUs | MBD-A2SDi-H-TF | |
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimension | 6.7" x 6.7" (17.02cm x 17.02cm) | |
| Processor | ||
| CPU | Intel® Atom® Processor C3758 | |
| Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP | ||
| Core | Up to 8 cores, 8 threads / 16MB Cache | |
| Note | ||
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x4 | |
| M.2 | Key: M-Key | |
| M.2 Interface: SATA; PCIe 3.0 x2 | ||
| Form Factor: 2280, 2242 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
