- Supermicro A2SDI-H-TF-O Motherboard Intel Atom Processor C3758, 1 x VGA port SOC Controller, Dual LAN with Intel C3000 SoC

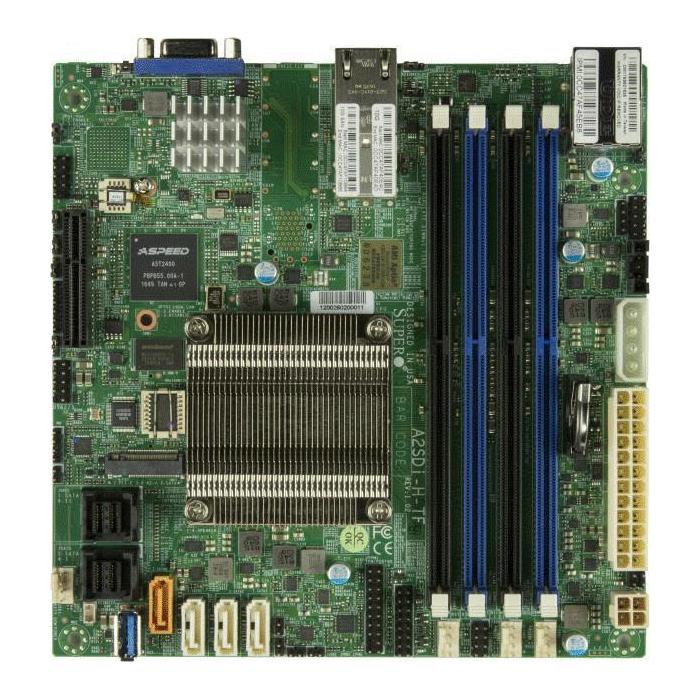

Supermicro A2SDI-H-TF-O Motherboard Intel Atom Processor C3758, 1 x VGA port SOC Controller, Dual LAN with Intel C3000 SoC
• Dual 10GBase-T ports; 1 PCI-E 3.0 x4
• SoC controller for 12 SATA3 (6 Gbps) ports
• Up to 256GB DDR4-2400MHz; in 4 DIMM slots
• Intel Atom Processor C3758. CPU TDP support 25W
Motherboard Intel Atom Processor C3758, 1 x VGA port SOC Controller, Dual LAN with Intel C3000 SoC - MBD-A2SDI-H-TF-O
• 1 VGA port
• System on Chip
• 1 PCI-E 3.0 x4
• M.2 Interface: PCI-E 3.0 x2 and SATA
• M.2 Form Factor: 2242, 2280
• M.2 Key: M-Key
• Dual LAN with Intel C3000 SoC 2 10GBaseT
• SoC controller for 12 SATA3 (6 Gbps) ports; 4 SATA3 ports, 2 MiniSAS HD ports
• Intel Atom Processor C3758. Single Socket FCBGA1310 supported, CPU TDP support 25W
• Up to 256GB Registered ECC RDIMM, DDR4-2400MHz Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Extra Specifications for Supermicro A2SDI-H-TF-O Motherboard Intel Atom Processor C3758, 1 x VGA port SOC Controller, Dual LAN with Intel C3000 SoC
| Main Specifications | ||
| Device Type | Motherboard | |
| Dimensions (WxDxH) | 6.7" x 6.7" (17.02cm x 17.02cm) | |
| Form Factor | Mini-ITX | |
| Processor | ||
| Cache | 8 cores, 8 threads / 16MB cache | |
| Compatible Processors | Intel Atom Processor C3758 | |
| Processor Sockets | Single Socket FCBGA1310 supported, CPU TDP support 25W | |
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB | |
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 4 DIMM slots, Up to 256GB ECC RDIMM, DDR4-2400MHz, Up to 64GB ECC/non-ECC UDIMM, DDR4-2400MHz | |
| Memory Type | 2400/2133/1866/1600MHz DDR4 ECC RDIMM and ECC/Non-ECC UDIMM | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Graphics | Aspeed AST2400 BMC | |
| Network Controllers | Dual LAN with Intel C3000 SoC 2 10GBaseT | |
| SATA/SAS | SoC controller for 12 SATA3 (6 Gbps) ports | |
| IPMI | Aspeed AST2400 BMC | |
| Input / Output | ||
| Serial Port / Headers | 1 COM Port (1 header) | |
| TPM | TPM Header | |
| USB(s) | 4 USB 2.0 port(s) (2 rear, 2 via header), 1 USB 3.2 Gen1 port(s) (1 type A) | |
| VGA | 1 VGA port | |
| DOM | 1 SuperDOM (Disk on Module) ports | |
| SATA | 12 SATA3 (6Gbps) port(s) | |
| LAN | 2 RJ45 10GBase-T ports | |
| Environmental | ||
| Operating Environment | Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range: 10% - 85% (non-condensing) | ||
| Non-Operating Relative Humidity Range: 10% - 95% (non-condensing) | ||
| Operating Temperature Range: 0°C - 60°C (32°F - 140°F) | ||
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x4 | |
| M.2 | Key: M-key | |
| M.2 Interface: SATA; PCI-E 3.0 x2 | ||
| Form Factor: 2280, 2242 | ||
| System BIOS | ||
| BIOS Features | UEFI 2.4, SMBIOS 2.7.1 | |
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection | |
| Software | IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor 5, Watchdog | |
| PC Health Monitoring | ||
| FAN | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors | |
| LED | UID/Remote UID | |
| Other Features | 12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Innovation Engine, RoHS, SDDC, System level control, UID, WOL | |
| Temperature | CPU thermal trip support | |
| Voltage | +1.8V, +12V, +5V, 1.05 (PCH), 1.2V (VDIMM), 4 -fan status, 4 fans with tachometer monitoring, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT, VCGI | |
| Parts List | ||
| I/O Cables | 1x CBL-0044L, 2x MCP-260-00098-0N, 4x CBL-SAST-0616 | |
| Motherboard | 1x MBD-A2SDi-H-TF | |
| Miscellaneous | ||
| Compatible Chassis | Chassis 1U: SCE300, SC504-203B, SC505-203B | |
| Optional Parts List | ||
| Optional I/O Shield | MCP-260-00099-0N, MCP-260-00100-0B | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Provider: | Supermicro |
| Phone No.: | 305-640-0300 |
| E-mail: | returnservices@wiredzone.com |
| URL: | Click here for Manufacturer Website |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
