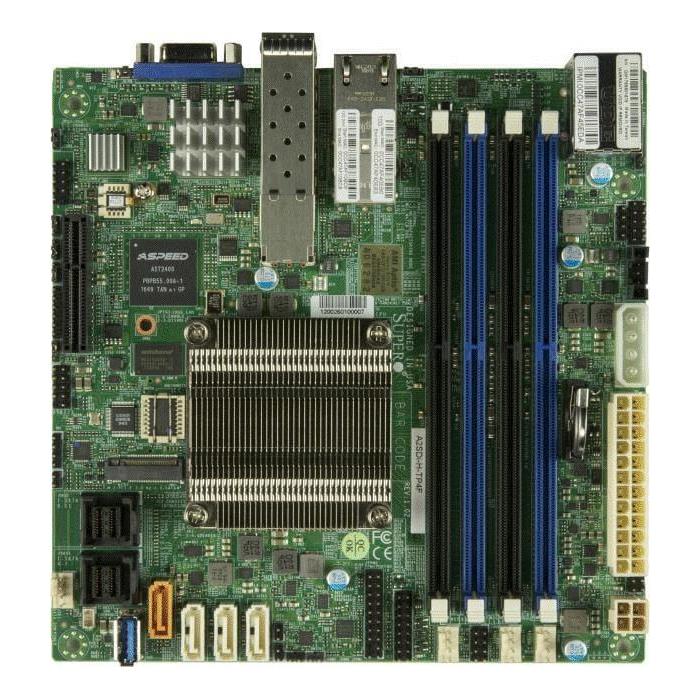

Supermicro A2SDI-H-TP4F-O Motherboard Intel Atom Processor C3958, 1 x VGA port SOC Controller, Quad LAN with Intel C3000 SoC, 2 10GBaseT

• Up to 64GB Unbuffered; in 4 DIMM slots
• SoC controller for 12 SATA3 (6 Gbps) ports
• 2x 10GBase-T ports and 2x 10G SFP+ LAN ports
• Intel Atom Processor C3958; 16 cores; 16 threads

Motherboard Intel Atom Processor C3958, 1 x VGA port SOC Controller, Quad LAN with Intel C3000 SoC, 2 10GBaseT - MBD-A2SDI-H-TP4F-O


    936.50936.50936.5USD

    936.50

    Option not available

    This combination does not exist.

    Add to Cart


    • 1 VGA port
    • System on Chip
    • 1 PCI-E 3.0 x4
    • M.2 Interface: PCI-E 3.0 x2 and SATA, M.2 Form Factor: 2242, 2280, M.2 Key: M-Key
    • Quad LAN with Intel C3000 SoC 2 10GBaseT and 2 10Gb SFP+
    • SoC controller for 12 SATA3 (6 Gbps) ports; 4 SATA3 ports, 2 MiniSAS HD ports
    • Intel Atom Processor C3958, Single Socket FCBGA1310 supported, CPU TDP support 31W
    • Up to 256GB Registered ECC RDIMM, DDR4-2400MHz, Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots

    Extra Specifications for Supermicro A2SDI-H-TP4F-O Motherboard Intel Atom Processor C3958, 1 x VGA port SOC Controller, Quad LAN with Intel C3000 SoC, 2 10GBaseT

    Main Specifications
    Device Type Intel Atom C3000 Motherboard
    Dimensions (WxDxH) 6.7" x 6.7" (17.02cm x 17.02cm)
    Form Factor Mini-ITX
    Processor
    Cache 16 cores, 16 threads / 16MB cache
    Compatible Processors Intel Atom Processor C3958
    Processor Sockets Single Socket FCBGA1310 supported, CPU TDP support 31W
    System Memory
    DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB
    Error Detection Corrects single-bit errors
    Memory Capacity Up to 256GB Registered ECC RDIMM, DDR4-2400MHz
      Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
    Memory Type 2400/2133/1866/1600MHz DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
    Memory Voltage 1.2V
    On-Board Devices
    Chipset System on Chip
    Graphics Aspeed AST2400 BMC
    IPMI ASPEED AST2400 BMC
    Network Controllers Quad LAN with Intel C3000 SoC
      2 10GBaseT and 2 10Gb SFP+
    SATA SoC controller for 12 SATA3 (6 Gbps) ports,
      4 SATA3 ports, 2 MiniSAS HD ports
    Input / Output
    LAN 2 RJ45 10GBase-T ports
      2 10G SFP+ LAN ports
    SATA 12 SATA3 (6Gbps) port
    Serial Port / Headers 1 COM Port (1 header)
    TPM TPM Header
    USB 4 USB 2.0 ports (2 rear + 2 headers)
      1 USB 3.0 ports ( + 1 Type A)
    VGA 1 VGA port
    Environmental Standards
    Non-operating Relative Humidity 10% ~ 95% (non-condensing)
    Non-operating Temperature -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity 10% ~ 85% (non-condensing)
    Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
    Expansion / Connectivity
    Expansion Slots Total (Free) PCI-E: 1 PCI-E 3.0 x4
      M.2: M.2 Interface: PCI-E 3.0 x2 and SATA
      M.2: Form Factor: M-Key 2242, 2280
    System BIOS
    BIOS Features UEFI 2.4, SMBIOS 2.7.1
    BIOS Type AMI UEFI
    Management
    Power Configurations ATX Power connector
      +12V DC Power Input
      CPU thermal trip support for processor protection
      Power-on mode for AC power recovery
    Software IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor 5, Watchdog
    PC Health Monitoring
    FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors
    LED UID/Remote UID
    Other Features 12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Innovation Engine, RoHS, SDDC, System level control, UID, WOL
    Temperature CPU thermal trip support
    Voltage +1.8V, +12V, +5V, 1.05 (PCH), 1.2V (VDIMM), 4 -fan status, 4 fans with tachometer monitoring, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT, VCGI
    Parts List
    I/O Cables 4x SATA Cables: CBL-0044L
      2x SATA Cables: CBL-SAST-0616
    I/O Shield 1x MCP-260-00098-0N
    Motherboard 1x MBD-A2SDi-H-TP4F
    QRG 1x Motherboard Quick Reference Guide
    NamePart NumberQuantityDescription

    Warranty:3 years labor, 1 year parts, 120 days advanced replacement (doa)
    Provider:Supermicro
    Phone No.:305-640-0300
    E-mail:returnservices@wiredzone.com
    URL:Click here for Manufacturer Website
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
