| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 4 DIMM slots |
| Up to 64GB Unbuffered ECC/non-ECC SODIMM, DDR4-2400MHz |
| Memory Type | 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 SODIMM Unbuffered |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Quad LAN with Intel® Ethernet Controller I350-AM4, 1GbE |
| Quad LAN with Intel® C3000 SoC, 2 10GBaseT, 2 10Gb SFP+ |
| SATA | SoC controller for 4 SATA3 (6 Gbps) ports |
| IPMI | ASPEED AST2400 BMC |
| Graphics | 1 ASPEED AST2400 BMC port(s) |
| Input / Output |
| SATA | 4 SATA3 (6Gbps) port(s) |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports |
| 2 RJ45 10GBase-T ports |
| 2 10G SFP+ LAN ports |
| USB | 2 USB 3.0 port(s) (2 rear) |
| 4 USB 2.0 port(s) (4 via header) |
| Video Output | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 header) |
| DOM | 1 Super DOM (Disk on Module) ports |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Features | UEFI 2.4 |
| SMBIOS 2.7.1 |
| BIOS Type | AMI UEFI |
| Management |
| Power Configurations | Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection |
| Software | SuperDoctor® 5, NMI, SUM , KVM with dedicated LAN, IPMI2.0 , Watchdog |
| System Management Software | SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| PC Health Monitoring |
| FAN | 4x 4-pin fan headers (up to 4 fans) |
| Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication, Support 3-pin fans (w/o speed control) |
| LED | UID/Remote UID |
| Other Features | WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Innovation Engine, 4-pin 12v DC power connector |
| Voltage | VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V, +12V, +1.8V, VCGI |
| Temperature | CPU thermal trip support |
| Product SKUs |

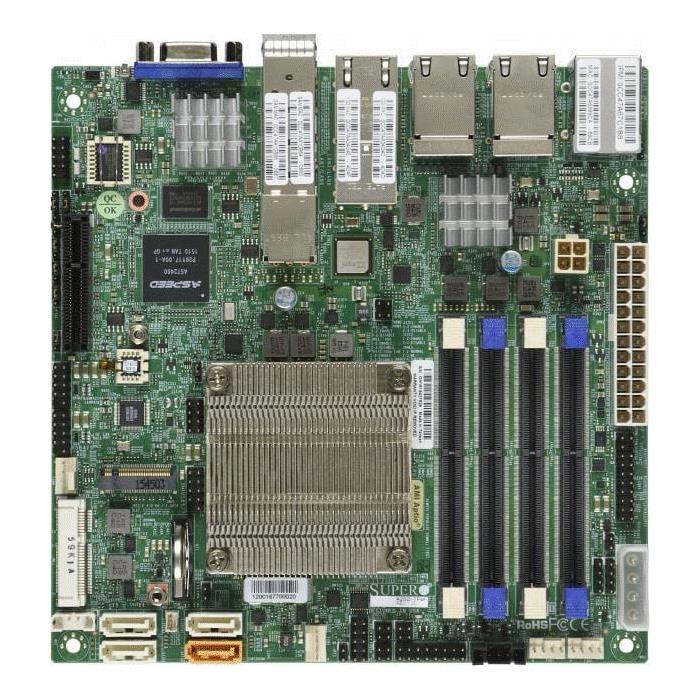

| Product SKUs | MBD-A2SDi-TP8F |
| Physical Stats |
| Form Factor | Mini-ITX |
| Dimension | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor |
| CPU | Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP |
| Intel® Atom® Processor C3858 |
| Core | Up to 12 cores, 12 threads / 12MB Cache |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x4 |
| 1 miniPCIe with mSATA supports (half card only) |
| M.2 | Key: M-Key |
| Form Factor: 2242, 2280 |
| M.2 Interface: PCIe 3.0 x4; SATA |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
