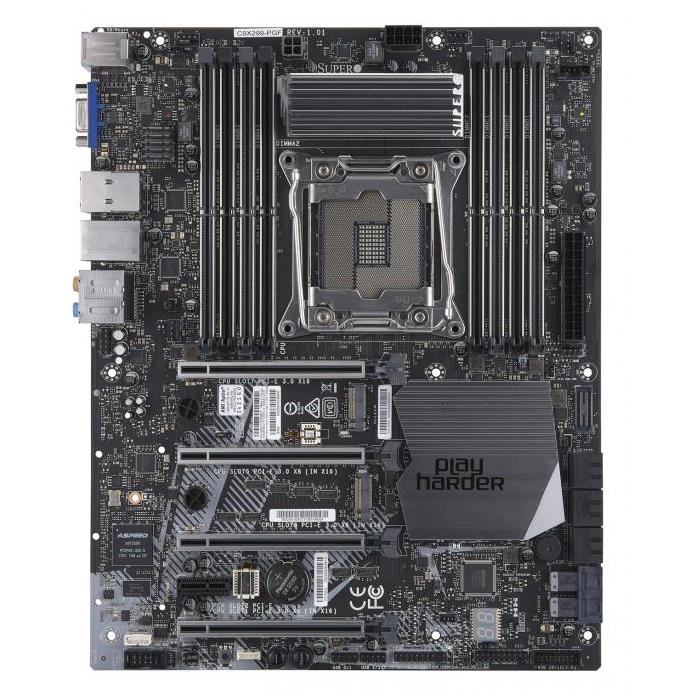

Supermicro C9X299-PGF-B Motherboard Intel Core i9/i7/i5 X-series Processor Intel X299 - BULK
• ALC 1220 High Definition Audio
• Controller 6 SATA3 (6Gbps); RAID 0; 1; 5; 10
• 2x GbE LAN ports; M-Key for SSD and Optane
• Intel X299 Chipset; ATX (Professional Gaming)
Motherboard Intel Core i9/i7/i5 X-series Processor Intel X299, up to 128GB Unbuffered non-ECC UDIMM DDR4-2666MHz, 4 PCI-E 3.0 x16 Or 1 PCI-E 3.0 x1, PCI-E 3.0 x4, 1 VGA port, 6 SATA3 (6 Gbps) ports , 1 x 1Gbe LAN + 1 x 5GbE Aquantia 5G chip AQC108 - MBD-C9X299-PGF-B (BULK)
• Intel X299
• 1 VGA port
• 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Single LAN with Aquantia 5G LAN chip AQC108
• Single LAN with Intel Ethernet Controller I210-AT
• 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 8 DIMM slots
• M.2 Interface: PCI-E 3.0 x4, M.2 Form Factor: 2280, 22110, M.2 Key: M-Key (RAID 0,1 support), U.2 Interface: PCI-E 3.0 x4
• 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x1 - 4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16 or NA/4/8/16(Skylake-X 28 Lanes) or NA/4/4/8(Kabylake-X), 1xPCI-E3.0x1 slots
• Intel Core i5 X-series Processor, Intel Core i7 X-series Processor, Intel Core i9 Extreme X-series Processor, Intel Core i9 X-series Processor, CPU TDP support 165W
Extra Specifications for Supermicro C9X299-PGF-B Motherboard Intel Core i9/i7/i5 X-series Processor Intel X299 - BULK
| Main Specifications | ||
| Device Type | Motherboard | |
| Dimensions (WxDxH) | 12" x 9.6" (30.48cm x 24.38cm) | |
| Form Factor | ATX | |
| Processor | ||
| Compatible processor | Intel Core i5 X-series Processor, Intel Core i7 X-series Processor, Intel Core i9 Extreme X-series Processor, Intel Core i9 X-series Processor, CPU TDP support 165W | |
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB | |
| Memory Capacity | 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 8 DIMM slots | |
| Cache Memory | ||
| Memory Type | 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM | |
| Memory | ||
| Supply Voltage | 1.2V | |
| Input / Output | ||
| Audio | ALC 1220 HD Audio | |
| SATA | 6 SATA3 (6 Gbps) ports, RAID 0,1,5,10 | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| Serial Port / Headers | 1 COM Port (1 header) | |
| VGA | 1 VGA port | |
| On-Board Devices | ||
| Chipset | Intel X299 | |
| IPMI | ASPEED AST2500 | |
| Network Controllers | Single LAN with Intel Ethernet Controller I210-AT | |
| Single LAN with Aquantia 5G LAN chip AQC108 | ||
| USB | 4 USB 2.0 ports (4 headers) | |
| 4 USB 3.0 ports (2 rear + 2 headers) | ||
| 4 USB 3.1 ports ( + 3 Type A + 1 Type C) | ||
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x1 | |
| M.2: M.2 Interface: PCI-E 3.0 x4 | ||
| 4 PCI-E 3.0 x16 | ||
| 4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16 or NA/4/8/16(Skylake-X 28 Lanes) or NA/4/4/8(Kabylake-X), 1xPCI-E3.0x1 slots | ||
| M.2: Form Factor: M-Key 2280, 22110 (RAID 0,1 support) | ||
| M.2: M-Key for SSD and Optane | ||
| System BIOS | ||
| BIOS Type | UEFI 128Mb | |
| Management | ||
| Software | SuperDoctor 5, Watchdog | |
| PC Health Monitoring | ||
| FAN | 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors | |
| LED | N/A | |
| Other Features | ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL | |
| Voltage | +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT | |
| Parts List | ||
| I/O Cables | 2x CBL-0044L | |
| I/O Shield | 1x MCP-260-00117-0N | |
| Motherboard | 1x MBD-C9X299-PGF | |
| Miscellaneous | ||
| Compatibility | Chassis Mid/Mini-Tower: SCGS5A-753K, SCGS5A-753R, SC732D3-903B, SC732D3-1200B | |
| Chassis 4U/Tower: SC743AC-668B, SC743AC-1200B-SQ | ||
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
