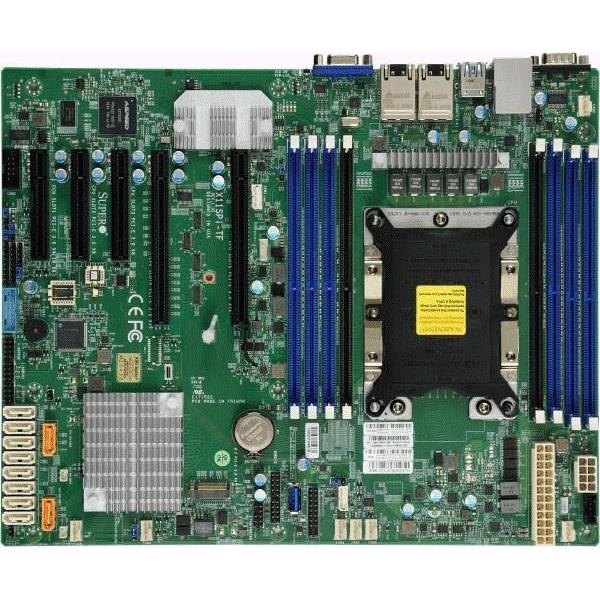

Supermicro X11SPI-TF-O Motherboard ATX Single Socket LGA-3647 (Socket P) Intel Xeon Scalable Processors Including 2nd Generation Models
Offers Intel C622 controller for 10 SATA3 ports RAID
Supports Intel Xeon Scalable 2nd Generation Processors
Up to 2TB DDR4-2933MHz LRDIMM/RDIMM in 8 DIMM slots
On-Board 2 RJ45 10GBase-T ports, 2 SATA DOM, 1 TPM Header
Motherboard ATX, Support Intel Xeon Scalable Processors 2nd Generation and Intel Xeon Scalable Processors (Up to 28-Core). Intel C622 Up to 2TB ECC 3DS LRDIMM/RDIMM Up to DDR4-2933MHz, 8x DIMM slots, 2 x 10GbE LAN ports, 10 x SATA3 (6Gbps) via C622, 11 x USB - MBD-X11SPI-TF-O
1. 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP
2. Intel® C622
3. Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
4. Expansion slots: 1 PCIe 3.0 x16, 1 PCIe 3.0 x16 (x16 || x8), 1 PCIe 3.0 x8 (x0 || x8), 1 PCIe 3.0 x8, 1 PCIe 3.0 x4 (in x8)
5. M.2 NGFF connector M.2 Interface: PCIe 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-Key
6. 2 10GbE LAN ports
7. 10 SATA3 (6Gbps) via C622
8. 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
9. I/O: 1 VGA, 2 COM, TPM header
Extra Specifications for Supermicro X11SPI-TF-O Motherboard ATX Single Socket LGA-3647 (Socket P) Intel Xeon Scalable Processors Including 2nd Generation Models
| System Memory | ||
| DIMM Sizes | RDIMM: 8GB, 16GB, 32GB, 64GB | |
| LRDIMM: 32GB, 64GB, 128GB | ||
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 8 DIMM slots | |
| Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz | ||
| Memory Type | 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | Intel® C622 | |
| IPMI | ASPEED AST2500 | |
| Network Controllers | Dual LAN with 10GBase-T with Intel® X722 + X557 | |
| SATA | Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Graphics | 1 ASPEED AST2500 BMC port(s) | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) port(s) | |
| LAN | 2 RJ45 10GBase-T ports | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 3 USB 3 port(s) (1 Type A; 2 via header) | ||
| 6 USB 2.0 port(s) (4 via header; 2 rear) | ||
| Video Output | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) | |
| DOM | 2 SATA DOM (Disk on Module) power connector support | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | ACPI 6.0 | |
| RTC (Real Time Clock) Wakeup | ||
| SMBIOS 3.0 or later | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Software | SuperDoctor® 5, NMI, SUM , KVM with dedicated LAN, SPM , Intel® Node Manager, IPMI2.0 , Watchdog | |
| PC Health Monitoring | ||
| FAN | Fan speed control | |
| PWM fan speed control | ||
| System level control | ||
| 7x 4-pin fan headers (up to 7 fans) | ||
| Overheat LED indication | ||
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Suspend static indicator LED | ||
| Other Features | WOL, UID, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management | |
| Voltage | VBAT, Supports system management utility, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status | |
| Temperature | CPU thermal trip support | |
| PECI | ||
| Product SKUs | ||
| Product SKUs | MBD-X11SPI-TF | |
| Physical Stats | ||
| Form Factor | ATX | |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) | |
| Processor | ||
| CPU | 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors | |
| Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP | ||
| Core | Up to 28 cores | |
| Note | BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x8, | |
| 1 PCIe 3.0 x4 (in x8 slot) | ||
| 1 PCIe 3.0 x16, | ||
| 1 PCIe 3.0 x16 (x16 or x8 ), | ||
| 1 PCIe 3.0 x8 (x0 or x8 ), | ||
| M.2 | Key: M-Key | |
| Form Factor: 2280, 22110 | ||
| M.2 Interface: PCIe 3.0 x4; SATA | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
