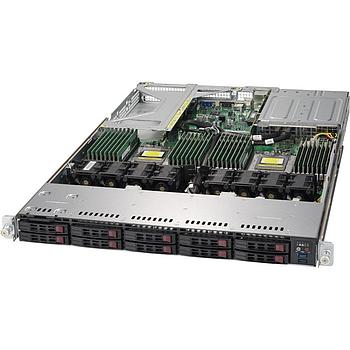

Supermicro AS-1123US-TR4 1U Barebone Dual AMD Processor

• Ultra 1U 10x 2.5 hot-swap SATA3
• Quad GbE ports; IPMI w/ dedicated LAN
• Supports Dual AMD EPYC 7000 Series Processors
• Up to 4TB ECC Registered; DDR4-2666MHz in 32 DIMM

Barebone 1U Rackmount for Dual AMD EPYC 7000, up to 4TB DDR4 Reg ECC 2666MHz memory in 32 DIMM slots, 10 Hot-Swap 2.5in drive bays with support for 10 SATA3 by default or 8 SATA3 + 2 NVMe (optional) or 8 SAS3 + 2 SATA3 (SAS Add-on card is optional), Quad Gigabit LAN ports, IPMI 2.0 + KVM, Redundant 1000W Power Supplies (CSE-819UTS-R1K02P-T + MBD-H11DSU-iN) - Black



    Option not available


    This combination does not exist.

    Add to Cart

    • Dual AMD EPYC 7000-Series Processors
    • Quad Gigabit LAN ports via Intel i350AM4
    • Integrated IPMI 2.0 + KVM with dedicated LAN
    • 1000W Redundant (1+1) Power Supplies Titanium Level (96%+)
    • Up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
    • 2 PCI-E x16 (FH/HL 9.5) slots, 2 PCI-E x8 slots (1LP, 1 internal LP)
    • Drive Bays: 10 hot-swap 2.5 SATA3 by default or 8 SATA3 + 2 NVMe (optional) or 8 SAS3 ports + 2 SATA3  (SAS Add-on card is optional)

    Extra Specifications for Supermicro AS-1123US-TR4 1U Barebone Dual AMD Processor

    Main Specifications
    Built-in Devices H11DSU-iN
    Device Type A+ Server
    Dimensions (WxDxH) Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 27.82" (707mm)
    Enclosure Color Black
    Form Factor 1U - CSE-119UTS-R1K02P-T
    Weight Net Weight: 26 lbs (11.8 kg) - Gross Weight: 41 lbs (18.6 g)
    Compatible Processors Dual AMD EPYC™ 7000-series Processors
    Socket Socket SP3
    System Memory
    DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
    Error Detection Corrects single-bit errors
      Detects double-bit errors (using ECC memory)
    Memory Capacity 32 DIMM sockets
      Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
      8-channel memory bus
    Memory Type DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
    Memory Voltage 1.2V
    On-Board Devices
    Chipset System on Chip (SoC)
    Input / Output
    LAN Quad Gigabit LAN ports
      1 RJ45 Dedicated IPMI LAN port
    NVMe 2 NVMe support with optional cables
    Others 1 COM port (rear)
      2 SATA DOM power connector
      TPM 1.2 header
    SAS 8 SAS3 ports support via optional Add-on Card
    SATA 10 SATA3 (6 Gbps) ports
    USB 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
    VGA 1 VGA port
    Front Panel
    Buttons Power On/Off button, System Reset button
    LEDs Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED / Fan fail LED / UID LED
    System BIOS
    BIOS Features Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 5.1, USB Keyboard Support, SMBIOS 3.1.1
    BIOS Type AMI 128Mb SPI Flash EEPROM
    PC Health Monitoring
    CPU Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
      CPU switching voltage regulator
    FAN Up to 8-fan status tachometer monitoring
      Up to eight 4-pin fan headers
      Status monitor for speed control
      Pulse Width Modulated (PWM) fan connectors
    LED CPU / System Overheat LED
    Other Features Chassis Intrusion Detection
      Chassis Intrusion Header
    Temperature Monitoring for CPU and chassis environment
      CPU Thermal Trip Support
      Thermal control for 8x Fan connectors
      I2C Temperature Sensing Logic
    Expansion / Connectivity
    Expansion Slots Total (Free) 2 PCI-E x16 (FH/HL 9.5") slots
      2 PCI-E x8 (LP) slot (1 LP, 1 internal LP)
      (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
    SAS / SATA Backplane
    SAS / SATA Backplane Supports 10 SATA3 or 8 NVMe + 2NVMe or 8 SAS3 + 2 SATA3 HDD
    Drive Bays
    Hot-swap 10 2.5" hot-swap SATA3 or 8 SATA3 + 2 NVMe drive bays (optional)
    System Cooling
    Air Shroud Air Shroud
    Fans 8 heavy-duty PWM fans with optimal fan speed control
    Power Supply
    Certification 80PLUS Titanium Level
    Power Supply 1000W Redundant Power Supplies with PMBus
    Operating Environment / Compliance
    RoHS RoHS Compliant
    Environmental Specifications
    Non-operating Relative Humidity 5% to 95% (non-condensing)
    Non-operating Temperature -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity 8% to 90% (non-condensing)
    Operating Temperature 10°C to 35°C (50°F to 95°F)
    Parts List - (Items Included)
    Add-on Module 1x AOC-UR-I4G
    Air Shroud 1x MCP-310-81914-0B
    Backplane 1x BPN-SAS3-116A-N2
    Cables 2x CBL-0481L, 1x CBL-SAST-0701, 1x CBL-CDAT-0841, 1x CBL-PWEX-0653, 1x CBL-PWEX-0673, 1x CBL-SAST-0655
    Heatsink / Retention 2x SNK-P0062P
    Motherboard / Chassis 1x MBD-H11DSU-iN / 1x CSE-119UTS-R1K02P-T
    Riser Card 1x RSC-R1UW-2E16, 1x RSC-R1UW-E8R
    Software 1x SFT-OOB-LIC
    Warranty:3 years labor, 1 year parts, 1 year advanced replacement (DOA)
    Phone No.:305-640-0300
    URL:Click here for Manufacturer Website
    Coverage:Replacement or Repair
    Average Service Time:Overnight Replacement for 1 year, 2 weeks afterwards
